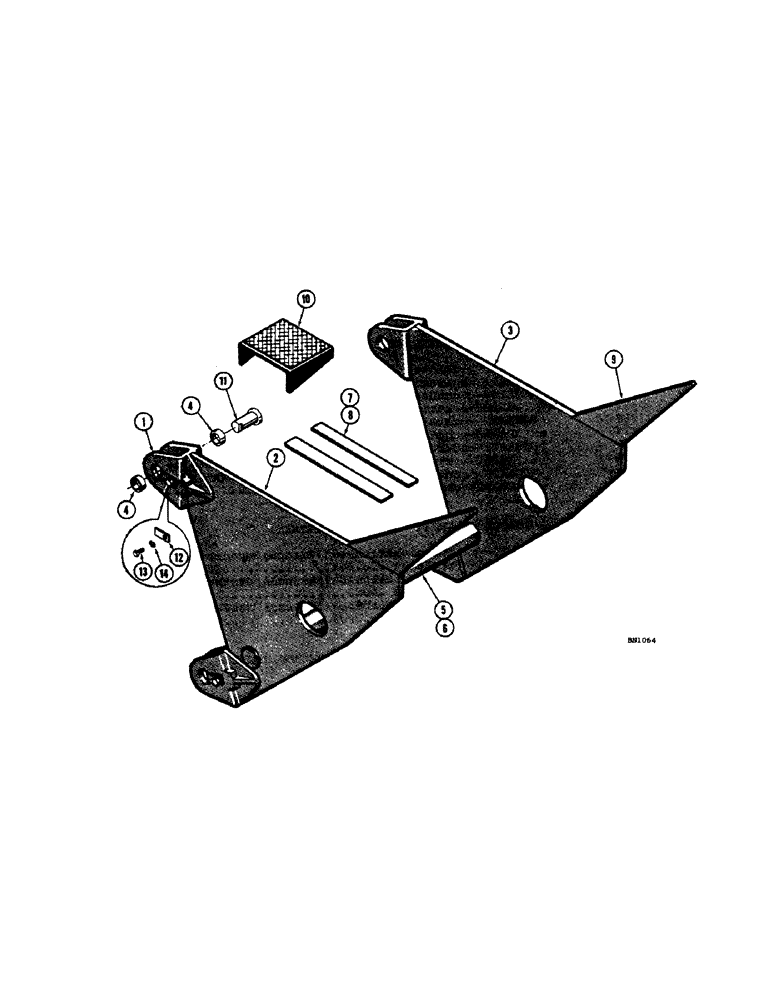

Запчасти Case 32 (14) - LOADER MODIFICATION PARTS

1

A19285

BRACKET - backhoe mounting (All)

4шт.

2

A19282

PLATE - backhoe mounting, R.H. (All)

1шт.

3

A19283

PLATE - backhoe mounting, L.H. (All)

1шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex. (1/2" - 13 NC x 1-3/4") Not shown

4шт.

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC) Not shown

4шт.

92-8

LOCK WASHER,1/2"

Not shown 1/2"

4шт.

4

A19288

BUSHING

- backhoe mounting bracket (All)

8шт.

5

A19287

SHAFT - backhoe mounting plate (W9B, W10, W9A)

1шт.

6

A19474

SHAFT - backhoe mounting plate (W7)

1шт.

7

A19286

BAR - side plate (W9B, W10, W9A)

2шт.

8

A19473

BAR - side plate (W7)

2шт.

9

A19470

GUSSET - side plate bar (W7, W9A)

2шт.

10

A19292

STEP - backhoe (To L.H. mounting plate) (W9A)

1шт.

11

A19313

AXLE PIN

PIN - backhoe mounting

4шт.

12

A13353

LOCK

- backhoe mounting pin

4шт.

13

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex. (1/2" - 13 NC x 3/4"

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.
