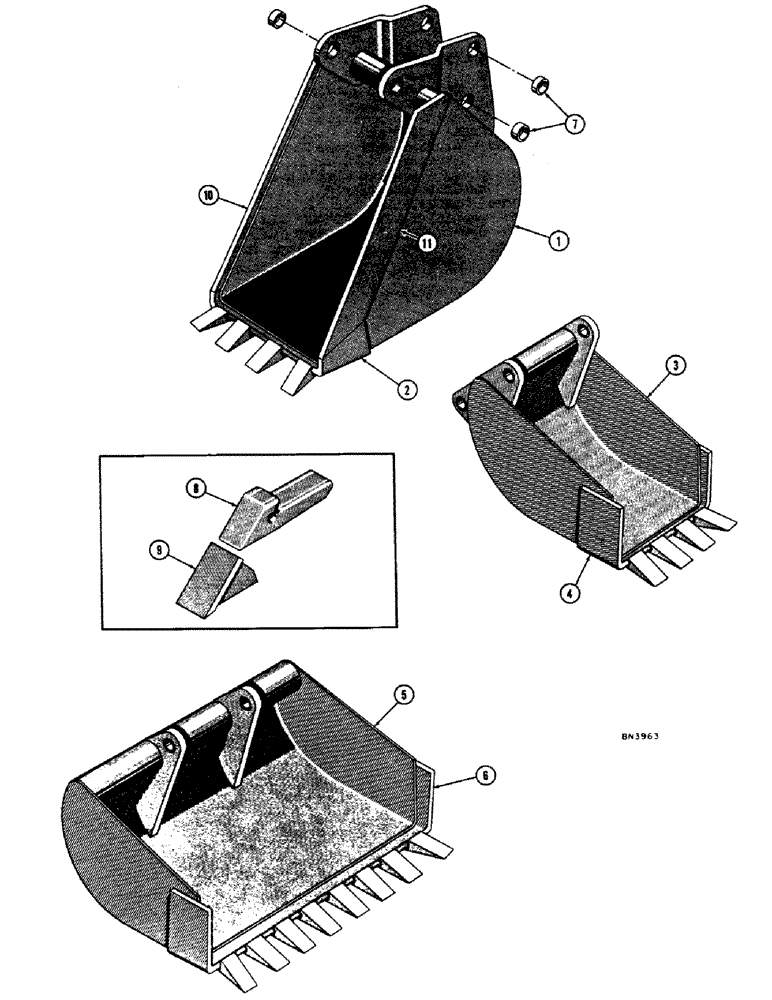

Запчасти Case 32 (12) - BACKHOE BUCKETS, OPTIONAL EQUIPMENT, TRENCHING BUCKETS, MACHINERY ITEMS

1

D30907

BUCKET - backhoe, trenching (12 inch) machinery item

1шт.

2

D23107

BLADE - cutting, center

1шт.

1

D30909

BUCKET - backhoe, trenching (18 inch) machinery item

1шт.

2

D23226

BLADE - cutting, center

1шт.

1

D30910

BUCKET - backhoe, trenching (24 inch) machinery item

1шт.

2

35277

KNIFE

BLADE - cutting, center

1шт.

1

D30912

BUCKET - backhoe, trenching (30 inch) machinery item

1шт.

2

35294

BLADE - cutting, center

1шт.

1

D30914

BUCKET - backhoe, trenching (36 inch) machinery item

1шт.

2

D29121

PLUG

BLADE - cutting, center

1шт.

3

D30906

BUCKET - backhoe, bellhole (12 inch) machinery item

1шт.

4

D23107

BLADE - cutting

1шт.

3

D30908

BUCKET - backhoe, bellhole (16 inch) machinery item

1шт.

4

37696

BLADE - cutting

1шт.

3

D30911

BUCKET - backhoe, bellhole (30 inch) machinery item

1шт.

4

37448

BLADE - cutting

1шт.

5

D30913

BUCKET - backhoe, combination bellhole and graveyard (36 inch) machinery item

1шт.

6

D20453

BLADE - cutting, combination bellhole and gravyard bucket (machinery itme)

1шт.

7

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- bucket, parts for buckets

4-6шт.

8

D26368

SUPPORT

SHANK - tooth, parts for buckets

3-8шт.

9

D27748

TOOTH

POINT - tooth, parts for buckets

3-8шт.

10

D21605

EDGE, CUTTING

BLADE - cutting, side (L.H.) all trenching buckets except D30907 buckets except D30907 bucket (See D29423), parts for buckets

1шт.

10

D29423

EDGE, CUTTING

BLADE - cutting, side (L.H.) D30907 bucket only, parts for buckets

1шт.

11

D21606

EDGE, CUTTING

BLADE - cutting, side (R.H.) all trenching buckets except D30907 bucket (See D29424), parts for buckets

1шт.

11

D29424

EDGE, CUTTING

BLADE - cutting, side (R.H.) D30907 bucket only, parts for buckets

1шт.
