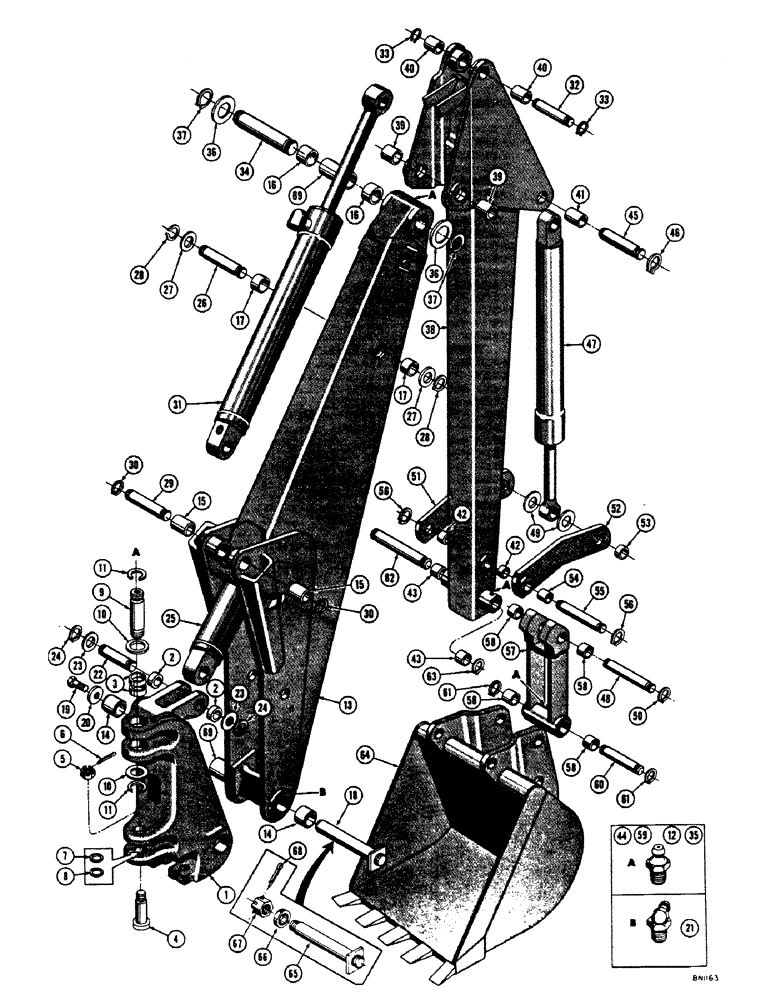

Запчасти Case 32 (08) - TOWER, BOOM, DIPPER ARM, AND BUCKETS

1

D30748

LATHE

TOWER - swing

1шт.

2

D25000

BUSHING

- boom, Serial Range: cylinder-tower

2шт.

3

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- swing tower to mounting frame

2шт.

4

D30760

STEP BOLT

BOLT - mounting, swing tower to mounting frame

1шт.

5

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - slotted shear hex. (1-1/2" - 12 NF)

1шт.

6

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

7

D23907

SPACER

- bearing, 5/16" thick

1шт.

8

D26991

BEARING

SPACER - bearing, 1/4" thick

1шт.

9

D30763

PIN

- swing tower to mounting frame, upper

1шт.

10

D25509

WASHER

- D30763 pin (2-1/64" I.D. x 3" O.D. x 7/64" thick)

2шт.

11

D26919

SNAP RING,#200, Ext

Ring, Snap, , D30763 pin #200, Ext

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

13

D30840

BOOM - backhoe

1шт.

14

36121

BUSHING

- boom at swing tower

2шт.

15

D25029

BUSHING

- boom at crowd cylinder

2шт.

16

36121

BUSHING

- boom at dipper arm

2шт.

17

D25258

BUSHING

- boom at boom cylinder

2шт.

18

D30758

PIN

- pivot, tower to boom (Used before backhoe serial no. 4082790) see D32337

1шт.

19

113-900

BOLT,Locking, 1" - 8 x 2", Gr 5

- Nylock, self-locking (1: - 8 NC x 2") used before backhoe serial no. 4082790

1шт.

20

D25991

WASHER - 113-900 bolt (1-1/32" I.D. x 2-1/2" O.D. x 1/2" thick) used before backhoe serial no. 4082790

1шт.

21

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

22

D23523

PIN

- boom cylinder to swing tower

1шт.

23

195-2165

WASHER,1 13/16" x 2 3/4" x .134"

- D23523 pin (1-13/16" I.D. x 1-3/4" O.D. x 9/64" thick)

2шт.

24

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23523 pin #175, Ext

3шт.

25

D27751

CYLINDER ASSY.

CYLINDER - boom, hydraulic, See Figure 42 for breakdown

1шт.

26

D23522

AXLE PIN

PIN - boom, Serial Range: cylinder-boom

1шт.

27

195-2165

WASHER,1 13/16" x 2 3/4" x .134"

- D23522 pin (1-13/16" I.D. x 2-3/4" O.D. x 9/64" thick)

2шт.

28

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23522 pin #175, Ext

2шт.

29

D23521

AXLE PIN

PIN - crowd, Serial Range: cylinder-boom

1шт.

30

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23521 pin #175, Ext

2шт.

31

D27752

CYLINDER ASSY.

CYLINDER - crowd, hydraulic, See Figure 42 for breakdown

1шт.

32

D23441

AXLE PIN

PIN - crowd cylinder to dipper arm

1шт.

33

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23441 pin #175, Ext

2шт.

34

D23517

PIN

- boom to dipper arm

1шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

36

D25509

WASHER

- D23517 pin (2-1/64" I.D. x 3" O.D. x 7/64" thick)

2шт.

37

D26919

SNAP RING,#200, Ext

Ring, Snap, , D23517 pin #200, Ext

2шт.

38

D30632

ARM - dipper

1шт.

39

D23203

BUSHING

- dipper arm at boom

2шт.

40

D25029

BUSHING

- dipper arm at crowd cylinder

2шт.

41

D25029

BUSHING

- dipper arm at bucket cylinder

2шт.

42

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- dipper arm at bucket linkage

2шт.

43

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- dipper arm at bucket

2шт.

44

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

45

D23441

AXLE PIN

PIN - bucket cylinder to dipper arm

1шт.

46

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23441 pin #175, Ext

2шт.

47

D30769

HYDRAULIC CYLINDER

CYLINDER - bucket, hydraulic, See Figure 44 for breakdown

1шт.

48

D30759

PIN

- bucket cylinder to bucket link

1шт.

49

D30042

WASHER

- D30759 pin (1-9/16" I.D. x 3" O.D. x 3/16" thick)

2шт.

50

D26918

SNAP RING,#125, Ext

Ring, Snap, , D30759 pin #125, Ext

2шт.

51

D30754

LINK - bucket, R.H.

1шт.

52

D30755

DRAG LINK

LINK - bucket, L.H.

1шт.

53

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- bucket link at cylinder

2шт.

54

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- bucket link at dipper arm

2шт.

55

D30759

PIN

- bucket link to dipper arm

1шт.

56

D26918

SNAP RING,#125, Ext

Ring, Snap, , D30759 pin #125, Ext

2шт.

57

D29991

X

LINK - dump, bucket

1шт.

58

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- dump link

4шт.

59

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

60

D30898

PIN

- pivot, dump, Serial Range: link-bucket

1шт.

61

D25279

SNAP RING,M35, Int

- D30898 pin

2шт.

62

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

PIN - bucket at dipper arm

1шт.

63

D25279

SNAP RING,M35, Int

- 30899 pin

2шт.

64

D30910

BUCKET - backhoe, See Figure 12 for breakdown and other buckets

1шт.

65

D32337

PIN

- pivot, tower to boom (Used on backhoe serial no. 4082790 and after)

1шт.

66

D32338

WASHER

- D32337 pin

1шт.

67

25-2420

X

NUT - castle (1-1/4" - 7 NC

1шт.

68

132-80

HARDWARE

PIN - cotter (5/32" x 2-1/2")

1шт.

69

D33184

SPACER

- top and bottom of boom, between bushings (If used)

2шт.
