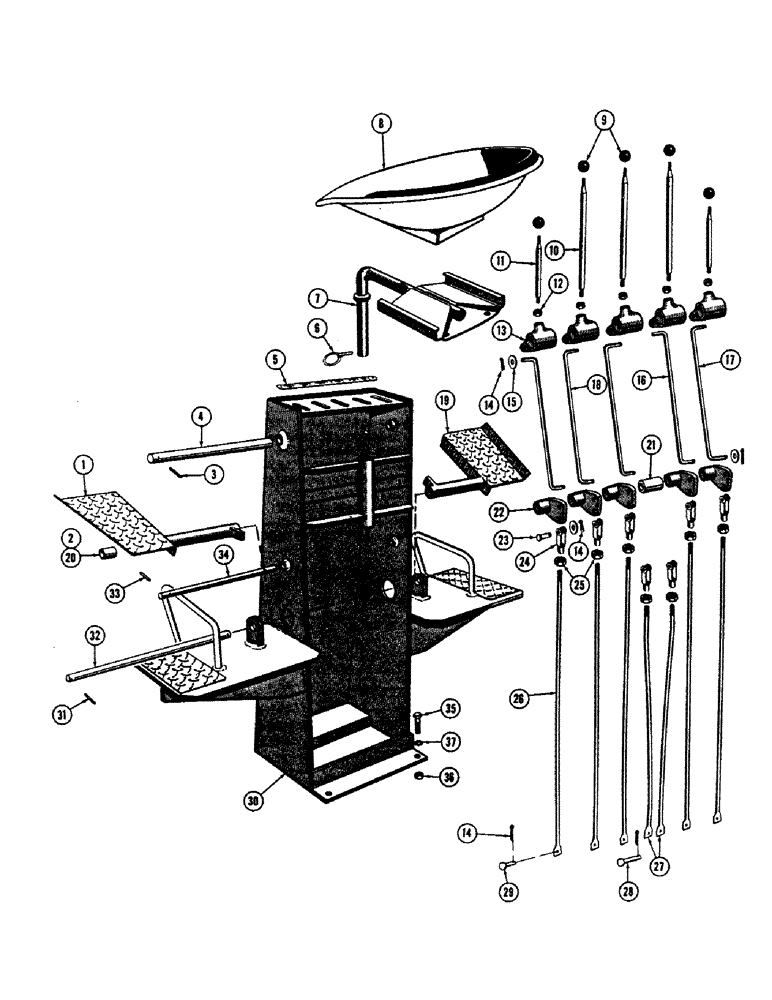

Запчасти Case 32 (06) - BACKHOE CONTROL LEVERS AND LINKAGE

1

D30710

PEDAL - L.H.

1шт.

2

D30706

BUSHING

- swing pedal

2шт.

3

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

4

A19404

SHAFT - control levers

1шт.

5

A19314

PLATE - backhoe panel

1шт.

6

SV2433

X

PIN - seat lock

1шт.

7

A19412

SUPPORT - seat

1шт.

8

A19411

SEAT - assembly

1шт.

9

70213

KNOB

- control levers

5шт.

10

A19400

LEVER - backhoe control, long

3шт.

11

A19401

LEVER - backhoe control, short

2шт.

12

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

5шт.

13

A19399

HUB - backhoe control lever

5шт.

14

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

23шт.

15

195-25

WASHER,3/8"

- plain, SAE () 3/8"

10шт.

16

A19403

ROD - boom and left stabilizer

2шт.

17

A19402

ROD - right stabilizer and dipper

2шт.

18

A19405

ROD - bucket

1шт.

19

D30711

PEDAL - R.H.

1шт.

20

D30706

BUSHING

- swing pedal

2шт.

21

A19410

BUSHING

SPACER - relay link

1шт.

22

A19409

LINK - relay

5шт.

23

O5925AB

X

PIN - clevis (A26959)

7шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjusting (3/8")

7шт.

25

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

7шт.

26

A19407

ROD - connecting valve

2шт.

27

A19406

ROD - swing control

2шт.

28

05844AB

PIN - clevis

1шт.

29

A7824

X

PIN - clevis

5шт.

30

A19383

CONSOLE - control (Weldment)

1шт.

31

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, 3/16" x 1 3/4", Slotted

1шт.

32

D32056

SHAFT - foot pedal

1шт.

33

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

34

A19408

POINT

SHAFT - relay linkage

1шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.
