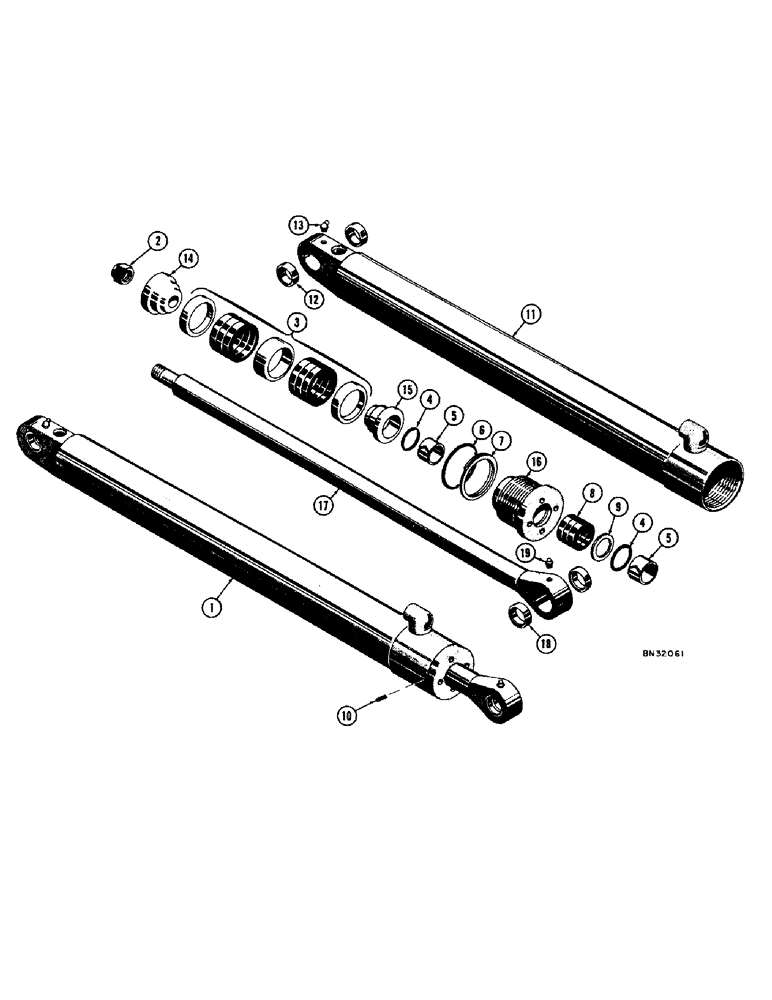

Запчасти Case 32 (44) - D30769 BACKHOE BUCKET CYLINDER

1

D30769

HYDRAULIC CYLINDER

CYLINDER - bucket, hydraulic (3-1/2" I.D. x 27-1/4" stroke)

1шт.

D30132

X

KIT - cylinder packing

1шт.

2

131-19

LOCK NUT,1"-14, GB

NUT - lock, piston rod (1" - 14 NF)

1шт.

3

D28375

PACKING

- piston, kit (Includes chevrons and spacers)

1шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

5

D27432

SHIM

- piston rod

2шт.

6

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

7

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

8

D28495

PACKING

SEAL - piston rod

1шт.

9

D28499

RING

- backup, piston rod seal

1-3шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , if used 3/16" x 5/8", Slotted

1шт.

11

D27766

CYLINDER BLOCK

TUBE - cylinder

1шт.

12

D25000

BUSHING

- end, cylinder tube

2шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

14

D28367

PISTON

- half, rear

1шт.

15

D28369

PISTON

- half, front

1шт.

16

D27431

GLAND

- packing

1шт.

17

D27885

ROD

- piston (1-3/4" dia.)

1шт.

18

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- end, piston rod

2шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
