Запчасти Case 32 (36) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS

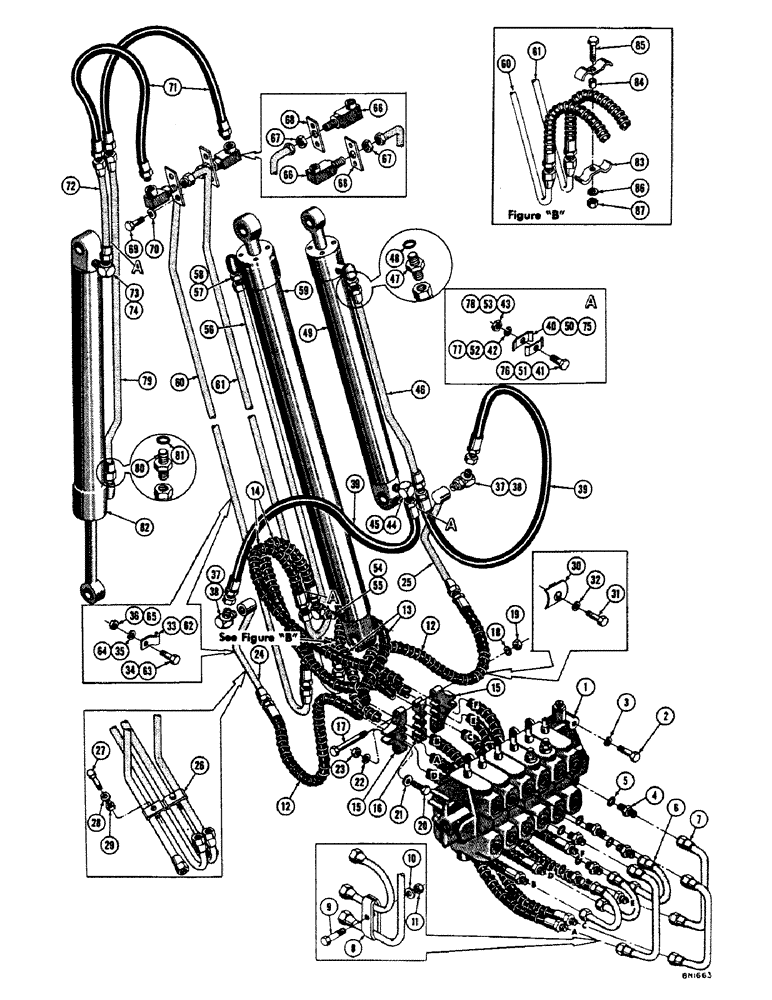

Схема запчастей Case 32 - (36) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS

Артикул

Название

Примечание

Количество

1

D30776

VALVE - hydraulic control (See page 28 for breakdown)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

214-5064

CONNECTOR - straight (3/4" JIC x 3/4" JIC)

6шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring, 218-5064 connector

1шт.

6

D30771

TUBE

- from lower valve ports to boom, crowd, and bucket cylinders

3шт.

7

D30773

TUBE

- from upper valve ports to boom, crowd, and bucket cylinders

3шт.

8

D20045

PLATE ASSY.

CLAMP - plate, D30771 and D30772 tubes

6шт.

9

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

10

92-5

LOCK WASHER,5/16"

3шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

12

D30786

HOSE

- valve to crowd cylinder (1/2" I.D. x 7/8" O.D. x 40" long)

2шт.

13

D30788

HOSE

- valve to bucket cylinder (1/2" I.D. x 7/8" O.D. x 49" long)

2шт.

14

D30790

HOSE

- valve to boom cylinder (1/2" I.D. x 7/8" O.D. x 50" long)

2шт.

15

D26125

CLAMP

- hoses at tower, ends

2шт.

16

D26124

HOSE

CLAMP - hoses at tower, center

1шт.

17

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16" - 18 NC X 3-1/4"

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

2шт.

20

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

2шт.

24

D30781

TUBE - intermediate, to crowd cylinder (R.H.)

1шт.

25

D30782

TUBE - intermediate, to crowd cylinder (L.H>)

1шт.

26

32978

PLATE ASSY.

CLAMP - plate, bucket and crowd intermediate tubes

4шт.

27

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

30

D30779

CLAMP

- hose, on bottom of boom

1шт.

31

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

1шт.

32

92-8

LOCK WASHER,1/2"

1шт.

33

D30604

CLAMP

- tube to crowd cylinder

2шт.

34

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

37

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º (3/4" JIC x 3/4" JIC)

2шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring, 218-5108 elbow (Not shown)

1шт.

39

D30784

X

HOSE - elbow on boom to crowd cylinder (3/4" I.D. x 1-5/32" O.D. x 29 " long)

2шт.

40

D20045

PLATE ASSY.

CLAMP - plate, D30784 hoses

4шт.

41

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

42

92-5

LOCK WASHER,5/16"

1шт.

43

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

44

D25567

ELBOW

- 90 degrees (3/4" JIC x 5/8" JIC)

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring, D25567 elbow (Not shown)

1шт.

46

D29026

TUBE

- crowd cylinder

1шт.

47

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - tube to cylinder (3/4" JIC x 5/8" JIC)

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring, 218-5065 connector

1шт.

49

D27752

CYLINDER ASSY.

CYLINDER - crowd, hydraulic, See Figure 42 for breakdown

1шт.

50

D20045

PLATE ASSY.

CLAMP - plate, boom cylinder hoses

2шт.

51

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

52

92-5

LOCK WASHER,5/16"

1шт.

53

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

54

D25567

ELBOW

- 90 degrees (3/4" JIC x 5/8" JIC)

1шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring, D25567 elbow (Not shown)

1шт.

56

D29020

TUBE

- boom cylinder

1шт.

57

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - tube to cylinder (3/4" JIC x 5/8" JIC)

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring, 218-5065 connector (Not shown)

1шт.

59

D27751

CYLINDER ASSY.

CYLINDER - boom, hydraulic, See Figure 42 for breakdown

1шт.

60

D30798

TUBE

- intermediate, to bucket cylinder (R.H.)

1шт.

61

D30800

TUBE

- intermediate, to bucket cylinder (L.H.)

1шт.

62

D30604

CLAMP

- bucket cylinder tube

2шт.

63

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

64

92-6

LOCK WASHER,3/8"

2шт.

65

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

66

D25568

ELBOW UNION

ELBOW - 90 degree special, on boom

2шт.

67

D26231

NUT

- jam, elbow (1-1/16" - 12 NF)

2шт.

68

D25585

PLATE - spacer

2шт.

69

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

70

92-6

LOCK WASHER,3/8"

4шт.

71

D28705

HOSE

- elbow on boom to bucket cylinder (3/4" I.D. x 1-5/32" O.D. x 40" long)

2шт.

72

D28701

TUBE

- hose to upper port of bucket cylinder

1шт.

73

D25566

ELBOW

- upper port of bucket cylinder

1шт.

74

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring, D25566 elbow (Not shown)

1шт.

75

D20045

PLATE ASSY.

CLAMP - plate, bucket cylinder tubes

2шт.

76

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

77

92-5

LOCK WASHER,5/16"

1шт.

78

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

79

D29022

TUBE

- hose to lower port of bucket cylinder

1шт.

80

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - tube to cylinder (3/4" JIC x 5/8" JIC)

1шт.

81

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring, 218-5065 connector

1шт.

82

D30769

HYDRAULIC CYLINDER

CYLINDER - bucket, hydraulic, See Figure 44 for breakdown

1шт.

83

R15257

CLAMP

- plate, plastic coated (Bucket cylinder hoses in bottom of boom)

2шт.

84

O5652HT

SPACER - clamp spacing

1шт.

85

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

86

92-5

LOCK WASHER,5/16"

1шт.

87

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

Выбрано товаров: 87
