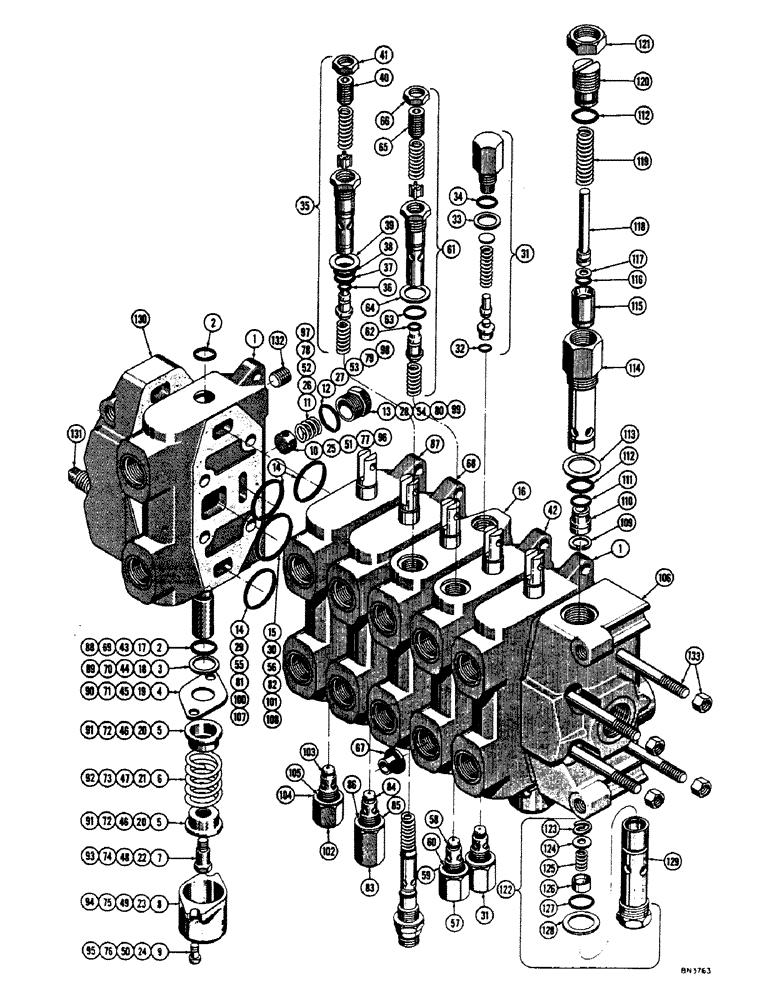

Запчасти Case 32 (28) - BACKHOE HYDRAULIC CONTROL VALVE

D33636

PIN

VALVE - control, backhoe

1шт.

1

D26842

ELEMENT

SECTION - valve, stabilizer cylinder control

2шт.

2

08416AB

SEAL - "O" ring, spool

2шт.

3

D26829

RING

- backup, spool seal

1шт.

4

D26830

PLATE

- retaining

1шт.

5

D26831

GUIDE

- spring

2шт.

6

D26832

SPRING

- centering

1шт.

7

D26833

BOLT

- stripper

1шт.

8

D26823

CAP

- valve

1шт.

9

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 NC x 3/4")

2шт.

10

D26824

SPOOL

POPPET - check valve

1шт.

11

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

12

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "o" ring, cap

1шт.

13

D30696

CYLINDER END CAP

CAP - check valve

1шт.

14

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring, section seal

3шт.

REF#14 QTY REQUIRED IS 21 PCS 11/8/96

1шт.

15

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring, section seal

1шт.

REF#15 QTY REQUIRED IS 7 PCS 11/8/96

1шт.

16

D28068

X

SECTION - valve, swing cylinder control

1шт.

REF#16 REPLACED BY D40749 11/8/96

1шт.

17

08416AB

SEAL - "o" ring, spool

2шт.

18

D26829

RING

- backup, spool seal

1шт.

19

D26830

PLATE

- retaining

1шт.

20

D26831

GUIDE

- spring

2шт.

21

D26832

SPRING

- centering

1шт.

22

D26833

BOLT

- stripper

1шт.

23

D26823

CAP

- valve

1шт.

24

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 NC x 3/4")

2шт.

25

D26824

SPOOL

POPPET - check valve

1шт.

26

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

27

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - ""o" ring cap

1шт.

28

D30696

CYLINDER END CAP

CAP - check valve

1шт.

29

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring, section seal

3шт.

30

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring, section seal

1шт.

31

D31448

CARTRIDGE - relief, secondary (2-1/16" long) color code - green (2750 P.S.I. preset at factory) use D31449

2шт.

D31449

CARTRIGE - relief, secondary (2-3/4" long) color code - green (2750 P.S.I. preset at factory)

2шт.

32

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

33

D31450

WASHER

- gasket

1шт.

34

D26872

O-RING

SEAL - "o" ring, outer

1шт.

35

D26838

FILTER

CARTRIDGE - relief, cross-over (Color code - brown) 1300 P.S.I. preset at factory

2шт.

36

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, poppet

1шт.

37

D31412

O-RING

SEAL - "o" ring, shell (Lower)

1шт.

38

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

seal - "o" ring, shell (Upper)

1шт.

39

D26870

GASKET

WASHER - gasket

1шт.

40

D26878

X

SCREW - set, adjusting

1шт.

41

D26879

LOCK NUT

NUT - lock, adjusting screw

1шт.

42

D26839

SECTION - valve, boom cylinder control

1шт.

REF#42 REPLACED BY D40748 11/8/96

1шт.

43

08416AB

SEAL - "o" ring, spool

2шт.

44

D26829

RING

- backup, spool seal

1шт.

45

D26830

PLATE

- retaining

1шт.

46

D26831

GUIDE

- spring

2шт.

47

D26832

SPRING

- centering

1шт.

48

D26833

BOLT

- stripper

1шт.

49

D26823

CAP

- valve

1шт.

50

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 NC x 3/4")

2шт.

51

D26824

SPOOL

POPPET - check valve

1шт.

52

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

53

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "o" ring, cap

1шт.

54

D30696

CYLINDER END CAP

CAP - check valve

1шт.

55

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring, section seal

3шт.

56

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring, section seal

1шт.

57

D31448

CARTRIDGE - relief, secondary (2-1/16" long) color code - green (2750 P.S.I. preset at factory) use D31449

1шт.

D31449

CARTRIDGE - relief, secondary (2-3/4" long) color code - (2750 P.S.I. preset at factory)

1шт.

58

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

59

D31450

WASHER

- gasket

1шт.

60

D26872

O-RING

SEAL - "o" ring, outer

1шт.

61

D26841

CARTRIDGE

- relief, boom down pressure (Color code - black) 1250 P.S.I. preset at factory

1шт.

62

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, poppet

1шт.

63

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - "o" ring, shell

1шт.

64

D26870

GASKET

WASHER - gasket

1шт.

65

D26878

X

SCREW - set, adjusting

1шт.

66

D26879

LOCK NUT

NUT - lock, adjusting screw

1шт.

67

D27565

VALVE

CHECK - restrictor (7/32" dia. orifice)

1шт.

68

D28054

SECTION - valve, crowd cylinder control

1шт.

NOTE:REF#68 & 87 REPLACED BY D40750 11/8/96

1шт.

69

08416AB

SEAL - "o" ring, spool

2шт.

70

D26829

RING

- backup, spool seal

1шт.

71

D26830

PLATE

- retaining

1шт.

72

D26831

GUIDE

- spring

2шт.

73

D26832

SPRING

- centering

1шт.

74

D26833

BOLT

- stripper

1шт.

75

D26823

CAP

- valve

1шт.

76

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 NC x 3/4")

2шт.

77

D26824

SPOOL

POPPET - check valve

1шт.

78

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

79

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "o" ring, cap

1шт.

80

D30696

CYLINDER END CAP

CAP - check valve

1шт.

81

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring, section seal

3шт.

82

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring, section seal

1шт.

83

D31449

CARTRIDGE - relief, secondary (Color code - green) 2750 P.S.I. preset at factory

1шт.

84

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

85

D31450

WASHER

- gasket

1шт.

86

D26872

O-RING

SEAL - "o" ring, outer

1шт.

87

D26821

SECTION - valve, bucket cylinder control

1шт.

NOTE:REF#68 & 87 REPLACED BY D40750 11/8/96

1шт.

88

08416AB

SEAL - "o" ring, spool

2шт.

89

D26829

RING

- backup, spool

1шт.

90

D26830

PLATE

- retaining

1шт.

91

D26831

GUIDE

- spring

2шт.

92

D26832

SPRING

- centering

1шт.

93

D26833

BOLT

- stripper

1шт.

94

D26823

CAP

- valve

1шт.

95

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 Nc x 3/4")

2шт.

96

D26824

SPOOL

POPPET - check valve

1шт.

97

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

98

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "o" ring, cap

1шт.

99

D30696

CYLINDER END CAP

CAP - check valve

1шт.

100

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring, section seal

3шт.

101

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring, section seal

1шт.

102

D31448

CARTRIDGE - relief, secondary (2-1/6" long) color code - green (2750 P.S.I. preset at factory) use D31449

1шт.

D31449

CARTRIDGE - relief, secondary (2-3/4" long) color code - green (2750 P.S.I. preset at factory)

1шт.

103

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

104

D31450

WASHER

- gasket

1шт.

105

D26872

O-RING

SEAL - "o" ring, outer

1шт.

106

D31415

SECTION - valve inlet

1шт.

107

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring, section seal

3шт.

108

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring, section seal

1шт.

D26818

CARTRIDGE - relief valve, main (1800 P.S.I. preset at factory)

1шт.

109

D26858

RING, SNAP

SNAP RING - "o" ring, poppet

1шт.

110

D26856

POPPET - relief valve

1шт.

111

A8613

O-RING,0.426" ID x 0.566" OD

SEAL - "o" ring, poppet

1шт.

112

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "o" ring, shell and adjusting screw

2шт.

113

D30681

GASKET

WASHER - gasket, shell

1шт.

114

D26848

SHELL - cartridge

1шт.

115

D26855

SEAT

- floating

1шт.

116

A11026

GASKET

SEAL - "o" ring, plunger

1шт.

117

D26853

BACK-UP RING

RING - backup, plunger seal

1шт.

118

D26852

PLUNGER - displacement

1шт.

119

D26860

VALVE SPRING

SPRING - compression

1шт.

120

D26849

SCREW - spring adjusting

1шт.

121

D26850

NUT

- lock, adjusting screw

1шт.

122

D31416

LOCK VALVE

CHECK VALVE ASSEMBLY - inlet section

1шт.

123

D26858

RING, SNAP

RING - spirolox

1шт.

124

D31420

RING

RETAINER - spring

1шт.

125

D31419

SPRING

- check valve

1шт.

126

D31418

VALVE POPPET

POPPET - check valve

1шт.

127

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "o" ring, check valve

1шт.

128

D30681

GASKET

WASHER - gasket

1шт.

129

D31417

CARTRIDGE

- check valve

1шт.

130

D31422

SECTION - outlet

1шт.

131

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - end outlet section (1/2" NPT)

1шт.

132

221-33

OILER FABRIC,Sq Soc, 3/8"-18 NPTF

PLUG - socket, outlet section (3/8" NPT)

1шт.

133

D26846

STUD

- valve assembly

4шт.
