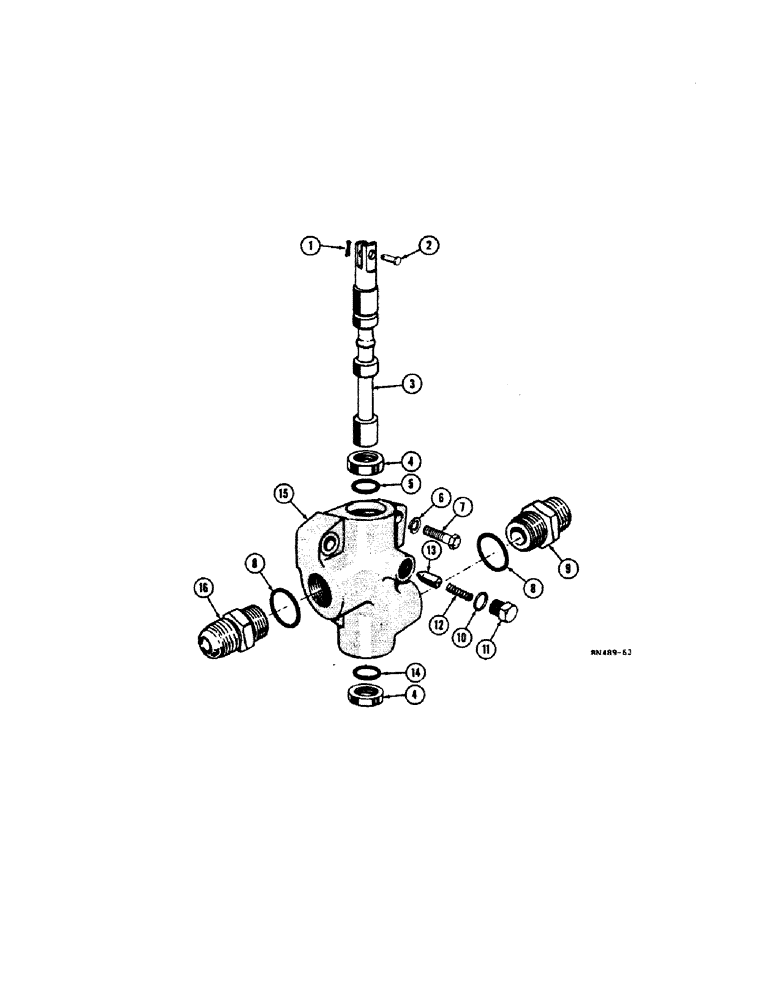

Запчасти Case 32 (26) - A19162 DIVERTER VALVE

1

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

2

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - diverter valve

1шт.

4

A19167

SEAL

- diverter valve (Garlock #63X291)

2шт.

5

03522CK

SEAL - "O" ring, spool

1шт.

6

92-8

LOCK WASHER,1/2"

1шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex. (1/2" - 13 NC x 1-3/4")

2шт.

8

A12319

X

SEAL - "O" ring, adapter (Use 218-5010)

2шт.

9

A12309

X

ADAPTER - diverter valve to control valve with A12319 seal

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, diverter valve detent plug

1шт.

11

76349

PLUG,9/16" - 18 ORB

Diverter valve detent with 218-5005 seal Hex Hd, 9/16"-18 ORB

1шт.

12

A7032

SPRING

- detent

1шт.

13

A19166

PLUNGER - diverter valve detent

1шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, housing

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - diverter valve to backhoe valve with A12319 seal

1шт.
