Запчасти Case 32 (22) - BASIC BACKHOE HYDRAULICS, W9B

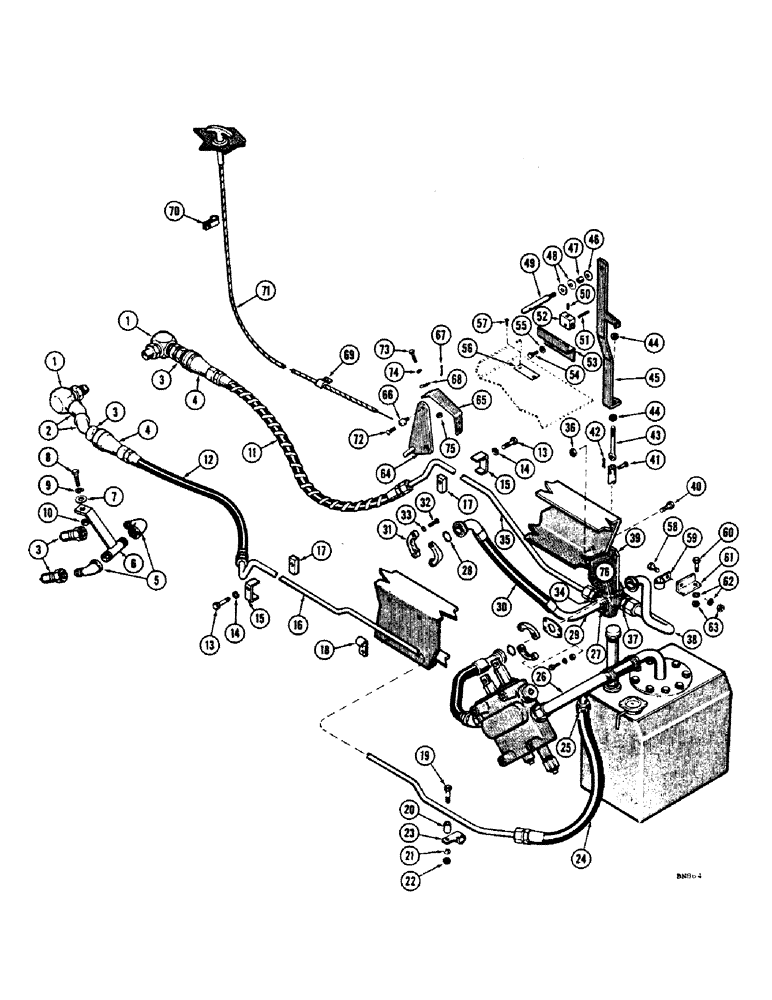

Схема запчастей Case 32 - (22) - BASIC BACKHOE HYDRAULICS, W9B

Артикул

Название

Примечание

Количество

1

A19176

X

ADAPTER - 90 degree elbow

2шт.

2

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 3/4" x 45 degrees

2шт.

3

A15884

COUPLING

- male breakaway, See Figure 26

4шт.

4

A15885

COUPLING

- female breakaway, See Figure 26

2шт.

5

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- 90 degree street

2шт.

6

A19306

COUPLING

COUPLER - backhoe hose

1шт.

7

A16769

WASHER

- spacer

1шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

11

A19771

HOSE - backhoe pressure

1шт.

12

A19342

HOSE

- backhoe return

1шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

A19773

CLAMP - tube

2шт.

16

A19766

TUBE - backhoe returen

1шт.

17

A19305

SPACER

- return tube

2шт.

18

A19948

CLAMP - return line

1шт.

19

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

20

A19774

BUSHING

SPACER - return line

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

23

A19775

CLAMP - return line

1шт.

24

A19770

HOSE - return line

1шт.

25

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

26

A19768

ELBOW -, Serial Range: valve-reservoir

1шт.

27

A12306

FLANGE

CLAMP - split flange, 1"

2шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Not shown Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

92-6

LOCK WASHER,3/8"

not shown 3/8"

4шт.

28

A12139

O-RING

SEAL - "O" ring

2шт.

29

A19769

TUBE - diverter, Serial Range: valve-hose

1шт.

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring, diverter valve flange (Not shown)

1шт.

30

A19765

HOSE - pump to diverter valve

1шт.

31

A12301

CLAMP,Half

CLAMP - split flange, 1-1/4"

2шт.

32

13-372

BOLT - hex. (7/16" - 14 NC x 1-1/2")

4шт.

33

92-7

LOCK WASHER,7/16"

4шт.

34

A19173

X

ADAPTER - diverter valve to backhoe valve

1шт.

35

A19767

TUBE - diverter, Serial Range: valve-backhoe

1шт.

36

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 20 NF)

2шт.

37

A19772

X

ADAPTER - diverter valve to loader valve

1шт.

38

A19769

TUBE - diverter valve to loader valve hose

1шт.

39

A19776

PLATE - diverter valve mounting

1шт.

40

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- hex. (1/2" - 20 NF x 1")

2шт.

41

05925AB

PIN - clevis

1шт.

42

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

43

A19782

ROD - control lever

1шт.

44

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

45

A19777

LEVER - actuator diverter

1шт.

46

A19541

WASHER

- spring

1шт.

47

A19781

BUSHING

SLEEVE - control lever

1шт.

48

195-533

WASHER,1/2", SAE

2шт.

49

A19780

HANDLE - control lever

1шт.

50

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

SCREW - set (1/4" x 3/4")

1шт.

51

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

52

A19199

BLOCK - throttle stop

1шт.

53

A19951

GUIDE - throttle block control

1шт.

54

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

195-520

WASHER,1/4"

- plain, 5/16" (Zinc plated) Not shown

1шт.

55

92-5

LOCK WASHER,5/16"

1шт.

56

A19952

PLATE - diverter valve control

1шт.

57

1871003

SCREW - self tapping, #8 - 32 NC x 5/16"

2шт.

58

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

59

A19949

CLIP - tube

1шт.

60

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

62

92-6

LOCK WASHER,3/8"

2шт.

63

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

64

A19784

LEVER - bracket, throttle control

1шт.

65

A19783

BRACKET - backhoe throttle cable

1шт.

66

A8281

SWIVEL - throttle control

1шт.

67

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

68

02825AB

CLIP

1шт.

69

06168AB

CLIP - throttle cable to chassis, L.H.

1шт.

70

03092AB

CLIP - throttle cable to timing cover

1шт.

71

A19309

CABLE PULLING GRIP

CABLE - throttle control

1шт.

72

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- round head machine, #8 - 32 NC x 1/4"

1шт.

73

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

74

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

75

25-104

NUT,1/4"-20, G5

1шт.

76

A19162

VALVE - diverter, See Figure 26 for breakdown

1шт.
