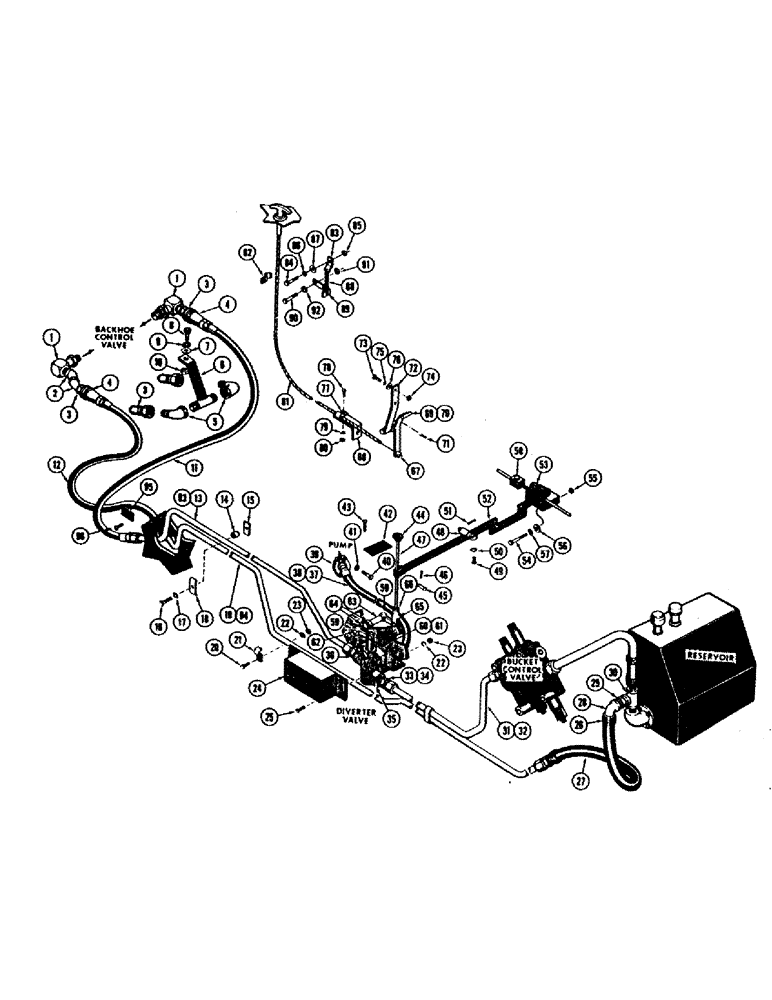

Запчасти Case 32 (18) - BASIC BACKHOE HYDRAULICS, W9A AND W10

1

A19176

X

ADAPTER - 90 degree elbow

2шт.

2

222-1405

ELBOW - 45 degree street

2шт.

3

A15884

COUPLING

- male breakaway, See Figure 26

4шт.

4

A15885

COUPLING

- female breakaway, See Figure 26

2шт.

5

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- 90 degree street

2шт.

6

A19306

COUPLING

COUPLER - backhoe hose

1шт.

7

A16769

WASHER

- spacer

1шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

11

A19341

HOSE

- backhoe pressure

1шт.

12

A19342

HOSE

- backhoe return

1шт.

13

A19642

TUBE - diverter valve to backhoe (Pressure) (W9A)

1шт.

14

A19177

SPACER

- tube clamp

1шт.

15

A19305

SPACER

- hydraulic tube

1шт.

16

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex. (3/8" - 16 NC x 2-1/4")

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

A14078

CLAMP

- hydraulic tube

1шт.

19

A19643

TUBE - backhoe valve return (W9A)

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

21

A13680

CLAMP - tube

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

25-104

NUT,1/4"-20, G5

2шт.

24

A19169

SHIELD - diverter valve body

1шт.

25

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube

2шт.

27

A19178

HOSE - backhoe, Serial Range: valve-reservoir

1шт.

28

A16619

ELBOW - 90 degree hose

1шт.

29

221-1604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducing pipe (1" x 3/4"

1шт.

30

221-1695

TEE,Street, 1" NPT

- pipe street, 1"

1шт.

31

A19302

TUBE - diverter valve to control valve (2 spool)

1шт.

32

A19170

TUBE - diverter valve to control valve (3 spool)

1шт.

33

A12309

X

ADAPTER - diverter valve to control valve with A12319 seal

1шт.

34

A12319

X

SEAL - "o" ring, diverter valve adapter (Use 218-5010)

2шт.

35

A19162

VALVE - diverter, See Figure 26 for breakdown

1шт.

36

A19173

X

ADAPTER - diverter valve to backhoe valve with A12319 seal

1шт.

37

A19435

HOSE - hydraulic pump to diverter valve

1шт.

38

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O' ring, hydraulic (A19435 at valve)

1шт.

39

A12306

FLANGE

CLAMP - 4 bolt split flange

2шт.

40

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

41

92-6

LOCK WASHER,3/8"

4шт.

42

A19296

PLATE - name, diverter valve control

1шт.

43

187-570

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - self tapping, round head maching (#10 x 1/4")

2шт.

44

03501AB

BALL - shifter

1шт.

45

05925AB

PIN - diverter actuating control lever

1шт.

46

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

47

A19186

ROD - diverter actuator control

1шт.

48

A19189

PIN - diverter actuator lever pivot

1шт.

49

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

50

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

51

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

52

A19190

LEVER - throttle interlock

1шт.

53

A19195

BRACKET - throttle control

1шт.

54

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

55

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

56

95-6

WASHER,3/8"

- wrought, 3/8"

2шт.

57

92-6

LOCK WASHER,3/8"

2шт.

58

A19199

BLOCK - backhoe throttle control

1шт.

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Backhoe throttle control (not shown) 3/16" x 3/4", Slotted

1шт.

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

SCREW - set, socket head (1/4" - 20 NC x 3/4") Not shown

1шт.

59

A19308

LEVER - diverter valve control

2шт.

135-76

GROOVED PIN,1/4" x 1 1/4", Type A

PIN, GROOVED, 1/4" x 1 1/4, Type A, Not shown

2шт.

60

05925AB

PIN - clevis

1шт.

61

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

62

A19181

SHAFT - diverter valve actuator

1шт.

63

A19182

BEARING - diverter actuator shift support

1шт.

64

25-1514

JAM NUT,Jam, 7/8"-14, G5

- jam. (7/8" - 14 NF)

2шт.

65

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - actuator

1шт.

66

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

67

07029AB

CLAMP - control wife

1шт.

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- round head machine, #8 - 32 NC x 1/4" (Not shown)

1шт.

68

A19459

STRAP - throttle control cable

1шт.

69

A19203

LEVER - throttle control

1шт.

70

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

71

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

72

A19200

BRACKET - backhoe throttle control

1шт.

73

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- HEX. (3/8" - 16 NC x 1-1/2")

2шт.

74

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

75

92-6

LOCK WASHER,3/8"

2шт.

76

95-6

WASHER,3/8"

- wrought, 3/8"

2шт.

77

01920AB

CLIP - cable mounting

1шт.

78

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

79

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80

25-104

NUT,1/4"-20, G5

1шт.

81

A19458

CABLE - throttle control

1шт.

82

04599AB

CLAMP - throttle control

1шт.

83

A19208

CLIP - hood hold down

2шт.

84

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

85

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

86

92-5

LOCK WASHER,5/16"

2шт.

87

95-5

WASHER,3/8" x 7/8" x .083"

- wrought, 5/16"

2шт.

88

04921AB

SPRING - hood hold down

2шт.

89

A19209

STRAP - hood hold down

2шт.

90

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

91

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

92

92-6

LOCK WASHER,3/8"

4шт.

93

A19303

TUBE - diverter valve to backhoe (Pressure ) (W10)

1шт.

94

A19304

TUBE - backhoe valve to return (W10)

1шт.

95

A19297

PLATE ASSY.

PLATE - backhoe instruction

2шт.

96

168-68

SCREW - drive, #6 x 3/8" (Zinc plated)

4шт.
