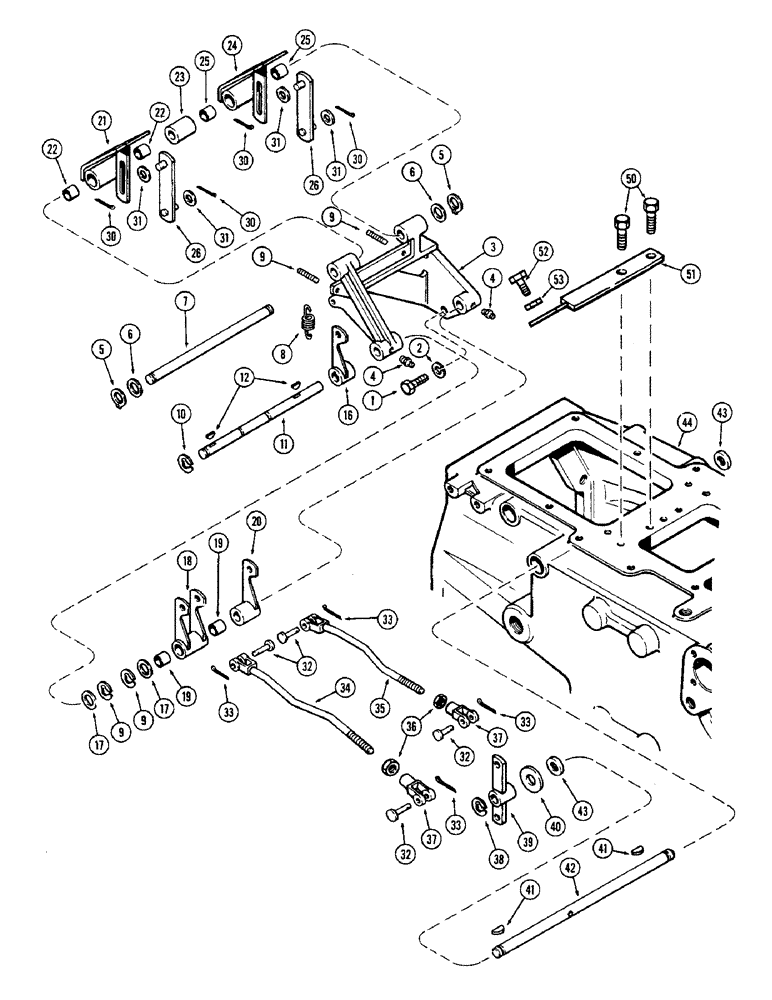

Запчасти Case 580B (134) - FOOT SPEED CONTROLS (06) - POWER TRAIN

1

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- (3/8 x 1-3/8" N.C. hex.) (Support to trans.)

3шт.

2

92-6

LOCK WASHER,3/8"

3шт.

3

A50954

SUPPORT

- foot pedal shaft (Replace A39609)

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

5

A11538

SNAP RING,#50, Ext

Ring, Snap, , Truarc #50, Ext

2шт.

6

195-2067

WASHER,33/64" x 7/8" x .065"

- (33/64 x 7/8 x 16 ga.)

2шт.

7

A39610

SHAFT - foot pedal

1шт.

8

A39548

SPRING

- foot pedal return

2шт.

9

A59433

SCREW,1/4" - 20 x 1 1/4"

- (1/4 x 1-1/4" N.C. slotted hd. Nylock)

2шт.

10

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

3шт.

Part of adjustable speed lever (Repalces A51383) kit P/N A50968

1шт.

11

A39620

SHAFT - lower lever

1шт.

12

126-8

KEY - (#2 Woodruff) (3/32 x 1/2") shaft to lever #2, 3/32" x 1/2"

2шт.

16

A39627

LEVER - lower shaft, reverse

1шт.

17

195-2067

WASHER,33/64" x 7/8" x .065"

- (33/64 x 7/8 x 16 gauge)

2шт.

18

A39624

LEVER ASSY. - lower shaft, forward, Includes: Ref. 19

1шт.

19

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BUSHING - lower lever

2шт.

20

A39621

LEVER - lower shaft, reverse

1шт.

21

A39617

PEDAL ASSY. - reverse

1шт.

22

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BUSHING - food pedal hub

2шт.

23

A39636

SPACER - pedal shaft

1шт.

24

A39611

PEDAL ASSY. - forward, Includes: Ref. 25

1шт.

25

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BUSHING - foot pedal hub

2шт.

26

A39629

BEARING

LINK - pedal (Forward & reverse)

2шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

31

195-2026

WASHER,.328" x 5/8" x .065"

- (21/64 x 5/8 x 16 gauge) pedal link

4шт.

32

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke to lever 5/16" x .940"

4шт.

33

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

34

A39632

ROD - forward speed

1шт.

35

A39633

ROD - reverse speed

1шт.

36

25-155

JAM NUT,Jam, 5/16"-24, G5

- yoke (5/16" N.F.)

2шт.

37

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod (5/16" N.F.)

2шт.

38

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , Truarc #50, .392" Dia, E-Type

1шт.

39

A39634

LEVER - speed control

1шт.

40

A31223

WASHER - spacer, lever

1шт.

41

126-8

KEY - (#2 Woodruff) (3/32 x 1/2") #2, 3/32" x 1/2"

1шт.

42

A39472

SHAFT - speed control

1шт.

43

A39441

SEAL

- oil

2шт.

44

A39300

HOUSING - transmission, Includes: Ref. 50 - 53

1шт.

F150954

WHEEL GEAR

- adjustable speed lever stop (Replaces A51383) Incl. Refs. 10, 50, 51, 52 and 53

1шт.

50

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- (3/8 x 1-3/8" N.C. hex.)

2шт.

Part of adjustable speed lever (Repalces A51383) kit P/N A50968

1шт.

51

NSS

NOT SOLD SEPARAT

BRACKET - speed lever stop

1шт.

Part of adjustable speed lever (Repalces A51383) kit P/N A50968

1шт.

52

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

Part of adjustable speed lever (Repalces A51383) kit P/N A50968

1шт.

53

25-145

JAM NUT,Jam, 5/16"-18, G5

- (5/16" N.C. hex. jam)

1шт.

Part of adjustable speed lever (Repalces A51383) kit P/N A50968

1шт.
