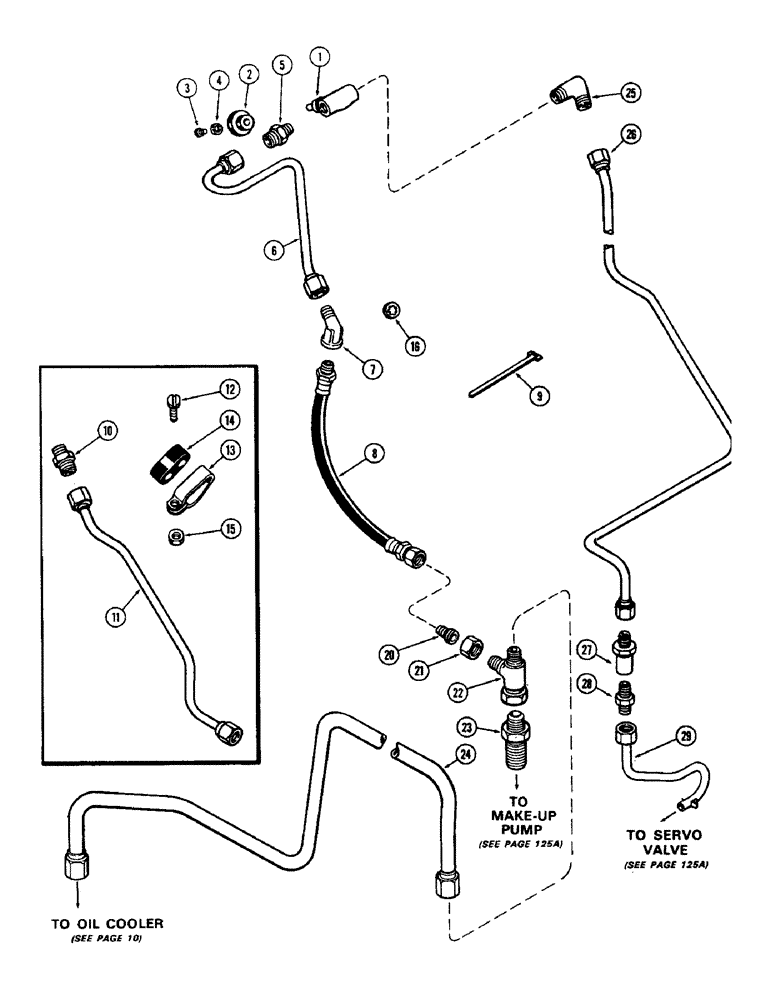

Запчасти Case 580B (132) - FLOW RATE VALVE (06) - POWER TRAIN

1

A39857

VALVE ASSY. - flow rate, Includes: Ref. 2 - 4

1шт.

2

A43670

HANDLE - valve

1шт.

3

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine (#6 x 1/2" N.C. rd. hd.)

1шт.

4

195-507

WASHER,#6

- (5/32 x 3/8 x 1/16")

1шт.

5

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight (3/8" tube x 1/4" P.T.)

1шт.

6

A39855

TUBE - rate valve to torque tube (Upper section)

1шт.

7

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

ASSY. - 9/16" N.F. x 45 degrees

1шт.

8

A51718

HOSE

- rate valve to torque tube

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose

2шт.

10

218-433

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male JIC

UNION - straight (3/8" tube x 3/8" tube x 3/8" P.T.)

1шт.

11

A39856

TUBE

- rate valve to torque tube (Lower section) (Prod. only) (Order 1-A51718 & 1-218-5172)

1шт.

12

174-202

SCREW - (#10 x 1/2" N.F. Phillips cross rec. hd.)

2шт.

13

A39606

CLAMP - tube grommet

2шт.

14

A39605

GROMMET - tube

2шт.

15

129-27

NUT,Hex, #10 - 32

- (#10 N.F. hex.)

2шт.

16

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Valve to instrument panel Int Tooth, 1/2"

1шт.

20

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

- (5/8" tube x 3/8" P.T.) (Lower tube)

1шт.

21

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - (5/8" tube x 7/8" P.T.)

1шт.

22

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

FITTING - tube, torque tube hsg. outlet

1шт.

23

A39444

FITTING - bulkhead, make up pump to rate valve & cooler

1шт.

24

A39594

TUBE - input, oil cooler

1шт.

25

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees (1 piece tube to valve)

1шт.

26

A39854

TUBE - rate valve to torque tube

1шт.

27

A39442

FITTING - bulkhead, rate valve to Servo valve

1шт.

28

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - male (3/8" tube x 1/4" P.T.)

1шт.

29

A39469

TUBE ASSY. - Servo to bulkhead fitting (Incl. sleeve & nut)

1шт.
