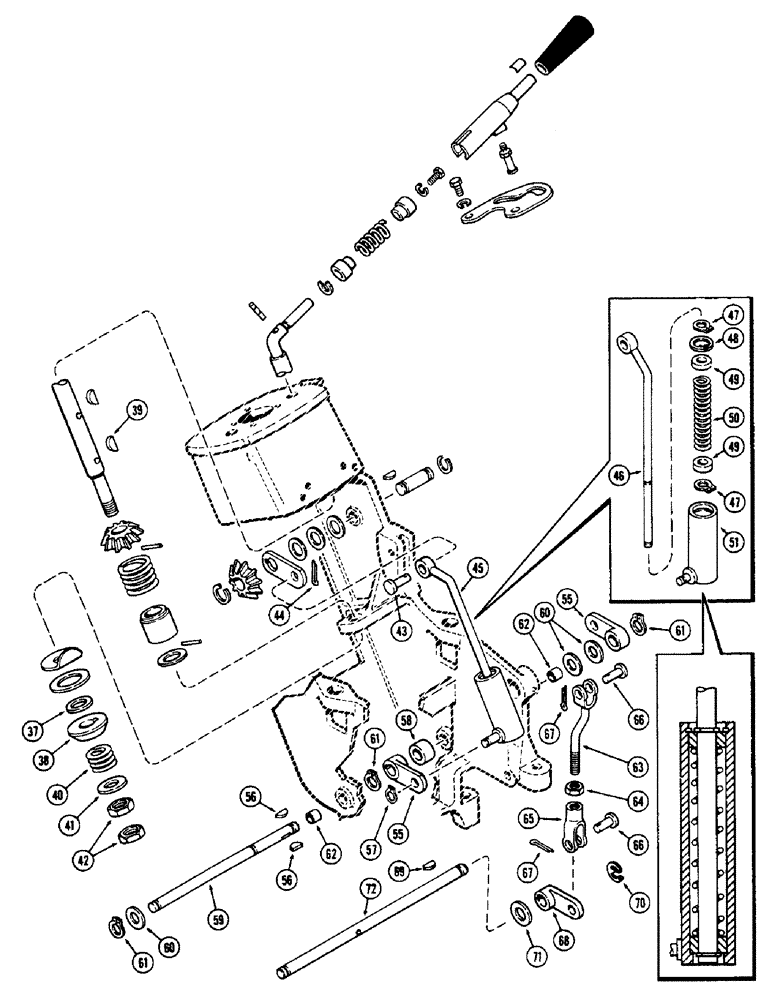

Запчасти Case 580B (130) - HAND SPEED CONTROL (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
37
A32838
WASHER
- friction disc (Cont'd. from Figure 128)
1шт.
38
A39696
COLLAR - friction disc
1шт.
39
126-8
KEY - (#2 Woodruff) (3/32 x 1/2") #2, 3/32" x 1/2"
1шт.
40
A34113
SPRING
- tension, friction disc
1шт.
41
195-33
WASHER,1/2"
- plain
1шт.
42
25-148
JAM NUT,Jam, 1/2"-13, G5
- (1/2" NC hex, jam)
2шт.
43
A39709
PIN
- spring box rod
1шт.
44
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
1шт.
45
A39700
ROD ASSY. - spring box, Includes: Ref. 46 - 51
1шт.
46
A39706
ROD - spring box
1шт.
47
G46146
SNAP RING,#37, Ext
RING - snap (3/8" external)
2шт.
48
A51710
RING, SNAP
SNAP RING - (13/16" internal)
1шт.
49
A39705
SPACER - spring box
2шт.
50
A51709
SPRING
- spring box (Replaces A39704)
1шт.
51
A39701
TUBE - spring box
1шт.
55
A39778
LEVER - speed control
2шт.
56
126-8
KEY - (#2 Woodruff) (3/32 x 1/2") lever to shaft #2, 3/32" x 1/2"
2шт.
57
G46146
SNAP RING,#37, Ext
Ring, Snap, , spring box to lever #37, Ext
1шт.
58
A39777
SPACER - speed control cross shaft
1шт.
59
A39776
SHAFT - cross, speed control
1шт.
60
A27857
WASHER
- (.065 x 3-3/64 x 15/16")
3шт.
61
A11538
SNAP RING,#50, Ext
Ring, Snap, , shaft #50, Ext
3шт.
62
A35428
CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"
BUSHING
2шт.
63
A39779
ROD - speed control
1шт.
64
25-156
JAM NUT,Jam, 3/8"-24, G5
- (3/8" N.F. hex., jam)
1шт.
65
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
END - rod (3/8")
1шт.
66
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
2шт.
67
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
2шт.
68
A39717
LEVER - speed control (Lower)
1шт.
69
126-8
KEY - (#2 Woodruff) (3/32 x 1/2") #2, 3/32" x 1/2"
1шт.
70
A27804
CIRCLIP,#50, .392" Dia, E-Type
Ring, Retaining, , lower lever to shaft #50, .392" Dia, E-Type
1шт.
71
A31223
WASHER - lower, Serial Range: lever-shaft
1шт.
72
A39472
SHAFT - speed
1шт.
Выбрано товаров: 33
