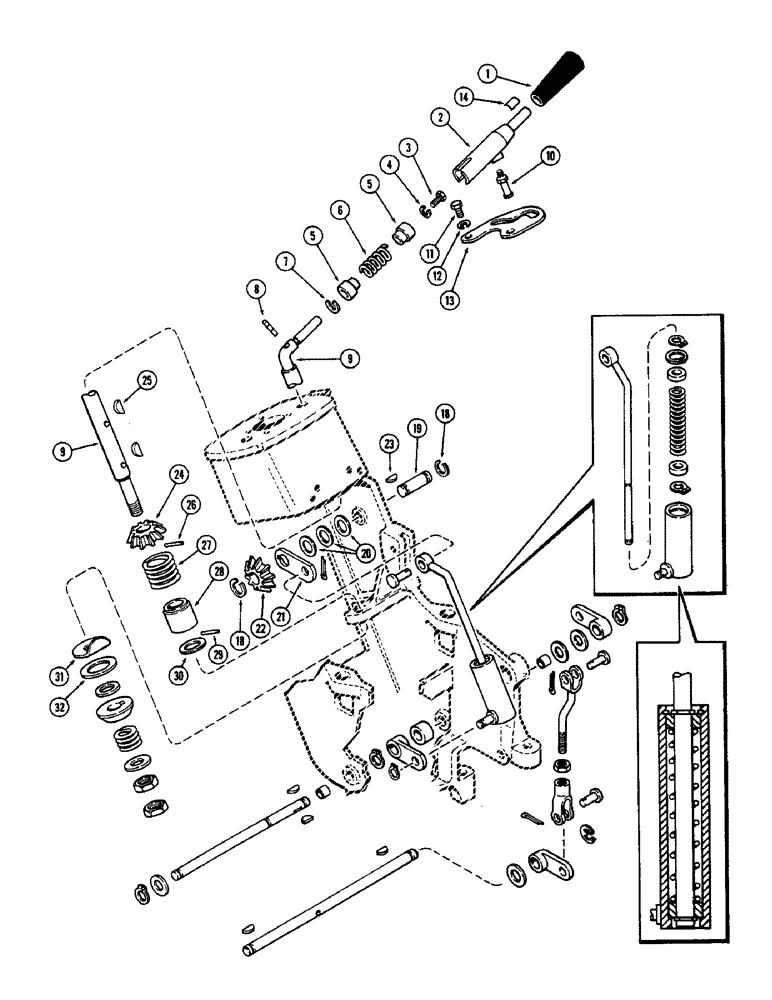

Запчасти Case 580B (128) - HAND SPEED CONTROL (06) - POWER TRAIN

1

A37247

KNOB

- speed control

1шт.

2

A39677

SLEEVE - speed control

1шт.

3

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

- (1/4 x 3/8" N.C. hex.)

1шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

A39685

BUSHING - speed control lever

2шт.

6

A39684

SPRING

- speed control lever

1шт.

7

A39686

SNAP RING - internal

1шт.

8

135-557

PIN - groove (3/16 x 3/4") (Replaces 135-1136)

1шт.

9

A39771

LEVER - speed control

1шт.

10

A39774

ROLLER - speed control

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

A39676

QUADRANT - speed control

1шт.

14

A51528

OIL SEAL

RING - tolerance tab

1шт.

18

A59594

RING

SNAP RING - shaft

2шт.

19

A39697

SHAFT - bevel gear, horizontal

1шт.

20

A39698

BEARING WASHER,0.66" ID x 1.12" OD x 0.022"

WASHER - horizontal gear shaft

3шт.

21

A39699

LEVER - horizontal gear shaft

1шт.

22

A39687

GEAR

- bevel, hand control

1шт.

23

126-15

WOODRUFF KEY,#8, 5/32" x 3/4"

(Gear to shaft) #8, 5/32" x 3/4"

1шт.

24

A39687

GEAR

- bevel, hand control

1шт.

25

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

26

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

27

A27877

SPRING

- gear

1шт.

28

A39772

SPACER - hand speed control shaft

1шт.

29

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

30

L30737

WASHER

1шт.

31

A39694

PLATE - friction disc

1шт.

32

A39695

DISC - friction, speed control

1шт.
