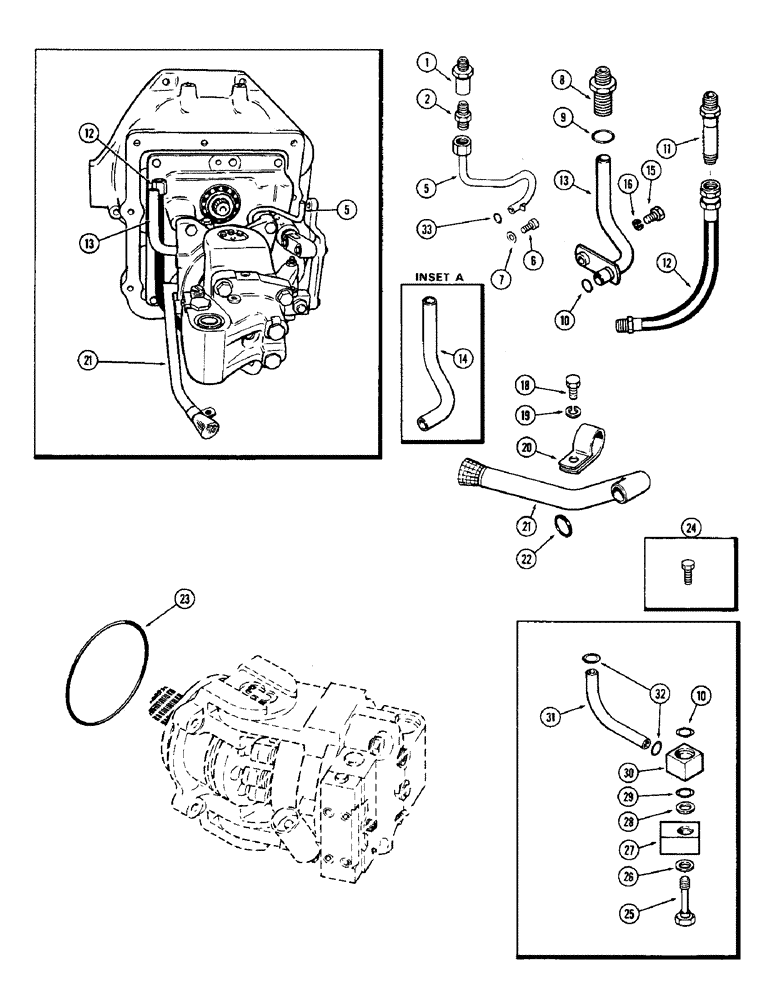

Запчасти Case 580B (125A) - TAURODYNE ASSEMBLY, BULKHEAD FITTINGS, TUBES, HOSES & HARDWARE (06) - POWER TRAIN

1

A39442

FITTING - bulkhed

1шт.

2

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - male (3/8" tube x 1/4" P.T.)

1шт.

5

A39469

TUBE ASSY. - servo to bulkhead fitting (Includes nut & sleeve)

1шт.

6

61-410

HEX SOC SCREW,1/4"-20 x 5/8"

SCREW - (1/4 x 5/8" hex. socket head)

1шт.

7

195-18

WASHER,1/4"

- plain () 1/4"

1шт.

8

A39444

FITTING - bulkhead

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

10

D32114

O-RING,0.75" ID x 0.875" OD

"O" RING - oil tube port & banjo fitting (3/4 x 7/8 x 1/16")

2шт.

11

A39443

FITTING - bulkhead

1шт.

12

A39463

HOSE -, Serial Range: cooler-pump

1шт.

13

A50955

TUBE

- pump to bulkhead (Replaced A39462, see inset A)

1шт.

14

A39462

TUBE

- pump to bulkhead (Order 1-A50955 tube, 1-A50957 spacer, 1-13-514 bolt & 1-92-5 lockwasher)

1шт.

15

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

18

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

A39468

CLAMP,1 1/8", 3/8" Bolt

- suction tube

1шт.

21

A39464

TUBE - suction, w/screen

1шт.

22

D39717

O-RING,1.051" ID x 1.191" OD

"O" RING - oil tube port (1-3/64 x 1-23/64 x 5/64")

1шт.

23

A55800

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

"O" RING - tractor mounting (5-1/2 x 5-3/4 x 1/8")

1шт.

24

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

TOOL - transport (It is important that prior to connection of links to pump & motor, this screw must be removed completely)

1шт.

25

A43620

BOLT - oil inlet banjo

1шт.

26

A43621

WASHER

- sealing, oil inlet banjo bolt

1шт.

27

A43622

UNION - oil inlet adapter

1шт.

28

A43623

RING

- backup, union banjo

1шт.

29

R15366

O-RING,7/8" ID x 1" OD x 1/16"

"O" RING - backup, union to banjo (7/8 x 1 x 1/16")

1шт.

30

A43624

BANJO - adapter fitting

1шт.

31

A43625

TUBE - oil inlet to banjo elbow

1шт.

32

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - oil inlet tube (5/8 x 3/4 x 1/16")

2шт.

33

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING - tube port (3/8 x 1/2 x 1/16")

1шт.
