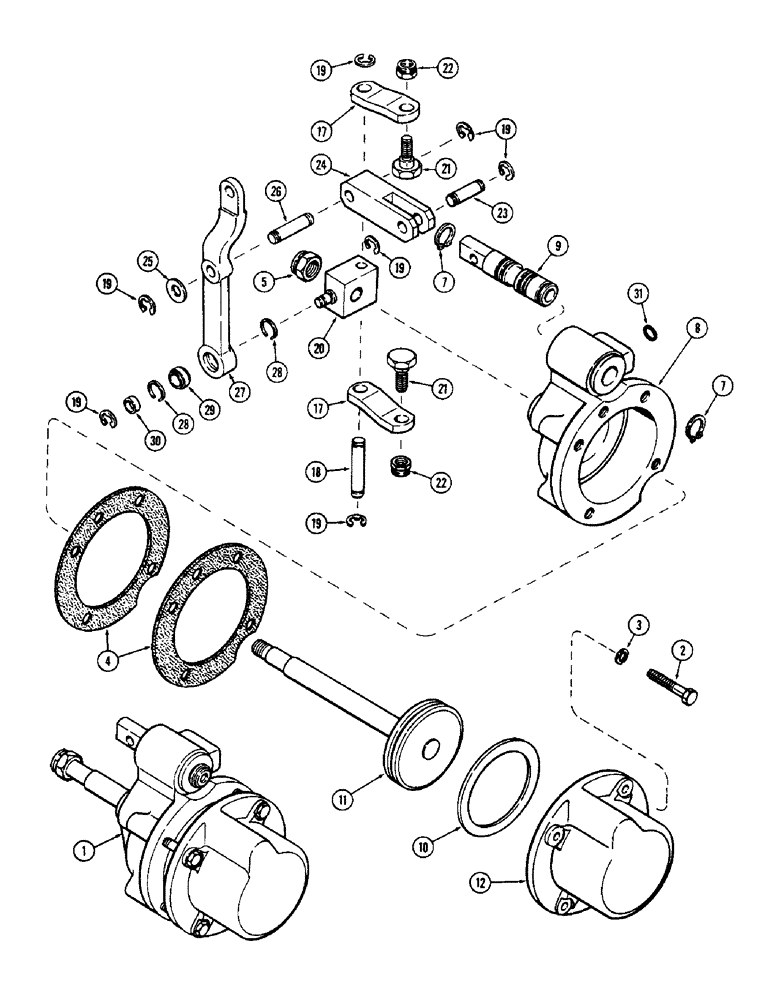

Запчасти Case 580B (124) - TAURODYNE ASSEMBLY, SERVO ASSEMBLY & ATTACHING PARTS (06) - POWER TRAIN

1

A44316

SERVO ASSY. - major service (Replaces A43460), Includes: Ref. 2 - 12

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Servo mtg. to tractor) Hex, 5/16"-18 x 2", G5

4шт.

3

A43467

WASHER -, Serial Range: servo-tractor

4шт.

4

A43461

GASKET

-, Serial Range: tractor-servo

2шт.

5

A43469

NUT - piston rod end

1шт.

A44317

SERVO ASSY. - minor service, Includes: Ref. 7 - 9

1шт.

7

A44308

RETAINING RING - control piston spool

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - piston

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve control piston

1шт.

10

A44307

RING

SEAL RING - servo piston

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - servo

1шт.

12

NSS

NOT SOLD SEPARAT

SERVO - cylinder

1шт.

17

A44310

LINK - drag

2шт.

18

A43462

CLEVIS PIN - servo piston to drag link

1шт.

19

A19811

CIRCLIP,#43, .375" Dia, E-Type

Ring, Retaining, , clevis pin (replaced A31211) #43, .375" Dia, E-Type

7шт.

20

A43468

END - piston rod

1шт.

21

A43466

BOLT - pump to servo anchor

2шт.

22

A43465

LOCKNUT - anchor plate

2шт.

23

A43463

CLEVIS PIN - pilot valve, Serial Range: link-valve

1шт.

24

A44309

LINK - control, piston

1шт.

25

A44313

SHIELD

WASHER - link pin

1шт.

26

A43464

CLEVIS PIN - pilot valve link to input control valve link

1шт.

27

A45243

LEVER

ASSY. - control (Replaces A44311, A44314 & 44315), Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

RETAINING RING - spherical bearing

2шт.

29

NSS

NOT SOLD SEPARAT

BEARING - spherical

1шт.

30

A44312

SPACER

- spherical bearing

1шт.

31

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING - tube port

1шт.
