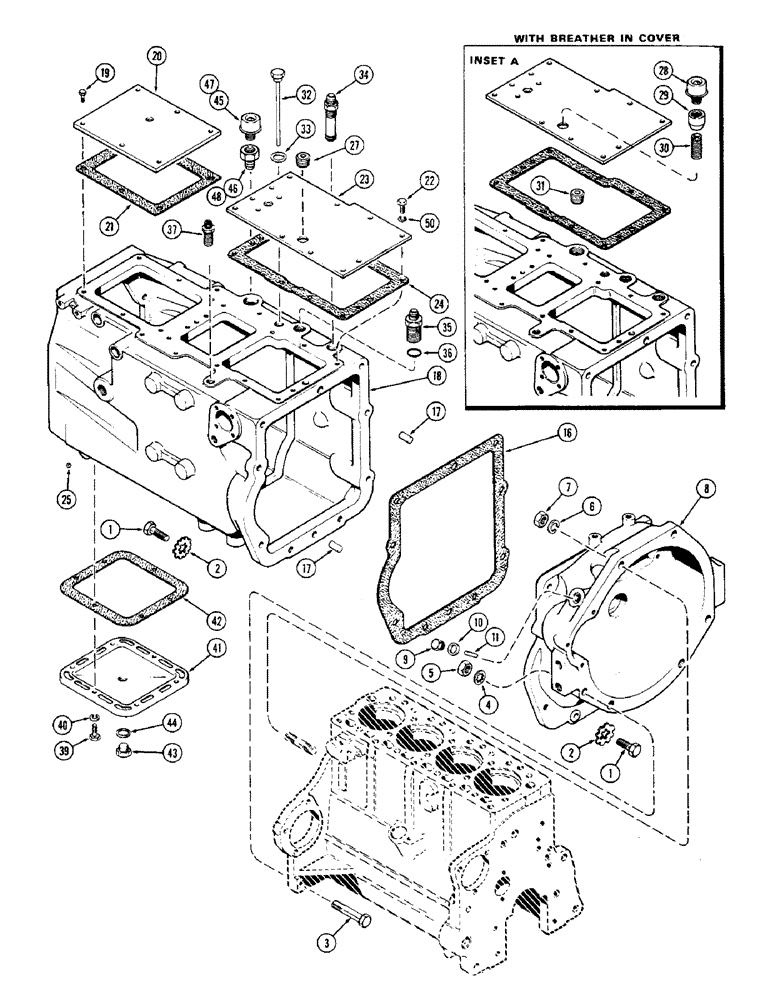

Запчасти Case 580B (120) - TORQUE TUBE HOUSING & ATTACHING PARTS (06) - POWER TRAIN

1

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

8шт.

2

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

8шт.

3

A38710

BOLT

BOLT - (5/8 x 3-1/2" N.F.) (Torque, Serial Range: tube-engine)

2шт.

4

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

5

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

2шт.

8

A39302

HOUSING ASSY. - flywheel & torque tube pump mtg. bracket (Matched set) (See Figure 126)

1шт.

9

A14280

PLUG

- timing hole

1шт.

10

A58608

GASKET

- timing hole plug

1шт.

11

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Timing pointer 1/8" x 1 1/2", Slotted

1шт.

16

A39437

GASKET

- torque tube hsg. to flywheel hsg.

1шт.

17

A29540

PIN

DOWEL - torque tube hsg. to flywheel hsg.

2шт.

18

A39301

HOUSING - torque tube

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

20

A39450

COVER - rear, torque tube housing

1шт.

21

A39451

GASKET

- torque tube hsg. rear cover

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

11шт.

23

A39731

COVER - front, torque tube housing

1шт.

24

G10876

GASKET

- torque tube hsg. front cover

1шт.

27

221-844

PLUG,Hex Soc, 1/2"-14

- pipe (1/2" hex. socket head) (Screws into front cover)

1шт.

28

A39449

BREATHER - (Screws into front cover) (See inset A)

1шт.

29

221-329

X

COUPLING - (1/2" P.T.)

1шт.

30

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - (1/2 x 2-1/2") (Replaces 221-190)

1шт.

31

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe (1/2" sq. sckt. hd.) (Screws into torque tube hsg.)

1шт.

32

A39445

DIPSTICK

ROD - dipstick

1шт.

33

A58608

GASKET

- dipstick

1шт.

34

A39443

FITTING - bulkhead, Serial Range: cooler-pump

1шт.

35

A39444

FITTING - bulkhead, make up pump to rate valve & cooler

1шт.

36

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - bulkhead (3/4 x 15/16 x 3/32")

1шт.

37

A39442

FITTING - bulkhead, rate valve to Servo valve

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

40

92-6

LOCK WASHER,3/8"

6шт.

41

A39438

COVER - installation & oil drain

1шт.

42

A39439

GASKET

- installation cover

1шт.

43

A14280

PLUG

- drain (3/4" N.F.)

1шт.

44

A58608

GASKET

- drain plug

1шт.

45

A75179

BREATHER

VENT - screws into torque tube hsg. (3/4" P.T.) (1st used trans. ser. no. 2402821)

1шт.

46

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducer (1" P.T.) (1st used trans. ser. no. 2402821)

1шт.

47

A39449

VENT - screws into torque tube hsg. (Used prior to trans. ser. no. 2402821)

1шт.

A39449 vent - This part has been retired. Use item #45 - A75179 vent.

1шт.

48

221-64

BUSHING - reducer (1" P.T. to 1/2" P.T.) (Used prior to trans. ser. no. 2402821)

1шт.
