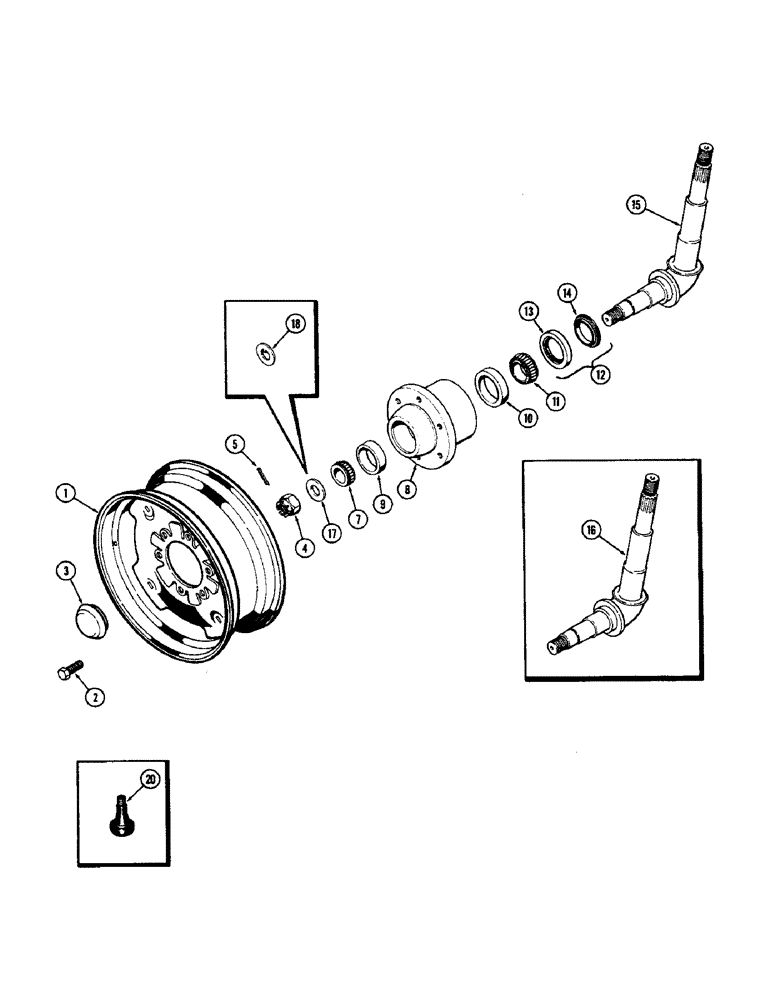

Запчасти Case 580B (118) - FRONT WHEELS AND HUB (05) - STEERING

1

A39117

WHEEL

- front (Takes 7.50 x 16 tire) (Replaces A39528)

2шт.

1

A39118

RIM

WHEEL - front (Takes 11 x 16 tire) (Replaces A39529)

2шт.

2

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Lug, front wheel (Replaces A62567)

16шт.

3

A29425

CAP

- hub, front wheel

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - (1-1/8" N.F. slotted hex.)

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

7

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing, front wheel

2шт.

8

A51157

HUB

- front wheel (1st used trac. ser. no. 8697445)

2шт.

8

A39144

HUB

- front wheel (Used prior trac. ser. no. 8697445)

2шт.

9

A27631

CUP

- outer bearing, front wheel

2шт.

10

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing, front wheel

2шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing, front wheel

2шт.

12

A57250

OIL SEAL

KIT - oil seal, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - oil, outer, retainer

2шт.

14

NSS

NOT SOLD SEPARAT

SEAL - oil, inner, retainer

2шт.

15

A135648

SPINDLE

- wheel (w/o key way & identification groove) (Replaces A39821)

2шт.

16

A57248

SPINDLE

- front wheel w/keyway) (Order A135648 spindle & A62918 washer)

2шт.

17

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- wheel spindle (1-9/64 x 2 x 3/16") (Used w/A39821 wheel spindle)

2шт.

18

A26789

BEARING WASHER

WASHER - wheel spindle (w/tang) (Used w/A57248 front wheel spindle)

2шт.

20

A38261

VALVE

- tubeless tire

2шт.
