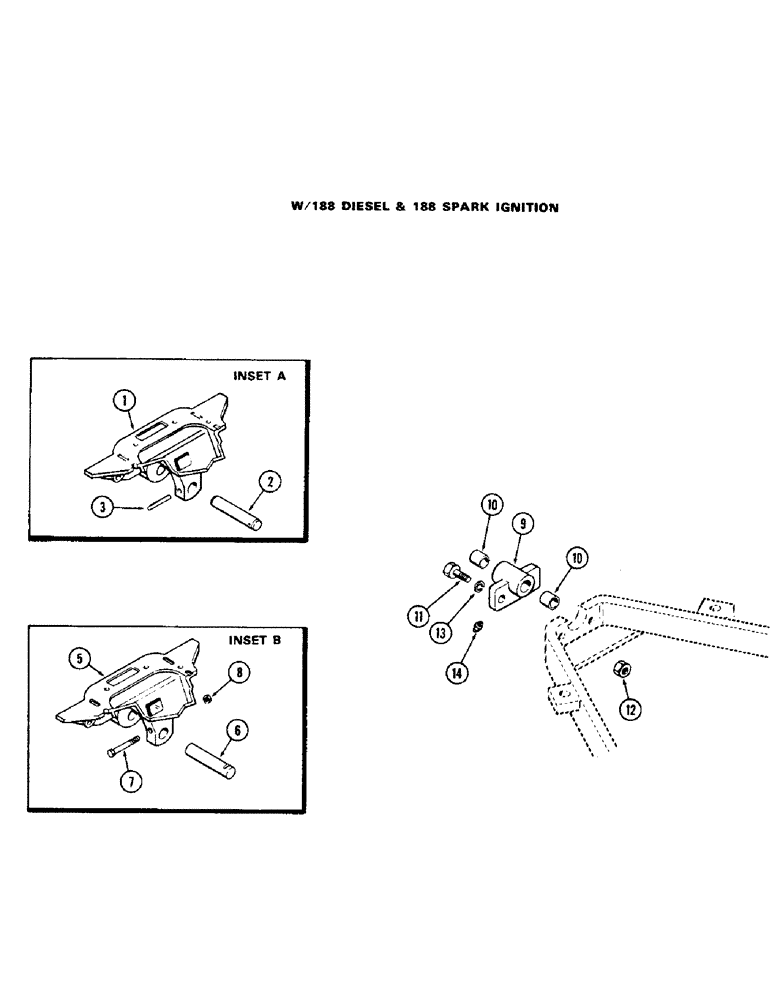

Запчасти Case 580B (117A) - FRONT AXLE REAR PIVOT (05) - STEERING

1

A38425

PAN

- oil (Used w/A51356 radius rod rear pivot pin & 135-361 groove pin) (See inset A) (Order 1-A51539 oil pan, 1-A51537 pivot pin, 1-26-544 bolt & 1-131-351 nut)

1шт.

2

A51356

PIN

- rear, radius rod (Replaced A29725)

1шт.

3

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - groove (1/4 x 2", type 3)

1шт.

5

A51539

PAN

- oil (Used with A51537 pivot pin, 26-544 bolt & 131-351 nut) (See inset B)

1шт.

6

A51537

PIN

- radius rod rear pivot

1шт.

7

26-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

- (5/16 x 2-3/4" N.C. hex.)

1шт.

8

131-351

LOCK NUT,5/16"-18, GA

NUT - lock (5/16" N.C. hex.)

1шт.

9

A38199

PIVOT

ASSY. - front, radius rod, Includes: Ref. 10

1шт.

10

A29944

BUSHING

- radius rod front pivot

2шт.

11

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Support to engine Hex, 5/8"-11 x 2 1/4", G5

2шт.

12

25-1010

NUT,5/8"-11, G5

2шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube (1/8" P.T. x 7/8", 45 degrees)

1шт.
