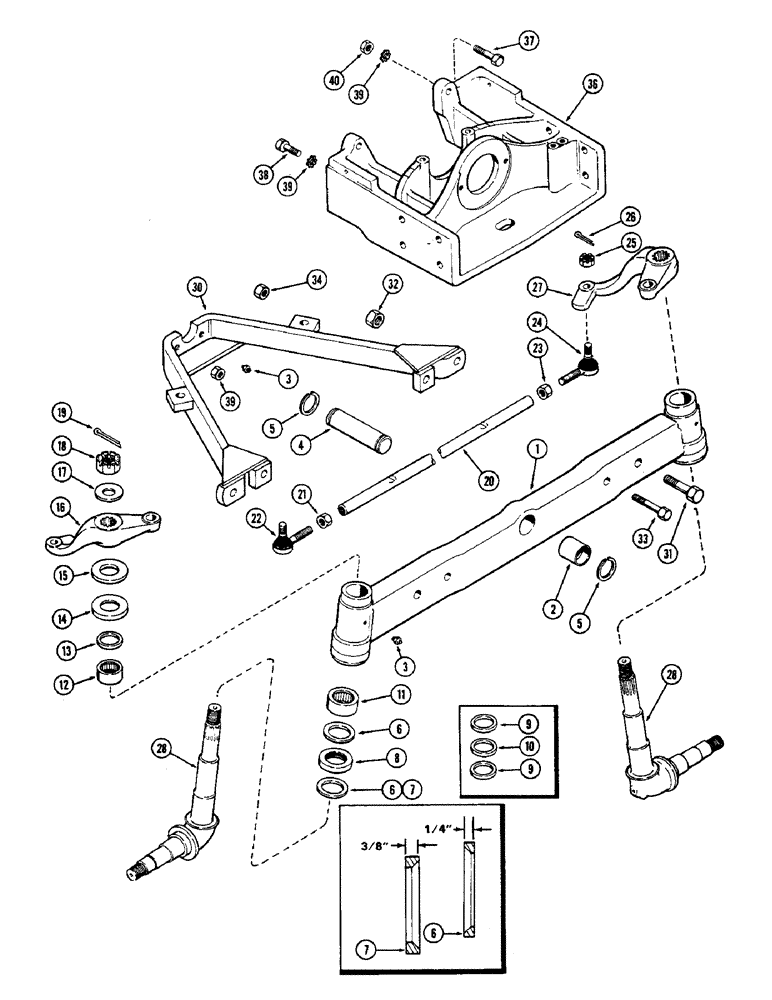

Запчасти Case 580B (116) - FRONT END CASTING AND FRONT AXLE (05) - STEERING

1

A38382

AXLE, FRONT

AXLE ASSY. - front, Includes: Ref. 2

1шт.

2

A36282

BUSHING,44.3mm ID x 56.21mm OD x 50.8mm L

- pivot

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube (1/8" P.T., straight)

3шт.

4

A38384

PIN,44.09mm OD x 168.4mm L

- pivot, front axle

1шт.

5

A27085

RING

SNAP RING - front axle pivot pin

2шт.

6

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

- thrust (1/4" thick.See inset) (See ref. 7)

4шт.

7

A44603

BEARING WASHER,50.93mm ID x 66.55mm OD x 9.53mm Thk

WASHER - thrust (3/8" thick. See inset) (Used under thrust bearing trac. ser. nos. 8711518 thru 8716638)

2шт.

8

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust (2 x 2-15/16 x 5/8") (See ref's. 9 & 10)

2шт.

9

NSS

NOT SOLD SEPARAT

WASHER - thrust (Prod. only) (Order A27602)

4шт.

10

NSS

NOT SOLD SEPARAT

WASHER - thrust (Prod. only) (Order A27602)

2шт.

11

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle lower (2 x 2-3/8 x 1")

2шт.

12

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, upper (1-3/4 x 2-1/8 x 1")

2шт.

13

A27754

OIL SEAL

- oil, upper (1-3/4 x 2-1/8 x 3/16")

2шт.

14

A51533

GUARD

SHIELD - dust (Replaces A35344)

2шт.

15

A35345

SHIM,.0359" Thk

Front wheel spindle (#20 gauge) .0359" Thk

1шт.

15

A35346

SHIM,.0598" Thk

Front wheel spindle (16 gauge) .0598" Thk

1шт.

15

A35861

SHIM,.0149" Thk

Front wheel spindle (28 gauge) .0149" Thk

1шт.

16

A37926

ARM

- steering (R.H.)

1шт.

17

A35047

WASHER

- front axle spindle nut (1-3/16 x 2-1/2 x 5/32")

2шт.

18

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - (1-1/8" N.F. slotted hex., thick) (Arm to spindle)

2шт.

19

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Nut to spindle 3/16" x 1 3/4"

2шт.

20

A39120

TIE-ROD

TUBE - tie rod

1шт.

21

G49084

JAM NUT

- lock, R.H. thread, tie rod end

1шт.

22

G45368

END ASSY.

END - R.H., tie rod

1шт.

23

G49085

JAM NUT

- lock, L.H. thread, tie rod end

1шт.

24

G45369

END ASSY.

END - L.H., tie rod

1шт.

25

25-139

SLOTTED NUT,9/16"-18, G5

NUT - (9/16" N.F. slotted hex.) (Tie rod to arm)

2шт.

26

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Nut to tie rod 1/8" x 1 1/4"

2шт.

27

A37927

ARM

- steering (L.H.)

1шт.

28

REF

INSTRUCTION

SPINDLE - wheel (Order from pg. 118)

2шт.

30

A36283

ROD

- radius

1шт.

31

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

(Radius rod to axle) Hex, 1"-8 x 4", G5

2шт.

32

25-1616

NUT,1"-8, G5, Hvy

- (1" N.C. hex., heavy)

2шт.

33

15-1264

X

BOLT - (3/4 x 4" N.C. round hd.) (Radius, Serial Range: rod-axle)

2шт.

34

25-1012

NUT,3/4"-10, G5

2шт.

36

A39319

SUPPORT - front axle & radiator

1шт.

37

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

(Pivot to radius rod) Hex, 5/8"-11 x 2 1/4", G5

2шт.

38

A38303

BOLT

BOLT -, Serial Range: support-engine

2шт.

39

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.

40

25-1610

NUT,5/8"-11, G5, Hvy

- (5/8" N.C. hex., heavy)

2шт.
