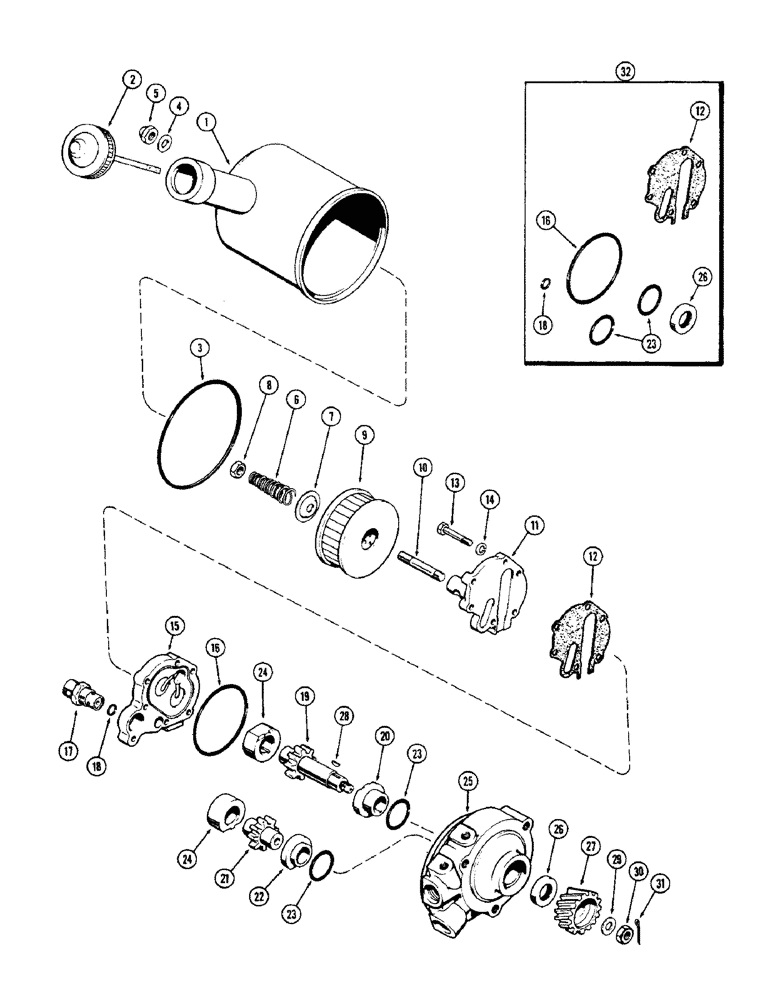

Запчасти Case 580B (112) - A36559 POWER STEERING PUMP, HYDROSTATIC STEERING (05) - STEERING

A36559

PUMP

ASSY. - power, complete, Includes: Ref. 1 - 31

1шт.

1

A35951

RESERVOIR

- oil

1шт.

2

A35967

GAUGE

CAP - reservoir (Includes dipstick)

1шт.

2

A35967AM

DIPSTICK

CAP - reservoir (Includes dipstick)

1шт.

3

A35965

O-RING,2.87mm Thk x 120.27mm ID

GASKET - reservoir

1шт.

4

A42164

WASHER,9.93mm ID x 25.4mm OD x 2.31mm Thk

- reservoir nut (Replaced A35961)

1шт.

5

129-525

CROWN NUT,Crown, 3/8"-16

- reservoir (3/8" N.C. acorn)

1шт.

6

A35963

SPRING

- element tension

1шт.

7

A35962

CAP

SEAT - element spring

1шт.

8

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.C. hex., jam

1шт.

9

A42242

FILTER, ELEMENT

ELEMENT - filter (Metal)

1шт.

10

A35952

STUD

- reservoir (3/8" N.C. x 2-3/8")

1шт.

11

A35950

COVER

- pump, rear

1шт.

12

A35966

GASKET

- rear cover

1шт.

Part of seal kit pump P/N A35970

1шт.

13

A35964

BOLT (SPREADER)

BOLT - cover, 1/4 x 1-1/2" N.C. hex.

6шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

A35949

COVER

- pump, intermediate

1шт.

16

A35959

O-RING,2.55" ID x 2.756" OD x 0.103"

"O" RING - intermediate cover (2-9/16 x 2-3/4 x 3/32")

1шт.

Part of seal kit pump P/N A35970

1шт.

17

A35968

CARTRIDGE

VALVE ASSY. - relief

1шт.

18

A42187

O-RING,0.426" ID x 0.566" OD x 0.07"

"O" RING - relief valve (5/16 x 7/16 x 1/16")

1шт.

Part of seal kit pump P/N A35970

1шт.

19

A25593

GEAR

- driven

1шт.

20

A35957

BEARING

- gear, front

1шт.

21

A35954

GEAR

- idler

1шт.

22

A35955

BEARING

- idler gear front

1шт.

23

A35958

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

"O" RING - front bearing (1-1/16 x 1-1/4 x 1/4")

2шт.

Part of seal kit pump P/N A35970

1шт.

24

A35956

BEARING

- rear

2шт.

25

A35948

BODY

- front, pump

1шт.

26

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, pump body (3/4 x 1-1/4 x 1/4")

1шт.

Part of seal kit pump P/N A35970

1шт.

27

A25594

GEAR

- pump drive

1шт.

28

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

Drive gear #3, 1/8" x 1/2", HT

1шт.

29

195-25

WASHER,3/8"

- 13/32 x 13/16 x 5/64"

1шт.

30

F18390

NUT

- gear, 3/8" N.F. slotted

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

32

A35970

KIT

SEAL KIT - pump, Incl. Refs. 12, 16, 18, 23 and 26

1шт.
