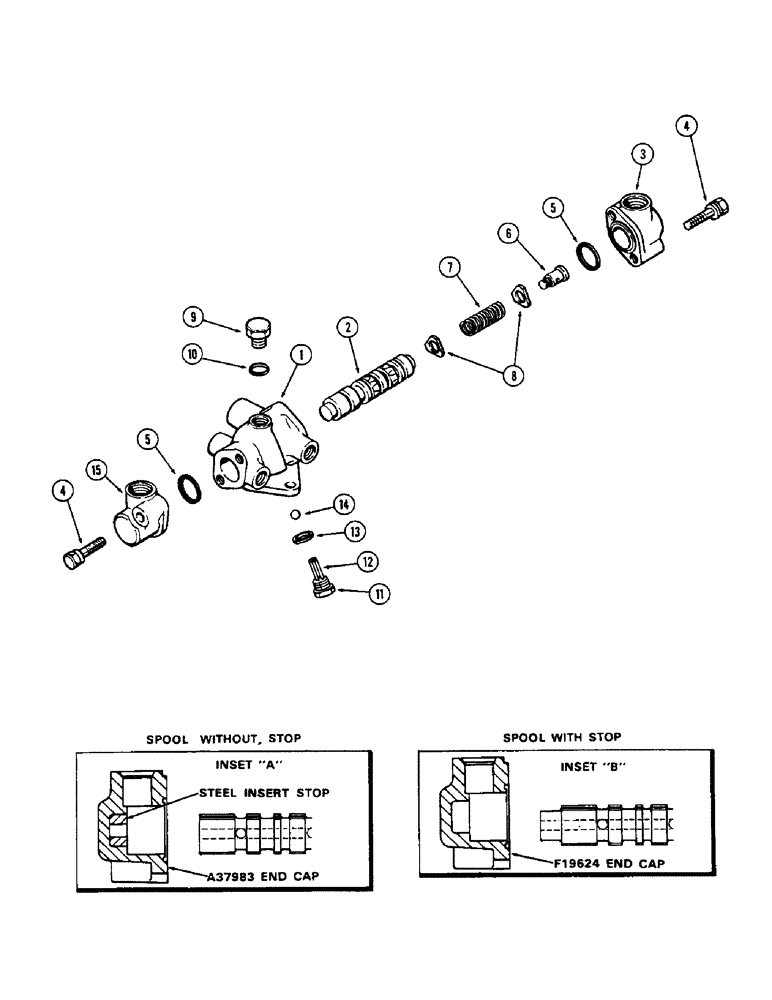

Запчасти Case 580B (110) - A37980 CONTROL VALVE, HYDROSTATIC STEERING (05) - STEERING

A37980

VALVE

ASSY. - control, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - (Order A37980)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - (Order A37980)

1шт.

3

F19624

CAP

- end (See ref. 15)

1шт.

4

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cap (Sems)

4шт.

5

F21003

O-RING,1.237" ID x 1.443" OD

SEAL - end cap (1-15/64 x 1-1/4 x 3/32")

2шт.

6

F19623

SCREW,3/8" - 24 x 15/16"

- centering

1шт.

7

F19622

VALVE SPRING

SPRING - centering

1шт.

8

F19619

WASHER

- spring retaining

2шт.

9

F83122

PLUG

ASSY. - top, valve body, Includes: Ref. 10

1шт.

10

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

"O" RING - 27/64 x 31/64 x 7/64" (Replaces F19628)

1шт.

11

F82943

VALVE

PLUG ASSY. - relief valve, Includes: Ref. 12 - 14

1шт.

12

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

13

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, replaced F19630

1шт.

14

211-7

BALL,1/4" Dia

- relief valve 1/4" Dia

1шт.

15

F19624

CAP

- end (w/o stop) (See note)

1шт.

15

A37983

CAP

- end (w/o stop) (See note)

1шт.
