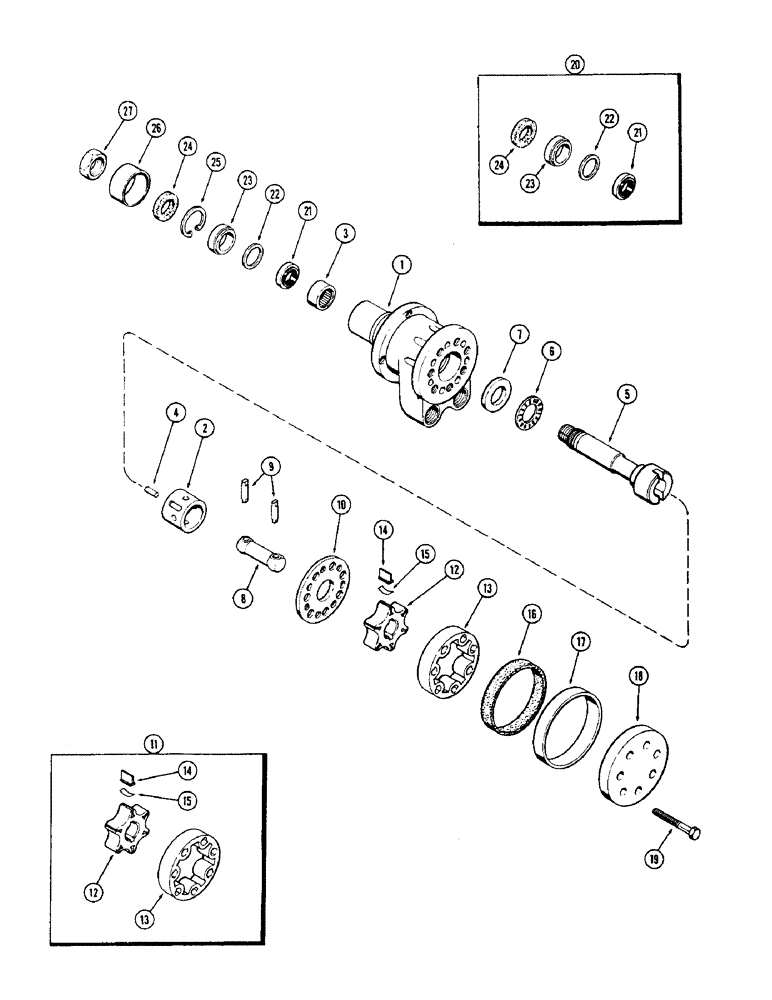

Запчасти Case 580B (108) - A39237 MANUAL PUMP, HYDROSTATIC STEERING (05) - STEERING

A39237

PUMP

ASSY. - manual, Includes: Ref. 1 - 27

1шт.

1

F82945

BODY

ASSY., Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

COMMUTATOR - (Order F82945)

1шт.

3

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle

1шт.

4

F19631

PIN

- commutator

1шт.

5

A40735

SHAFT

- coupling (Replaced F19632)

1шт.

6

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle, thrust

1шт.

7

F19634

BEARING WASHER

RACE - thrust bearing

1шт.

8

F19635

LINK

- rotor drive

1шт.

9

F19636

PIN

- link

2шт.

10

A42206

SPACER

- rotor

1шт.

11

A43520

ROTOR ASSY.

ROTOR - set, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

ROTOR - pump (Order ref. 11)

1шт.

13

NSS

NOT SOLD SEPARAT

STATOR - pump (Order ref. 11)

1шт.

14

NSS

NOT SOLD SEPARAT

VANE - rotor (Order ref. 11)

6шт.

15

A42219

SPRING

- retainer, vane

6шт.

16

84286702

RUBBER SEAL

- rotor

1шт.

17

A35787

RETAINER

- rotor seal

1шт.

18

F19641

COVER - end

1шт.

19

F19642

BOLT - (5/16 x 1-3/4" N.C. hex.)

7шт.

20

A40624

SEAL

- kit, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

PACKING - (Order ref. 20)

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - back-up (Order ref. 20)

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - spacer (Order ref. 20)

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - dust (Order ref. 20)

1шт.

25

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, thrust washer

1шт.

26

A42057

SEAL

RETAINER - dust seal

1шт.

27

A14567

JAM NUT

- coupling shaft

1шт.
