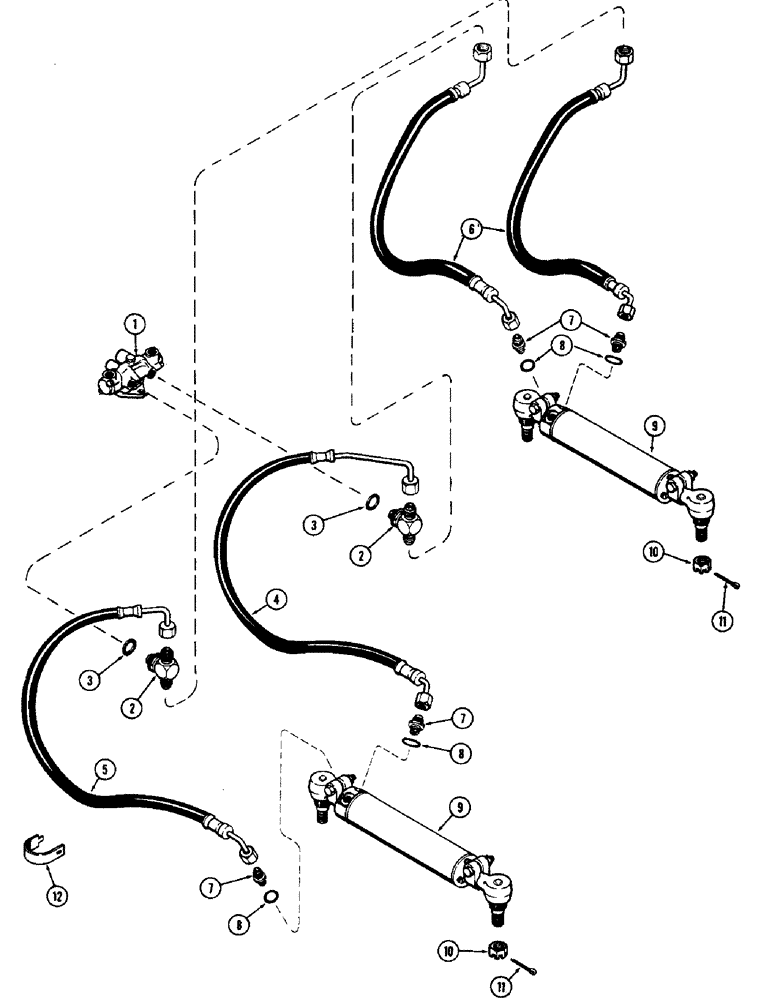

Запчасти Case 580B (106) - LOWER STEERING CIRCUITRY, HYDROSTATIC STEERING (05) - STEERING

1

A37980

VALVE

ASSY. - control, hydrostatic steering (See Figure 110 for repairs)

1шт.

2

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - hose to valve (3/8" tube x 9/16" thread), Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

A35614

HOSE

- L.H. valve port to R.H. cyl., inner port (39-5/8")

1шт.

5

A35616

HOSE

- R.H. valve port to R.H. cyl., outer port (36-1/4")

1шт.

6

A35615

HOSE

- valve tee to L.H. cylinder (32-1/2")

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSY, straight, hose to cylinder (3/8" tube x 9/16" thread), Incl. Ref. 8

4шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

REF

INSTRUCTION

CYLINDER ASSY. - hydrostatic steering (See Figures 114-115A)

2шт.

10

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - (5/8" N.F. hex. slotted)

4шт.

11

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - valve to cylinder hose

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube (1/8" P.T., straight) (In hyd. cyl.) (Not illust.)

2шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube (1/8" P.T., 67-1/2 degrees) (In hyd. cyl.) (Not illust.)

2шт.
