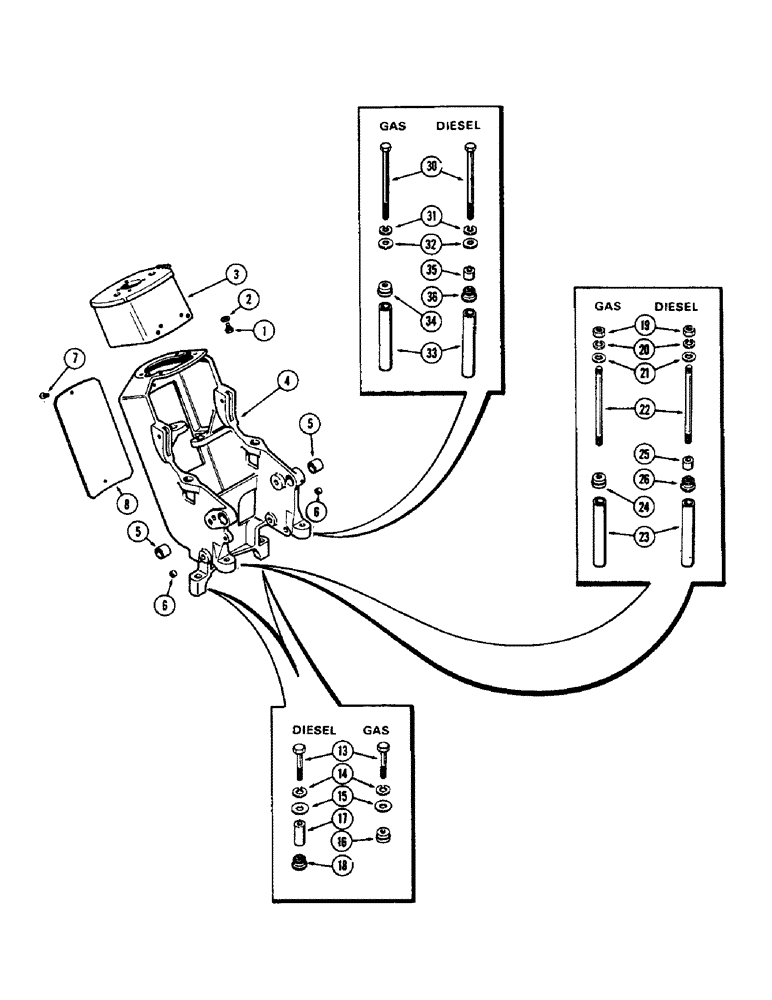

Запчасти Case 580B (105A) - STEERING COLUMN & SUPPORT, HYDROSTATIC STEERING (05) - STEERING

1

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

A39310

STEERING COLUMN

COLUMN - steering

1шт.

4

A39382

SUPPORT ASSY. - steering column, Includes: Ref. 5 and 6

1шт.

5

A37530

BUSHING

- cross shaft, brake pedal

2шт.

6

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BUSHING - speed control cross shaft

2шт.

7

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- machine (1/4 x 1/2" Phill. truss hd.)

2шт.

8

A39384

COVER - steering column support

1шт.

13

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex.) (Gas & diesel)

2шт.

14

92-6

LOCK WASHER,3/8"

(Gas & diesel) 3/8"

2шт.

15

95-6

WASHER,3/8"

- plain () (Gas & diesel) 3/8"

2шт.

16

A35627

BUSHING

- steel, column support (Gas)

2шт.

17

G49622

SPACER,5/8" Tube x 1 7/16"

- rear, column support (Diesel)

2шт.

18

G45343

COMPOSITE RING

BUSHING - rubber, column support (Diesel)

2шт.

19

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.) (Gas & diesel)

1шт.

20

92-6

LOCK WASHER,3/8"

(Gas & diesel) 3/8"

1шт.

21

95-6

WASHER,3/8"

- plain () (Gas & diesel) 3/8"

1шт.

22

A38169

STUD

- mounting, steering column support (Gas & diesel)

1шт.

23

G49624

SPACER

- front, (Gas & diesel)

1шт.

24

A35627

BUSHING

- steel (Gas)

1шт.

25

A37418

SPACER

- front (Diesel)

1шт.

26

G45343

COMPOSITE RING

BUSHING - rubber (Diesel)

1шт.

30

15-6108

BOLT - 3/8 x 6-3/4" N.C. hex. (Gas & diesel)

1шт.

31

92-6

LOCK WASHER,3/8"

(Gas & diesel) 3/8"

1шт.

32

95-6

WASHER,3/8"

- plain () (Gas & diesel) 3/8"

1шт.

33

G49624

SPACER

- front, column support (Gas & diesel)

1шт.

34

A35627

BUSHING

- steel, column support (Gasoline)

1шт.

35

A37418

SPACER

- front, column support (Diesel)

1шт.

36

G45343

COMPOSITE RING

BUSHING - rubber, column support (Diesel)

1шт.
