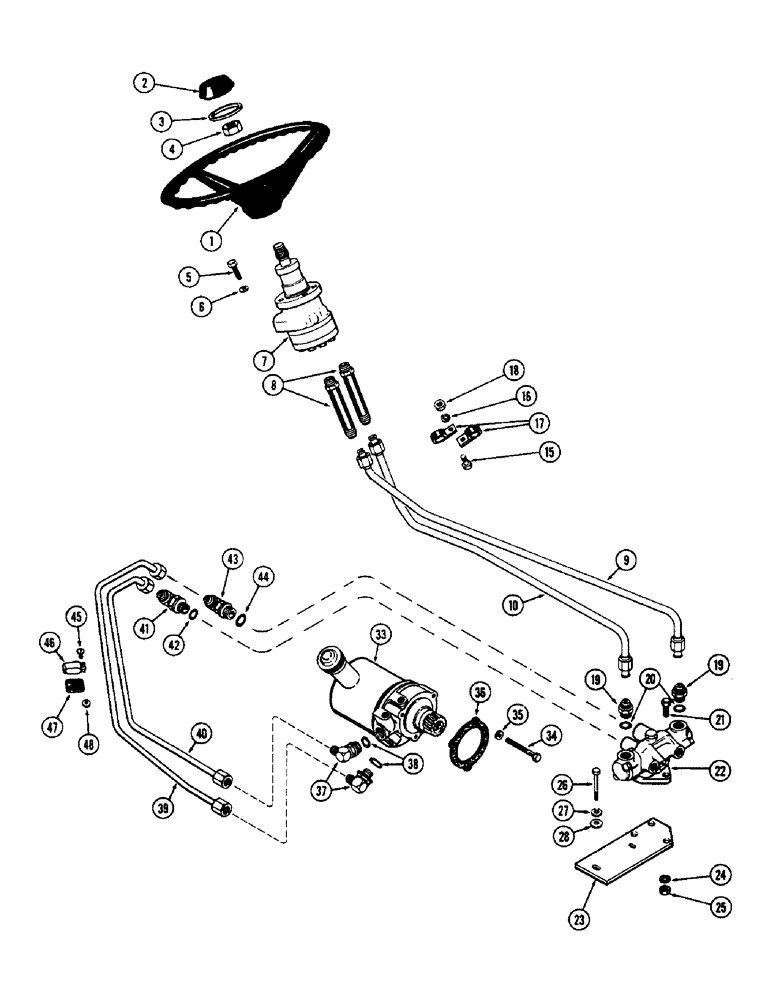

Запчасти Case 580B (104) - UPPER STEERING CIRCUITRY, HYDROSTATIC STEERING (05) - STEERING

1

A65544

STEERING WHEEL

(Replaces A61007)

1шт.

2

A62210

PLUG

MEDALLION - steering wheel

1шт.

3

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - steering wheel (1/8 x 2-1/8 x 2-3/8")

1шт.

4

A14567

JAM NUT

- steering wheel (Part of A39237 pump assy.)

1шт.

5

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.) (Pump to column)

4шт.

6

92-5

LOCK WASHER,5/16"

4шт.

7

A39237

PUMP

ASSY. - manual, hydrostatic (See Figure 108 for repairs)

1шт.

8

A39108

HOSE

- hand, Serial Range: pump-tube

2шт.

9

A39492

TUBE

- hand pump to valve (R.H.)

1шт.

10

A39493

TUBE

- hand pump to valve (L.H.)

1шт.

15

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

49838

CLAMP

- hand pump tubes

2шт.

18

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight (Tube to valve) (1/2" tube x 3/4" thread), Incl. Ref 20

2шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Valve to plate) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

22

A37980

VALVE

ASSY. - control, hydrostatic steering (See Figure 110 for repairs)

1шт.

23

A35581

SPLIT PIN/SAFETY PIN

PLATE - mounting, control valve

1шт.

24

92-6

LOCK WASHER,3/8"

3шт.

25

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

3шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Plate to torque tube) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

92-5

LOCK WASHER,5/16"

WASHER - 3/8 x 5/8 x 7/64"

2шт.

33

A36559

PUMP

ASSY. - power (See Figure 112 for repairs)

1шт.

34

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- (3/8 x 3-1/4" N.C. hex.)

3шт.

35

92-6

LOCK WASHER,3/8"

3шт.

36

A30042

GASKET

- hydrostatic gear pump

1шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Return tube to pump (Replaces A37080), Includes: Ref. 38 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

39

A35733

TUBE

- return, pump to valve (33-5/8" overall)

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

40

A35732

TUBE

- pressure, pump to valve (31-5/8" overall)

1шт.

42

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

41

A51764

ELBOW

ASSY. - tube to valve (Replaces A35613), Includes: Ref. 42

1шт.

45

174-203

SCREW,Phil Rnd Hd, #10 - 32 x 3/4"

- machine (#10 x 3/4" N.F. Phill. rd. hd.)

1шт.

43

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Tube to valve (Replaces A37080), Includes: Ref. 44 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

46

G46194

CLAMP

-, Serial Range: tube-tube

1шт.

44

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

47

G46835

GROMMET

- rubber, tube clamp

1шт.

48

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10 N.F.)

1шт.
