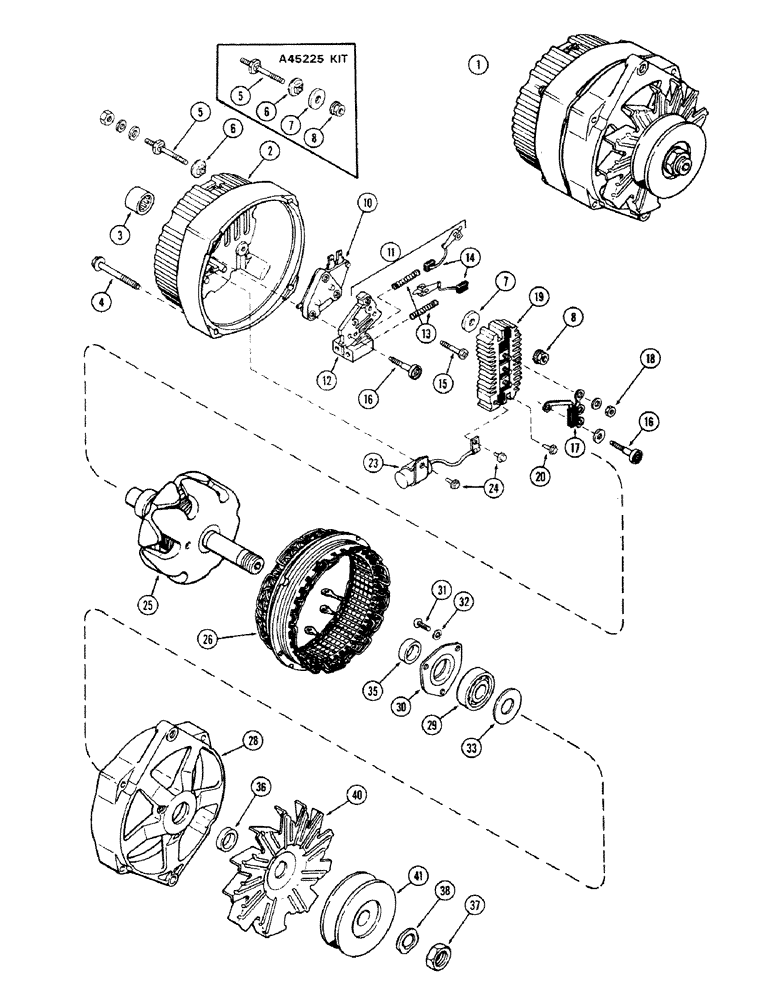

Запчасти Case 580B (101A) - ALTERNATOR, (188) DIESEL & (188B) SPARK IGNITION, DELCO-REMY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A135714
ALTERNATOR
ALTERNATOR - 37 amp. (Delco #1102866) (Prod. only) (Order A45201, A43384 fan & A51561 pulley), Includes: Ref. 2 - 38
1шт.
1
A45201
ALTERNATOR
ALTERNATOR - 42 amp. (#1100583) (Repairs only) (Less pulley & fan), Includes: Ref. 2 - 38
1шт.
1
87297244
REMAN-ALTERNATOR
Remanufactured Alternator
1шт.
1
87297245
CORE-ALTERNATOR
Return Part Number
1шт.
1
103798A1GV
ALTERNATOR
Value, 12V, 63A
1шт.
1
103798A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 volt 63 ampere
1шт.
1
103798A1C
CORE-ALTERNATOR
Return Part Number
1шт.
1
103801A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 61 AMP Alternator
1шт.
1
103801A1C
CORE-ALTERNATOR
Return Part Number\r\n, 12 VOLT, 61 AMP Alternator
1шт.
1
A45324
ALTERNATOR
SPARE PART ALTERNATOR - 12 Volt 35 AMP
1шт.
1
87746858
REMAN-ALTERNATOR
580B w/Hydrostatic Trans.
1шт.
1
104025A1C
CORE-ALTERNATOR
Return Part Number
1шт.
1
104025A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 35 AMP Alternator
1шт.
1
104025A1C
CORE-ALTERNATOR
Return Part Number\r\n, 12 VOLT, 35 AMP Alternator
1шт.
1
A47625
ALTERNATOR
ALTERNATOR - 12 Volt 72 ampere
1шт.
1
103804A1GV
ALTERNATOR
Value, 12V, 72A
1шт.
1
103804A1R
REMAN-ALTERNATOR
Reman for New PN A47625
1шт.
1
103804A1C
CORE-ALTERNATOR
Return Part Number
1шт.
1
ZAP804A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)
1шт.
1
103804A1C
CORE-ALTERNATOR
Return Part Number
1шт.
1
87297306
REMAN-GENERATOR
Remanufactured 12 VOLT, 20 AMP Generator
1шт.
1
87297307
CORE-GENERATOR
Return Part Number\r\n, 12 VOLT, 20 AMP Generator
1шт.
1
104450A1R
REMAN-GENERATOR
Remanufactured 12 VOLT, 20 AMP Generator
1шт.
1
104450A1C
CORE-GENERATOR
Return Part Number, 12 VOLT, 20 AMP Generator
1шт.
2
A45217
FRAME
FRAME ASSY. - slip ring end, Includes: Ref. 3
1шт.
3
A45218
BEARING ASSY
BEARING - roller
1шт.
4
163-6
SCREW,Hex, #10 - 24 x 1 3/4"
BOLT - thru, #10-24 x 1-3/4" hex. washer hd.
4шт.
A45225
MULTIPOLE CONNECTOR
TERMINAL KIT - battery, Includes: Ref. 5 - 8
1шт.
5
NSS
NOT SOLD SEPARAT
STUD - terminal
1шт.
6
NSS
NOT SOLD SEPARAT
INSULATION
1шт.
7
NSS
NOT SOLD SEPARAT
WASHER - insulating
1шт.
8
NSS
NOT SOLD SEPARAT
NUT ASSY.
2шт.
10
A45213
REGULATOR
REGULATOR - voltage
1шт.
11
A45222
BRUSH, COMMUTATOR
BRUSH BRUSH HOLDER ASSY. - (Includes brushes), Includes: Ref. 12 - 14
1шт.
12
NSS
NOT SOLD SEPARAT
HOLDER - brush
1шт.
13
A43678
SPRING
SPRING - brush
2шт.
14
NSS
NOT SOLD SEPARAT
BRUSH
2шт.
15
A45224
SCREW,0.164" - 32 x 1 7/64"
SCREW - brush holder, grounded (#8-32 x 1-1/16")
1шт.
16
A44223
GEAR
SCREW - brush holder, insulated
2шт.
17
A45219
DIODE ELEMENT
DIODE - trio
1шт.
19
A45220
PEDAL
RECTIFIER BRIDGE
1шт.
20
A45221
SCREW,Hex Wshr Hd, #8 - 32 x 0.99"
SCREW - rectifier bridge (#8-32 x 1")
1шт.
23
A45226
CAPACITOR
CAPACITOR ASSY. - (Includes bracket)
1шт.
24
A45228
SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc
SCREW - capacitor (#8-32 x 3/8")
2шт.
25
A45214
ROTOR
ROTOR ASSY. - (Includes slip rings)
1шт.
26
A45233
STATOR
STATOR ASSY.
1шт.
28
A45229
FRAME
FRAME - drive end
1шт.
29
A45230
BEARING ASSY
BEARING - ball, drive end
1шт.
30
A44433
PLATE
PLATE - bearing retainer
1шт.
31
173-210
SCREW,Sl Rnd Hd, #10 - 24 x 3/8"
SCREW - bearing plate, #10-24 x 3/8" rd. hd.
4шт.
32
195-512
WASHER,#10
WASHER - 7/32 x 7/16 x 1/16"
4шт.
33
A45232
WASHER
WASHER - grease slinger, bearing
1шт.
35
A44522
COLLAR
COLLAR - inside, rotor shaft (43/64 x 29/32 x 23/64")
1шт.
36
A72047
COLLAR
COLLAR - outer, rotor shaft (43/64 x 7/8 x 13/64")
1шт.
37
A25546
NUT
NUT - pulley &, Serial Range: fan-shaft
1шт.
38
R16171
SPRING WASHER
WASHER - lock
1шт.
40
A43384
FAN
FAN - alternator
1шт.
41
A51561
PULLEY
PULLEY - drive, alternator
1шт.
