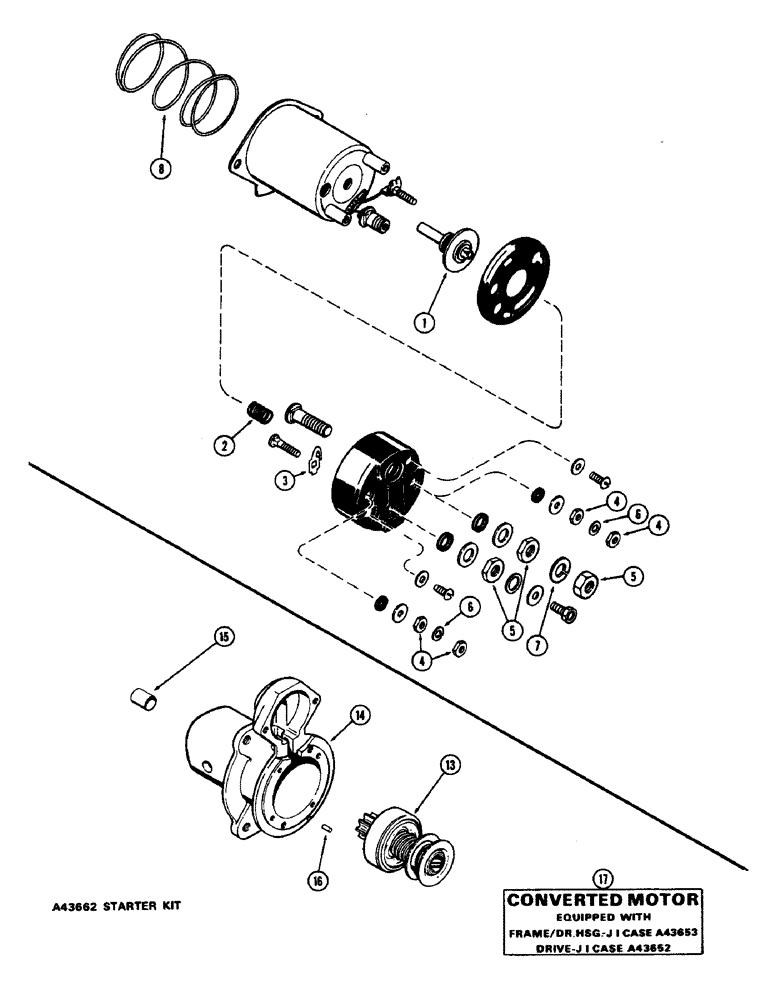

Запчасти Case 580B (096) - G44891 SOLENOID, (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

G44891

SOLENOID

ASSY. - (Delco-Remy #1114356) (See Delco-Remy dealer for all parts illustrated but not listed), Includes: Ref. 1 - 8

1шт.

1

A42061

SWITCH

CONTACT ASSY.

1шт.

2

A42059

SPRING

contact return

1шт.

3

A42060

HALF BLADE

contact

1шт.

4

129-16

NUT,#8-32

NUT, , Terminal #8-32

4шт.

5

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, , Terminal (Replaced R15015) Jam, 3/8"-16, G5

3шт.

6

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Terminal #8

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal 3/8"

1шт.

8

A40221

SPRING

plunger return

1шт.

A43662

CONVERSION KIT

REBUILD KIT - (To rebuild A38413 starter into A39839 starter), Includes: Ref. 13 - 17

1шт.

87421540

REMAN-STARTER DRIVE

580B CASE CONSTRUCTION KING WHEEL TRACTOR W/HYDROSTATIC TRANSMISSION

1шт.

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

13

A43652

DRIVE

(10 tooth pinion), a43662 rebuild starter kit

1шт.

13

87421540

REMAN-STARTER DRIVE

580B CASE CONSTRUCTION KING WHEEL TRACTOR W/HYDROSTATIC TRANSMISSION, Reman for New PN A43652

1шт.

13

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

14

A43653

HOUSING

FRAME ASSY. - drive end, a43662 rebuild starter kit, Includes: Ref. 15 and 16

1шт.

15

A40227

BUSHING

(1/2 x 9/16 x 25/32"), a43662 rebuild starter kit

1шт.

16

R15041

SPARE PART locating, a43662 rebuild starter kit

1шт.

17

321-2937

DECAL

converted motor, a43662 rebuild starter kit

1шт.
