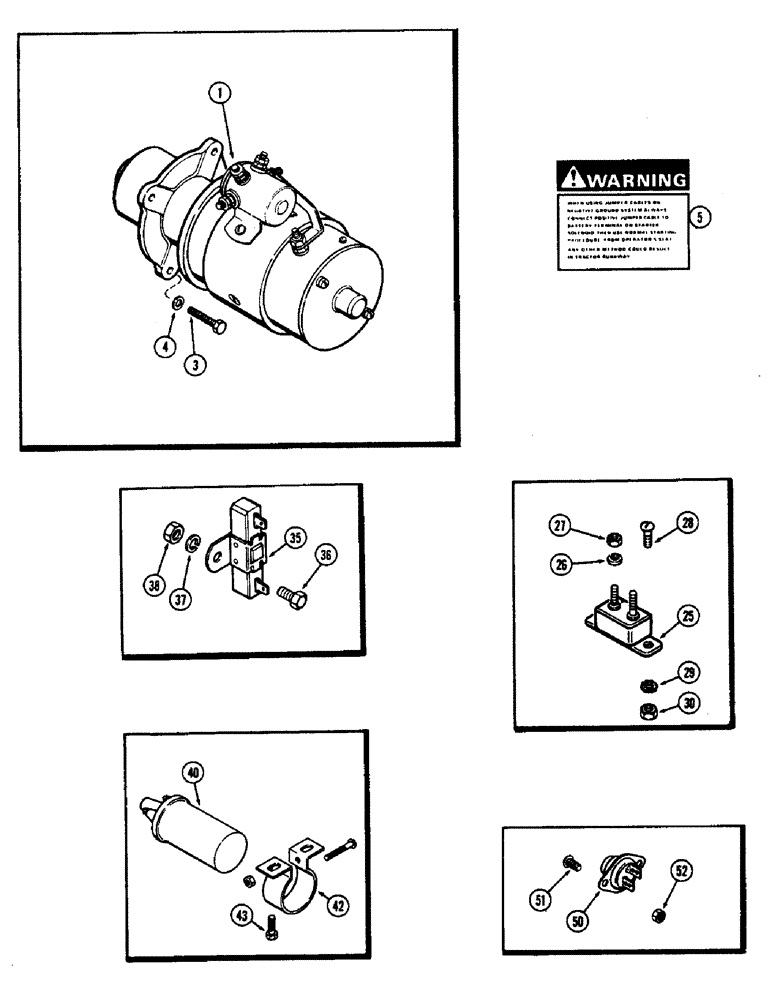

Запчасти Case 580B (092) - ELECTRICAL EQUIPMENT MOUNTING, (188) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A36854

SHIELD

STARTER ASSY. - (See Figure 98)

1шт.

3

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

4

193-72

LOCK WASHER

- lock (3/8" int./ext.)

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

321-2788

DECAL

- warning

1шт.

25

A22877

BREAKER,40A

- circuit

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

27

129-37

NUT,#10-32

2шт.

28

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- machine (#8 x 3/8" N.C. rd. hd.)

2шт.

29

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

30

129-16

NUT,#8-32

2шт.

35

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- (75 OHM)

1шт.

36

113-24

BOLT - (1/4 x 5/8" N.C. hex.)

1шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

40

A40778

COIL

ASSY. - ignition

1шт.

42

G46106

BRACKET

CLAMP ASSY. - coil

1шт.

43

175-406

SCREW,Phil Truss Hd, 5/16 - 18 x 1/2"

BOLT - (5/16 x 1/2" N.C. hex. Phillips truss hd.)

2шт.

42

A36948

SWITCH

- starter

1шт.

43

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- (#10 x 1/2" N.C. Phill. rd. hd.)

2шт.

44

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - Keps (#10 N.C.)

2шт.
