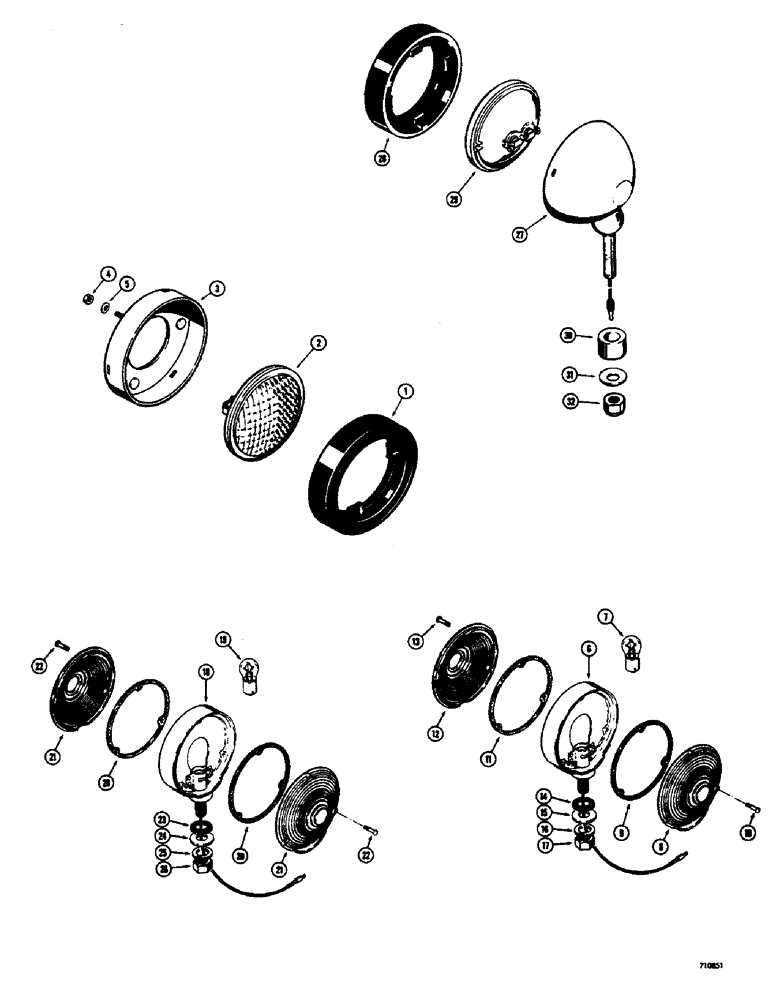

Запчасти Case 580B (091G) - LIGHTS, D30243 HEADLIGHT (04) - ELECTRICAL SYSTEMS

D30243

LAMP

HEADLIGHT ASSY. - front, Includes: Ref. 1 - 3

2шт.

1

A25213

RETAINER

- light (Used only in Hobbs assy.)

1шт.

1

D31441

RETAINER

- light (Used only in Guide Lamp assy.)

1шт.

2

D33182

LAMP

LIGHT - sealed beam

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

4

129-7

NUT,Hex, #10 - 24

- hex. ( N.C.) #10-24

6шт.

5

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

6шт.

D49733

LAMP

LIGHT ASSY. - stop & tail, Includes: Ref. 6 - 17

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - light, stop & tail, D49733

1шт.

7

T34857

BULB,C6, #1157, 12.8V

Stop & tail, D49733 C6, #1157, 12.8V

1шт.

L32213

LENS

KIT - replacement (Red), light, stop & tail, D49733, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

LENS - red, light, stop & tail, D49733

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - lens, light, stop & tail, D49733

1шт.

10

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

(#6-32 N.C. x 5/8"), light, stop & tail, D49733

3шт.

L32214

LENS

KIT - replacement (Amber), light, stop & tail, D49733, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - lens, light, stop & tail, D49733

1шт.

12

NSS

NOT SOLD SEPARAT

LENS - amber, light, stop & tail, D49733

1шт.

13

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

(#6-32 N.C. x 5/8"), light, stop & tail, D49733

3шт.

14

L32256

WASHER

BUSHING - rubber, light, stop & tail, D49733

1шт.

15

195-105

WASHER,7/16"

plain (1/2"), light, stop & tail, D49733

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Light, stop & tail, D49733 1/2"

1шт.

17

129-125

NUT,1/2"-20, G5

Light, stop & tail, D49733 1/2"-20, G5

1шт.

D49734

LAMP

LIGHT ASSY. - signal & flasher, Includes: Ref. 18 - 26

2шт.

18

NSS

NOT SOLD SEPARAT

BODY - light, signal & flasher, D49734

1шт.

19

A41264

BULB,#1156, 12V

Light, Signal & flasher, D49734 #1156, 12V

1шт.

L32214

LENS

KIT - replacement, light, signal & flasher, D49734, Includes: Ref. 20 - 22

2шт.

20

NSS

NOT SOLD SEPARAT

GASKET - lens, light, signal & flasher, D49734

1шт.

21

NSS

NOT SOLD SEPARAT

LENS - amber, light, signal & flasher, D49734

1шт.

22

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

(#6-32 N.C. x 5/8"), light, signal & flasher, D49734

3шт.

23

L32256

WASHER

BUSHING - rubber, light, signal & flasher, D49734

1шт.

24

195-105

WASHER,7/16"

plain (1/2"), light, signal & flasher, D49734

2шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Light, signal & flasher, D49734 1/2"

1шт.

26

129-125

NUT,1/2"-20, G5

Light, signal & flasher, D49734 1/2"-20, G5

1шт.

D49976

LIGHT

ASSY. - rear flood, light, Includes: Ref. 27 - 32

2шт.

27

NSS

NOT SOLD SEPARAT

BODY - , D49976 rear flood light

1шт.

28

A25213

RETAINER

rubber, D49976 rear flood light

1шт.

29

A24572

LAMP

sealed beam (Replaced A11280), D49976 rear flood light

1шт.

30

D37048

BUSHING

pivot , D49976 rear flood light

1шт.

31

195-106

WASHER,1/2"

plain, D49976 rear flood light 1/2"

1шт.

32

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

hex., lock (1/2" - 20 N.F.) , D49976 rear flood light

1шт.
