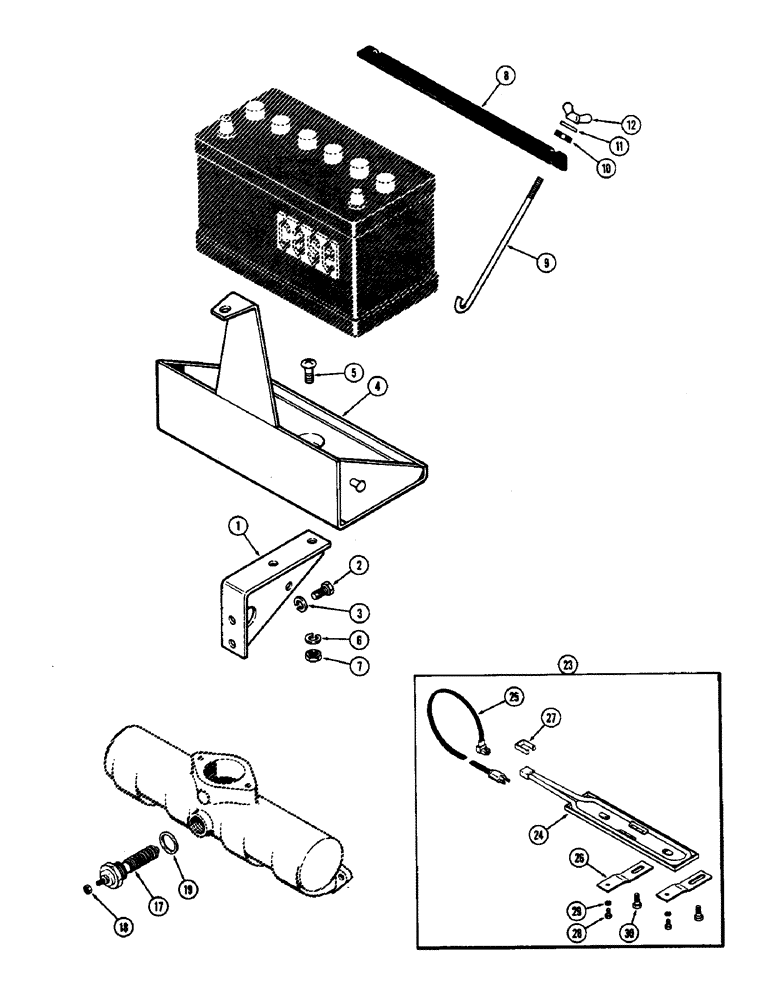

Запчасти Case 580B (091E) - BATTERY BOX SUPPORT (04) - ELECTRICAL SYSTEMS

1

A39387

BRACKET - battery box support

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to trans. case Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

D49762

WRAPPER - battery

1шт.

5

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

machine (5/16 x 3/4" Truss hd.)

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

D52497

battery hold down

1шт.

9

D49723

BOLT

battery hold down

2шт.

10

G46867

GROMMET

rubber, hold down bolt

2шт.

11

G49400

WASHER

(13/32 x 1-5/32 x 10 gauge)

2шт.

12

129-410

WING NUT,3/8"-16

wing (3/8")

2шт.

17

A37775

HEATER

intake manifold, cold weather starting aids (if equipped), Includes: Ref. 18

1шт.

18

129-503

NUT,1/4"-20, Brass

Cold weather starting aids (if equipped) 1/4"-20, Brass

1шт.

19

A20916

MANIFOLD GASKET

heater to manifold, cold weather starting aids (if equipped)

1шт.

23

A51465

KIT

hydrostatic trans. heater, cold weather starting aids (if equipped), Includes: Ref. 24 - 30

1шт.

24

A51466

HEATER

ASSY. - Hydrostatic transmission, cold weather starting aids (if equipped), Includes: Ref. 25 - 29

1шт.

25

A44484

heater, w/plugs (60"), cold weather starting aids (if equipped)

1шт.

26

A44485

heater mounting, cold weather starting aids (if equipped)

2шт.

27

A44486

cold weather starting aids (if equipped)

1шт.

28

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Cold weather starting aids (if equipped) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Cold weather starting aids (if equipped) 1/4"

2шт.

30

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

Cold weather starting aids (if equipped) Hex, 3/8"-16 x 1 3/8", G5

2шт.
