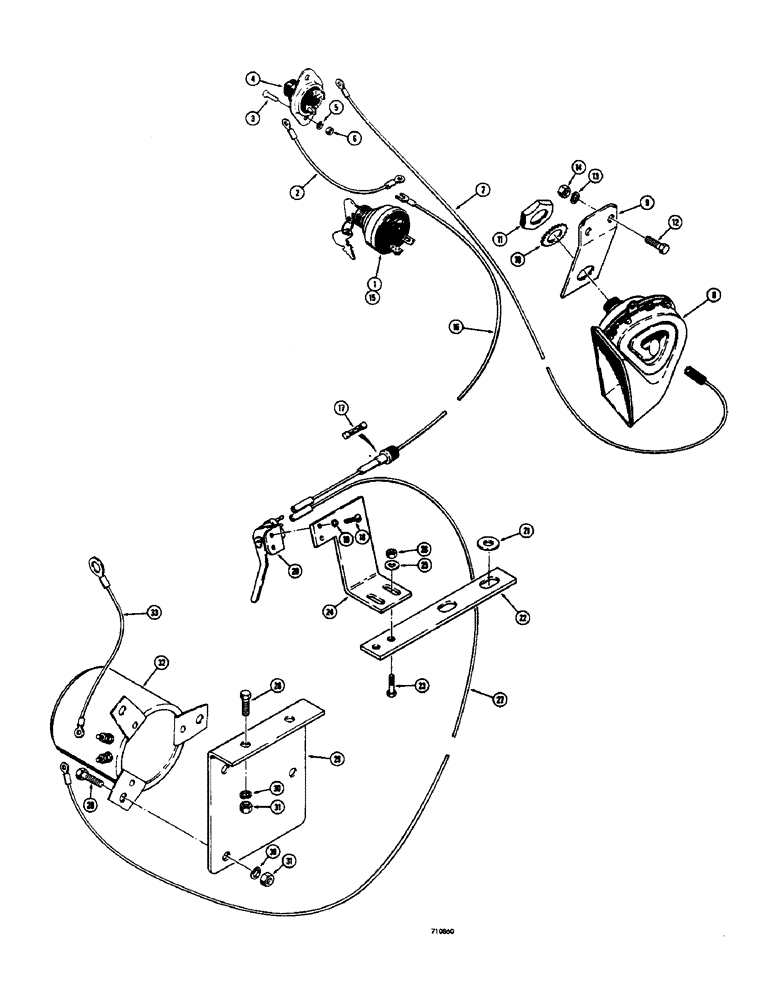

Запчасти Case 580B (091C) - HORN AND BACKUP ALARM, HORN, BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

A24511

SWITCH

- ignition w/key (Gas) (Replaced A38958) (See Figures 83A & 89A)

1шт.

2

33705

GLASS

WIRE - ignition switch to horn button

1шт.

3

173-234

SCREW - machine, round head (#5-40 N.C. x 1/2")

2шт.

4

A36948

SWITCH

- horn control

1шт.

5

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

6

129-14

NUT,#5-40

2шт.

7

A36949

WIRE - horn, Serial Range: button-horn

1шт.

8

A19581

HORN

- warning, 12 volt

1шт.

9

A36946

BRACKET

- horn mounting

1шт.

10

193-16

LOCK WASHER,Ext Tooth, 7/8"

WASHER - lock, external Shakeproof

1шт.

11

L30866

LOCK NUT

- special, Serial Range: horn-bracket

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

25-104

NUT,1/4"-20, G5

2шт.

15

A24511

SWITCH

- ignition (Replaced A38958) (See Figures 83A & 89A), backup alarm

1шт.

16

D51824

WIRE - ignition switch to alarm switch, backup

1шт.

17

223-14

FUSE,10 Amp, Type SFE

- protective, 14 amp., backup alarm

1шт.

18

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- machine, round head (#10-32 N.C. x 7/16"), backup alarm

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Backup alarm #10

2шт.

20

A33977

SWITCH

- backup alarm

1шт.

21

195-25

WASHER,3/8"

- plain (), backup alarm 3/8"

2шт.

22

D51926

PLATE - bracket to cover, backup alarm

1шт.

23

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Backup alarm Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

24

D51925

BRACKET - mounting, alarm switch, backup

1шт.

25

195-18

WASHER,1/4"

- plain (), backup alarm 1/4"

2шт.

26

25-104

NUT,1/4"-20, G5

Backup alarm 1/4"-20, G5

2шт.

27

D51823

ELECTRICAL WIRE

WIRE - alarm switch to alarm, backup

1шт.

28

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Backup alarm Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

29

D51906

BRACKET

- mounting, alarm, backup

1шт.

30

92-5

LOCK WASHER,5/16"

backup alarm 5/16"

5шт.

31

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 N.C.), backup alarm

5шт.

32

D51820

ALARM

- backup safety

1шт.

33

D51905

ELECTRICAL WIRE

WIRE - ground, alarm, backup

1шт.
