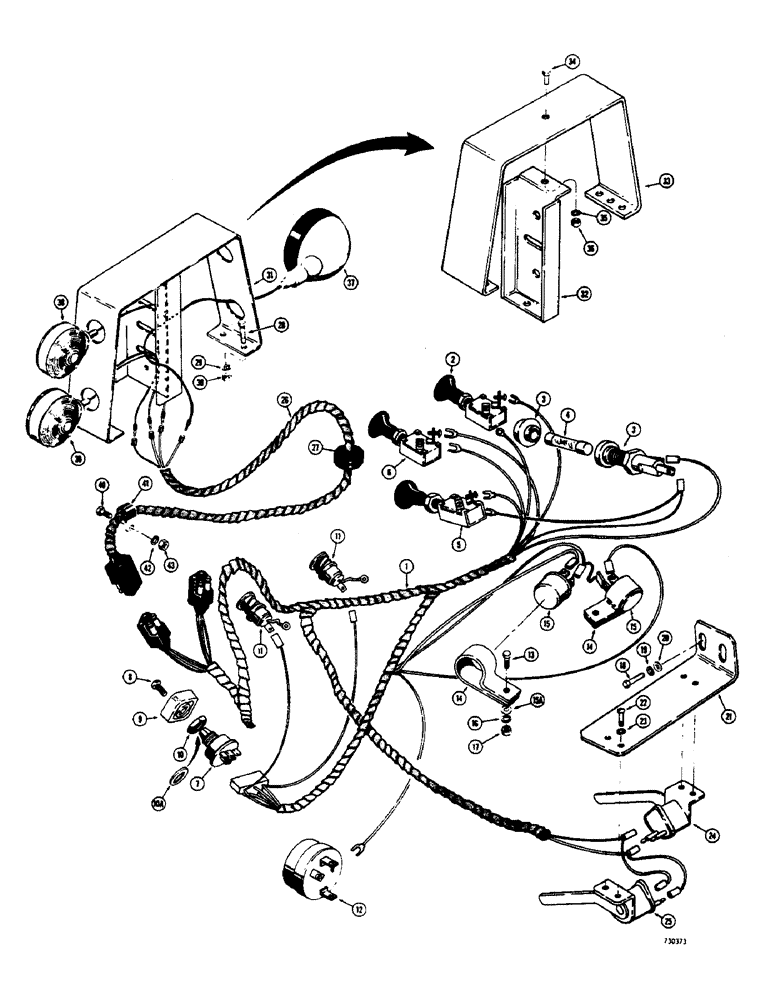

Запчасти Case 580B (091A) - FENDER MOUNTED REAR LIGHTS (04) - ELECTRICAL SYSTEMS

1

D51981

HARNESS

- main wiring, rear lights

1шт.

2

A39887

SWITCH

- headlight (See Figures 82 & 88) (Replaced G13142)

1шт.

3

A22874

HOLDER

AND FUSE - protective, Includes: Ref. 4

1шт.

4

223-20

FUSE,20 Amp, Type SFE

- 20 amp.

1шт.

5

D51977

SWITCH

- rear flood light

1шт.

6

A39887

SWITCH

- rear flasher light (Replaces A37936)

1шт.

7

D52008

SWITCH

- turn signal light

1шт.

8

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob mounting (#8-32 N.C. x 5/16")

1шт.

9

A20465

KNOB

- turn signal switch

1шт.

10

A20467

NUT

- switch to instrument panel

1шт.

11

D51979

LAMP

LIGHT ASSY. - turn signal indicator

2шт.

D54845

BULB

- (Green code)

1шт.

12

A24511

SWITCH

- engine starting, w/key (Gas) (Replaced A38958) (See Figures 83A & 89A)

1шт.

13

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

14

A34868

CLAMP

BRACKET - flasher mounting

2шт.

15

A65550

FLASHER UNIT

FLASHER - turn signal, 12 volt (Replaces A34867)

1шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

25-104

NUT,1/4"-20, G5

1шт.

18

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

21

D51976

BRACKET

- mounting, stop light switch

1шт.

22

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- machine, round head (#10-32 N.F. x 7/16")

4шт.

23

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

24

A33977

SWITCH

- stop light, L.H.

1шт.

25

A33976

SWITCH

- stop light, R.H.

1шт.

26

D49973

HARNESS - rear lights

2шт.

27

D50667

GROMMET - fender

2шт.

28

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

29

92-6

LOCK WASHER,3/8"

8шт.

30

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 N.C.)

8шт.

31

D52410

BRACKET

- light mounting, rear (Order ref. 32, 33, 34, 35, & 36)

2шт.

32

D58713

LARGE PLATE

PLATE - light mounting

2шт.

33

D58721

BRACKET

- light mounting

2шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 N.C.)

2шт.

37

D49976

LIGHT

ASSEMBLY - rear flood (Parts list Figure 91G)

2шт.

38

D49734

LAMP

LIGHT ASSEMBLY - flasher & warning (Parts list Figure 91G)

2шт.

39

D49733

LAMP

LIGHT ASSEMBLY - stop and tail (Parts list Figure 91G)

2шт.
