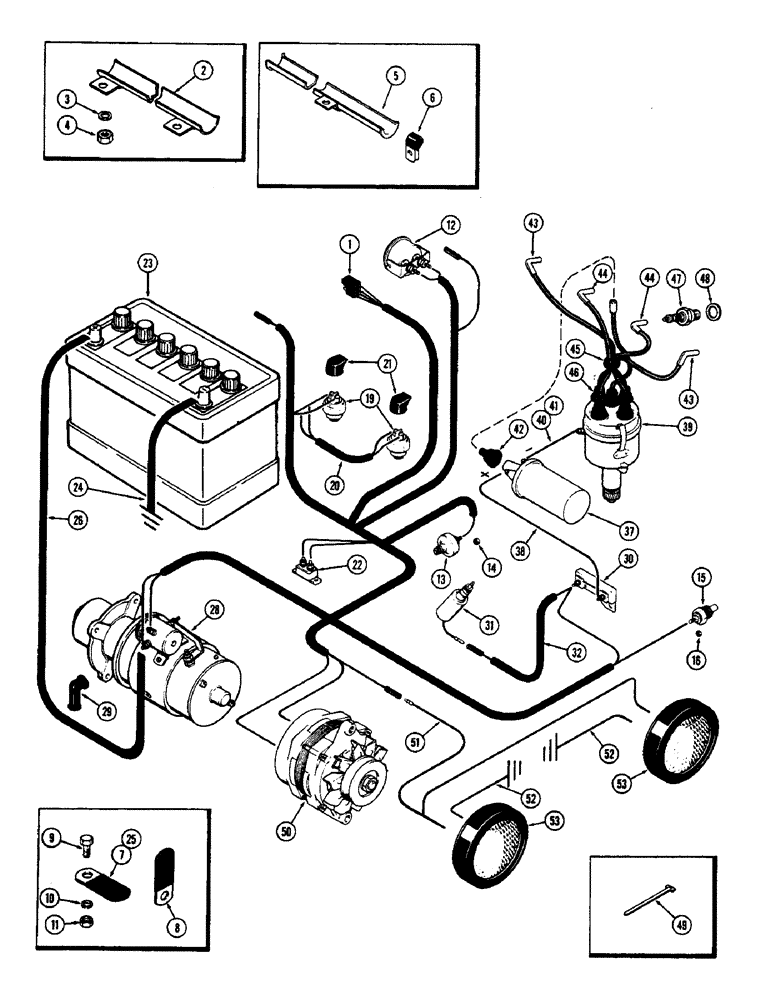

Запчасти Case 580B (090) - ELECTRICAL EQUIPMENT AND WIRING, (188) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A39392

HARNESS

ASSY. - main wiring (Use w/Prestolite alternator)

1шт.

1

A135774

HARNESS

ASSY. - main wiring (Use Delco alternator)

1шт.

2

A37506

CONDUIT - wire (w/ring) (Order A51269)

1шт.

3

195-521

WASHER,5/16", SAE

- (5/16")

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

A51269

CONDUIT - wiring harness (Replaces A37506)

1шт.

6

49838

CLAMP

- front fuel tank stud (Used w/A51269)

1шт.

7

A37179

CLIP

- main wiring harness

3шт.

8

A39394

CLIP - harness & breather hose

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.

12

A39802

AMMETER

- (60 amp.)

1шт.

13

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10-32)

1шт.

15

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

16

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10-32)

1шт.

19

A20990

SWITCH

- safety, neutral start

2шт.

20

A39741

WIRE - neutral start switch

1шт.

21

A61028

BOOT

- neutral start switch

2шт.

22

A22877

BREAKER,40A

- circuit (40 amp.) (See Figure 92)

1шт.

23

F22631

DRY BATTERY

- 12 volt (Dry)

1шт.

23

D60337

BATTERY - 12 volt (Wet charged) (Order F22631)

1шт.

A60553

CAP

- battery, non-spill vent

6шт.

24

A30393

CABLE

- battery ground

1шт.

25

A39394

CLIP - battery cable

1шт.

26

A51549

CABLE

- battery to starter solenoid (Replaced A38415)

1шт.

28

A36854

SHIELD

STARTER ASSY. - (Prestolite #MDU 7104A) (See Figure 92)

1шт.

29

A21753

CAP

BOOT - starter terminal

1шт.

30

A24504

RESISTOR

- ballast

1шт.

31

A137011

SOLENOID

ASSY. - fuel shut off (See Figure 80)

1шт.

32

A38244

WIRE -, Serial Range: resistor-solenoid

1шт.

37

A40778

COIL

ASSY. - ignition

1шт.

38

A38832

ELECTRICAL WIRE

WIRE - resistor to coil (Positive terminal)

1шт.

39

A18461

DISTRIBUTOR

ASSY. - (Autolite) (See Figure 102)

1шт.

40

G13085

ELECTRICAL WIRE

WIRE - distributor to coil (12" long) (Negative terminal)

1шт.

41

A62857

ELECTRICAL WIRE

WIRE - distributor to coil (11" long)

1шт.

42

G46803

BOOT

NIPPLE - coil wire

1шт.

43

A39186

CABLE

WIRE - (#1 & #4 spark plugs)

2шт.

44

A39187

CABLE

WIRE - (#2 & #3 spark plug)

2шт.

45

A30109

WASHER

HOLDER - spark plug & coil wire

1шт.

46

A29338

COVER

NIPPLE - spark plug & coil wire

5шт.

47

G44840

SPARK PLUG

- ignition, Includes: Ref. 48

4шт.

48

G46839

GASKET

- spark plug

1шт.

49

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - carb. wire to oil pressure wire

1шт.

50

REF

INSTRUCTION

ALTERNATOR ASSY. - (See Figure 87A)

1шт.

51

D39242

ELECTRICAL WIRE

CABLE - connecting, headlight

1шт.

52

A11768

ELECTRICAL WIRE

CABLE - ground, headlight

2шт.

53

D30243

LAMP

LIGHT ASSY. - head, front (See Figure 91G)

2шт.
