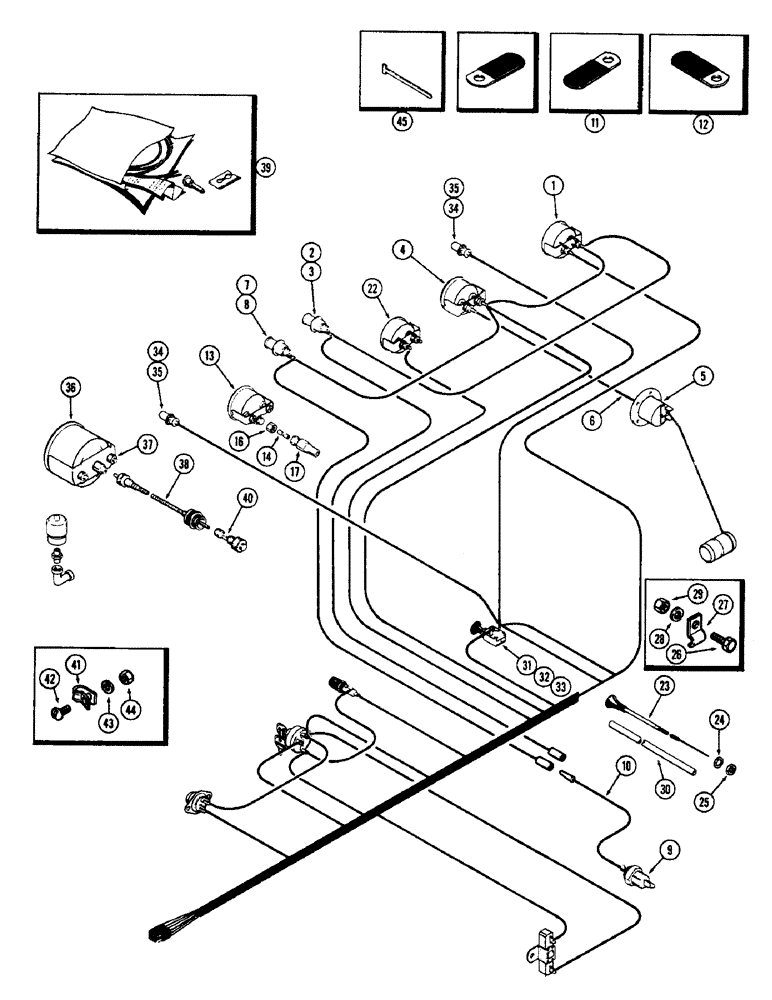

Запчасти Case 580B (088) - INSTRUMENTS AND WIRING, (188) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A39804

GAUGE

- engine water temperature

1шт.

2

A24084

LAMP

ASSY. - engine oil pressure, Includes: Ref. 3

1шт.

3

A24354

BULB

- oil pressure lamp

1шт.

4

A39805

GAUGE

- fuel

1шт.

5

A23480

SENDER UNIT

SENDER - fuel level

1шт.

6

A11783

ELECTRICAL WIRE

WIRE - fuel gauge to sender unit

1шт.

7

A39395

LIGHT ASSY.

LAMP ASSY. - trans. temperature, Includes: Ref. 8

1шт.

8

A24354

BULB

- oil pressure lamp

1шт.

9

A39396

UNIT

SENDER - trans. temp.

1шт.

10

A39397

WIRE - trans. temp. lamp to trans. temp. sender

1шт.

11

A37179

CLIP

- wire (Trans. temp. sender wire)

1шт.

12

A22880

CLIP

- wire (Trans. temp. sender wire)

2шт.

13

A39798

GAUGE

- trans. oil pressure

1шт.

14

A9366

TUBE

- trans. oil pressure gauge

1шт.

16

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - oil pressure gauge to tube

1шт.

17

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

FITTING - pressure gauge tube to valve

1шт.

22

A39802

AMMETER

- (60 ampere)

1шт.

23

A38458

CONTROL

- choke

1шт.

24

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

25

86585245

SPECIAL NUT,JAM, 5/8" - 18

- (3/8" N.F. hex., jam)

1шт.

26

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

27

A26673

CLIP

- cable to fuel tank

1шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

30

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Choke control 0.25" ID x 15.00", SAE SC716 CS

2шт.

31

A39887

SWITCH

- light (Replaced G13142)

1шт.

32

G13141

KNOB

- light switch

1шт.

33

A39888

NUT

- (3/8" N.F. hex.)

1шт.

34

A24087

LAMP BASE

LAMP ASSY. - instrument panel, Includes: Ref. 35

2шт.

35

A22349

BULB

- panel assy.

1шт.

36

A39806

TACHOMETER

ASSY.

1шт.

37

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10-32)

2шт.

38

A39404

CABLE

ASSY. - tachometer drive, Includes: Ref. 39

1шт.

39

A24523

KIT

CABLE - replacement core (Cut to length as required)

1шт.

40

A24761

SHAFT

DRIVE ASSY. - tachometer (In distributor)

1шт.

41

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tachometer cable to fuel tank (Replaces A27814)

1шт.

42

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

43

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

44

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

45

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, tach. cable to fuel tank (Replaced items 41, 42, 43 & 44)

1шт.
