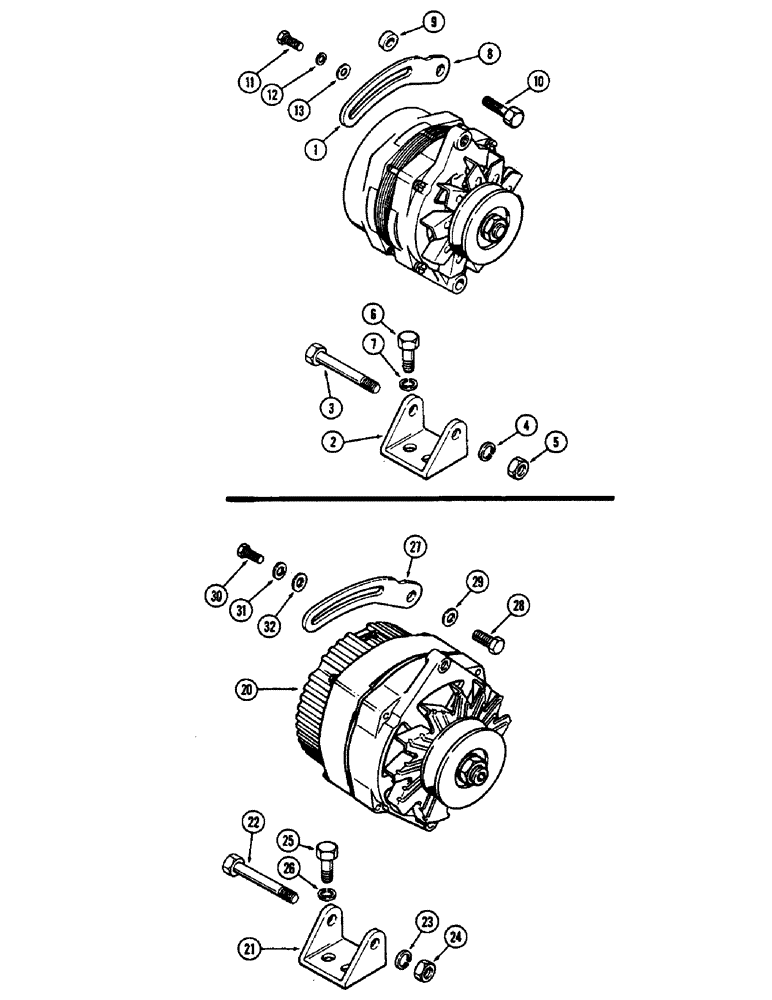

Запчасти Case 580B (087A) - ALTERNATOR MOUNTING, (188) DIESEL & (188B) SPARK IGNITION PRESTOLITE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSY. - Prestolite (See fig. 100)

1шт.

2

A38492

BRACKET

mounting, alternator

1шт.

3

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

A37017

STRAP

adjusting, alternator

1шт.

9

G11271

SPACER

strap to front cover

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

195-103

WASHER,5/16"

3/8 x 7/8 x 5/64"

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSY. - (See fig. 101A), delco remy

1шт.

21

A38492

BRACKET

mounting, delco remy

1шт.

22

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Delco Remy Hex, 3/8"-16 x 3", G5

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Delco Remy 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Delco-Remy 3/8"-16, G5

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Delco Remy Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

Delco Remy 3/8"

2шт.

27

A37017

STRAP

adjusting, delco remy

1шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Delco Remy Hex, 3/8"-16 x 2", G5

1шт.

29

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", delco remy

2шт.

30

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Delco-Remy

1шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Delco Remy 5/16"

1шт.

32

195-103

WASHER,5/16"

3/8 x 7/8 x 5/64", delco remy

1шт.
