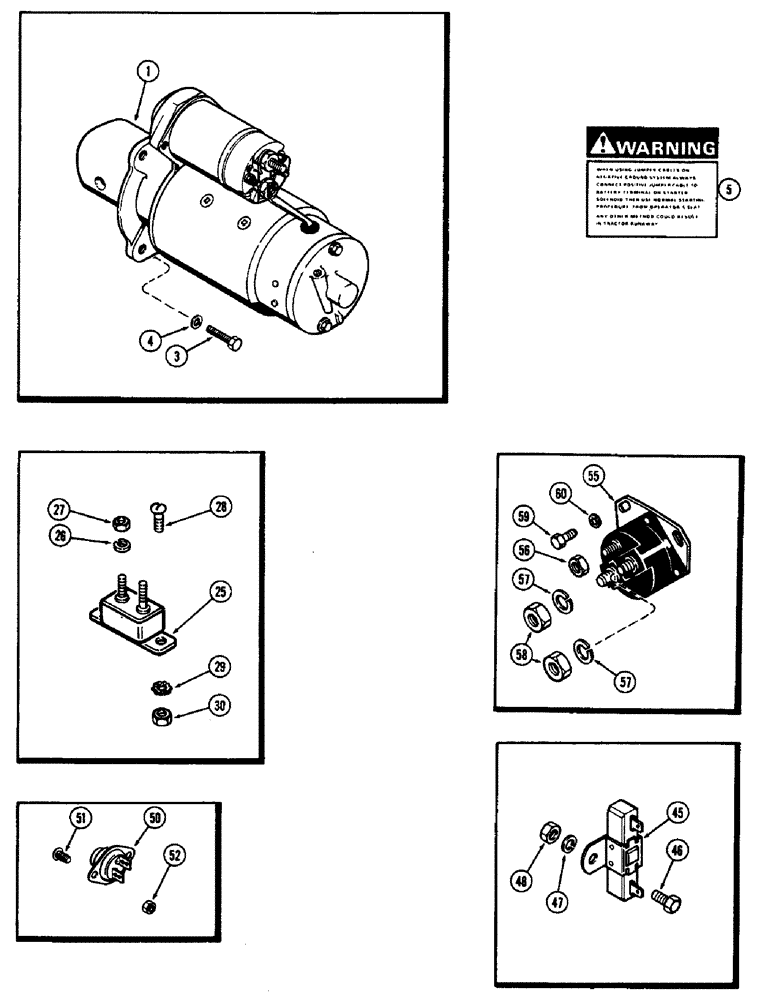

Запчасти Case 580B (086) - ELECTRICAL EQUIPMENT MOUNTING, (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A39839

STARTING MOTOR

STARTER ASSY. - (See Figure 93A)

1шт.

1

A38413

STARTER MOTOR

STARTER ASSY. - (See Figure 94)

1шт.

3

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

4

193-72

LOCK WASHER

- lock (3/8" int./ext.)

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

321-2788

DECAL

warning

1шт.

25

A22877

BREAKER,40A

circuit (40 amps)

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

27

129-37

NUT,#10-32

2шт.

28

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

machine (#8 x 3/8" N.C. rd. hd.)

2шт.

29

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

30

129-16

NUT,#8-32

2шт.

45

F22316

RESISTOR,75 Ohms 0.2 Amps DC

(75 OHM)

1шт.

46

113-24

BOLT - (1/4 x 5/8" N.C. hex.)

1шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

48

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

50

A36948

SWITCH

- starter

1шт.

51

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

(#10 x 1/2" N.C. phill. rd. hd.)

2шт.

52

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

Keps (#10 N.C.)

2шт.

55

A39079

SOLENOID

manifold heater, if euipped

1шт.

56

193-1000

NUT,Keps, w/LW,#10-32

Keps (#10 N.F. hex.), if euipped

1шт.

57

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If equipped 5/16"

2шт.

58

9635082

NUT,5/16" - 18, Gr 5

If equipped 5/16"-18, G5

2шт.

59

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

If equipped Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

60

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , If equipped Int Tooth, 1/4"

2шт.
