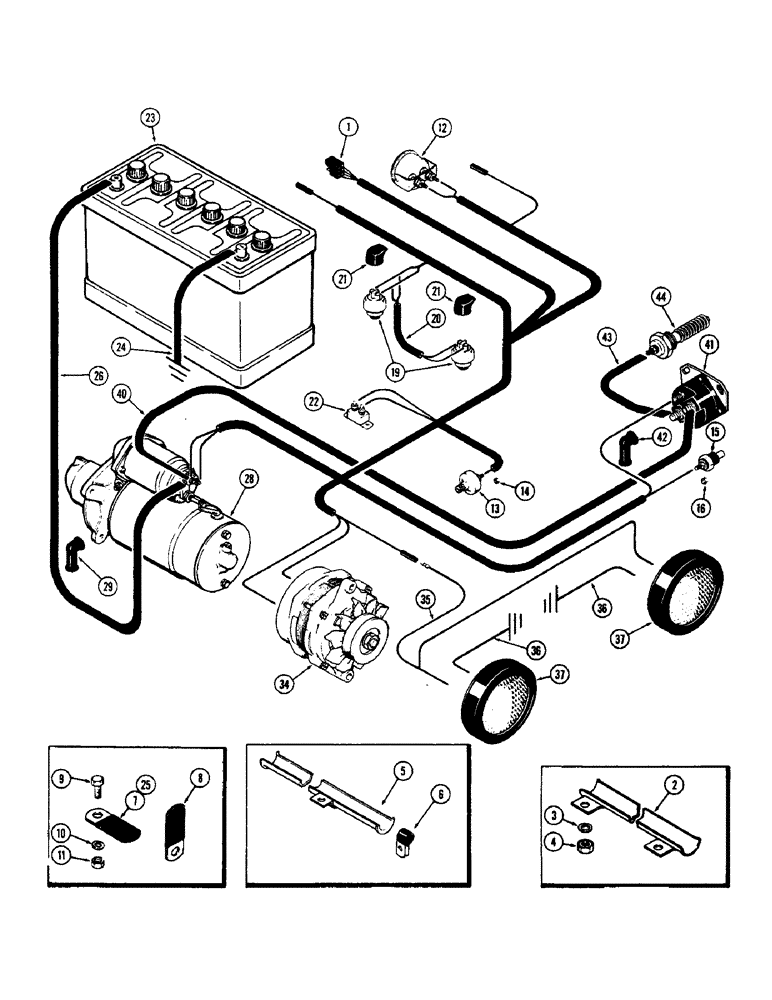

Запчасти Case 580B (084) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE, MANIFOLD HEATER (IF EQUIPPED) (04) - ELECTRICAL SYSTEMS

1

A39392

HARNESS

ASSY. - main wiring (Use w/Prestolite alternator)

1шт.

1

A135774

HARNESS

ASSY. - main wiring (Use w/Delco alternator)

1шт.

2

A37506

CONDUIT - wire (w/ring) (Order A51269)

1шт.

3

195-521

WASHER,5/16", SAE

- (5/16")

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

A51269

CONDUIT - wiring harness (Replaces A37506)

1шт.

6

49838

CLAMP

- front fuel tank stud (Used w/A51269)

1шт.

7

A37179

CLIP

- main wiring harness

3шт.

8

A39394

CLIP - harness & breather hose

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.

12

A39802

AMMETER

- (60 amp.)

1шт.

13

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10-32)

1шт.

15

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

16

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10-32)

1шт.

19

A20990

SWITCH

- safety, neutral start

2шт.

20

A39741

WIRE - neutral start switch

1шт.

21

A61028

BOOT

- neutral start switch

2шт.

22

A22877

BREAKER,40A

- circuit (40 amp.) (See Figure 86)

1шт.

23

A38411

DRY BATTERY

- 12 volt (Dry)

1шт.

23

L49990

X

BATTERY - 12 volt (Wet charged) (Order A38411)

1шт.

24

A30393

CABLE

- battery ground

1шт.

25

A39394

CLIP - battery cable

1шт.

26

A51549

CABLE

- battery to starter solenoid (Replaced A38415)

1шт.

28

REF

INSTRUCTION

STARTER ASSY. - (See page 86)

1шт.

29

A21753

CAP

NIPPLE - solenoid terminal

1шт.

34

REF

INSTRUCTION

ALTERNATOR ASSY. - (See Figure 87A)

1шт.

35

D39242

ELECTRICAL WIRE

CABLE - connecting, headlight

1шт.

36

A11768

ELECTRICAL WIRE

CABLE - ground, headlight

2шт.

37

D30243

LAMP

LIGHT ASSY. - head, front (See Figure 91G)

2шт.

40

A36896

CABLE PULLING GRIP

CABLE - starter solenoid to heater solenoid

1шт.

41

A39079

SOLENOID

- 12 volt, manifold heater (See Figure 86)

1шт.

42

A21753

CAP

NIPPLE - solenoid terminals

1шт.

43

A21483

CABLE

- heater solenoid to heater (Replaced A21482)

1шт.

44

A37775

HEATER

ASSY. - manifold (See Figure 18)

1шт.
