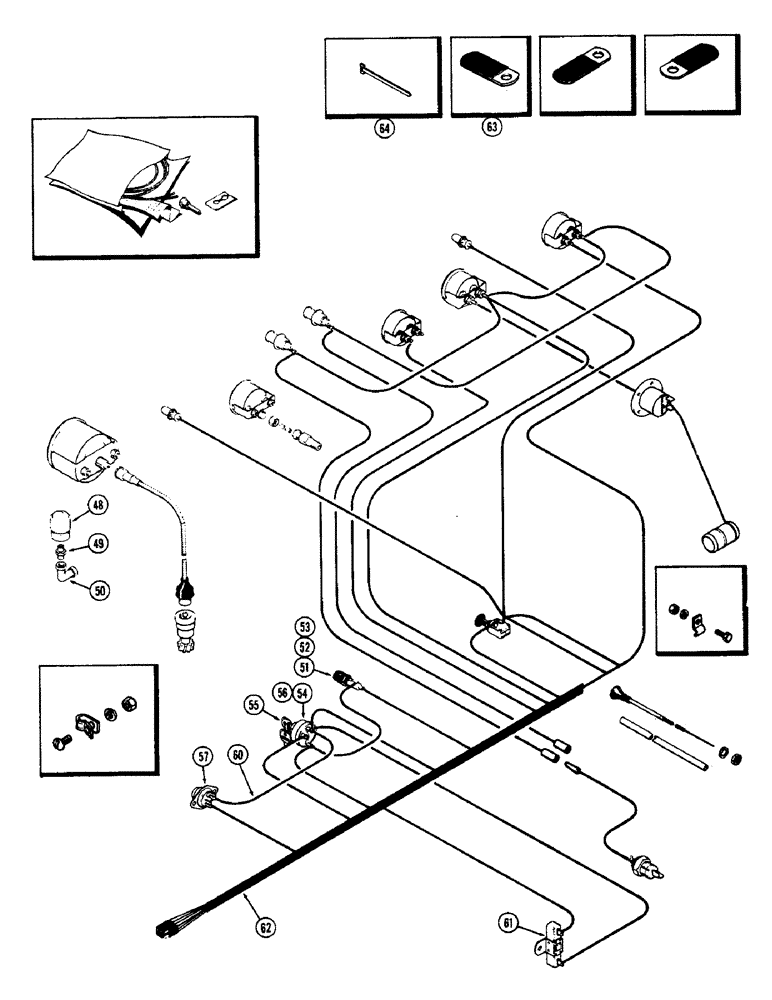

Запчасти Case 580B (083A) - INSTRUMENTS AND WIRING, (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

48

A59568

INDICATOR

- air cleaner

1шт.

49

217-194

FITTING,1/8" - 27 Male NPTF x 1/8" - 27 Male NPTF

- indicator to mtg. block

1шт.

50

222-5113

FITTING,90 Degree, 7/16"-24 x 1/8" NPTF

- 90 degrees (Tube to mtg. block)

1шт.

51

A22874

HOLDER

ASSY. - fuse, Includes: Ref. 52

1шт.

52

A10958

CAP

- fuse holder

1шт.

53

223-20

FUSE,20 Amp, Type SFE

- (20 amp.)

1шт.

54

A24511

SWITCH

ASSY - starting w/key (Gas) (Replaced A38958) Includes: Ref 55

1шт.

55

A24509

KEY

- ignition switch (Set of 2)

1шт.

56

193-62

LOCK WASHER,Int Tooth, 9/16"

WASHER, LOCK, Int Tooth, 9/16"

1шт.

57

A36948

SWITCH

- starter

1шт.

60

A39405

ELECTRICAL WIRE

WIRE - starter button to starter switch

1шт.

61

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 Ohm

1шт.

62

A39393

HARNESS

- instrument panel

1шт.

63

A39394

CLIP - instrument panel harness

2шт.

64

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - pressure, Serial Range: gauge-tube

1шт.
