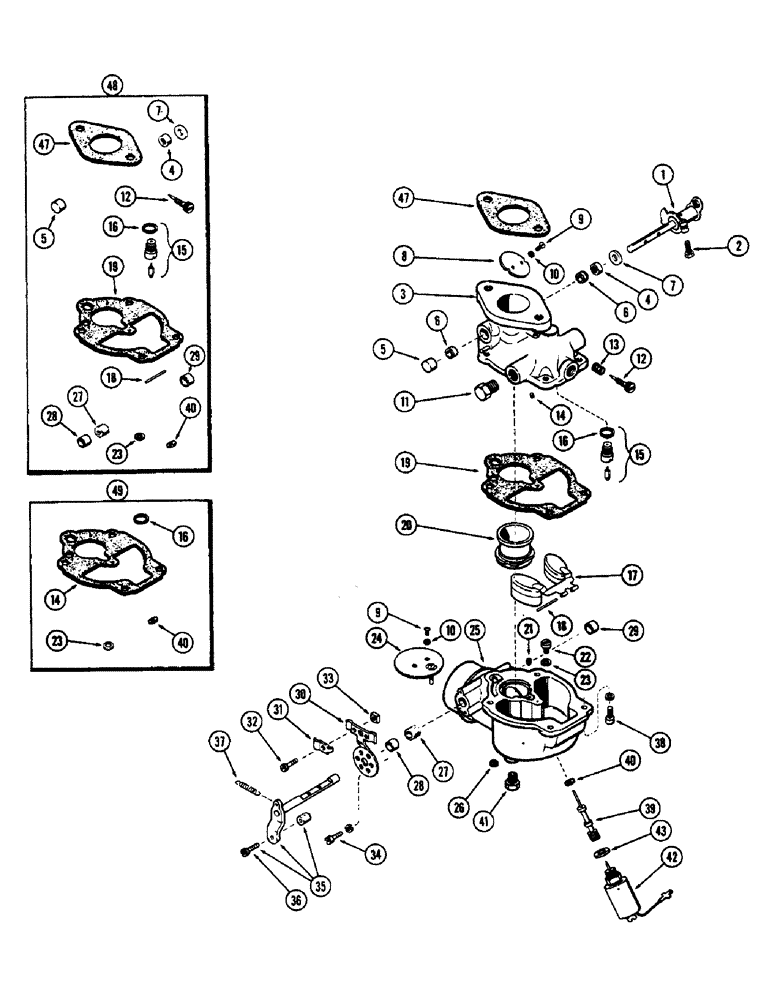

Запчасти Case 580B (080) - CARBURETOR, (188) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

A39568

CARBURETOR

ASSY., Includes: Ref. 1 - 41

1шт.

1

A43459

SHAFT

ASSY. - throttle

1шт.

2

B51581

SCREW - stop

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A39568)

1шт.

4

B51528

SEAL

- throttle shaft

1шт.

5

A40612

PLUG

- throttle shaft hole

1шт.

6

A40609

BUSHING

- throttle shaft

2шт.

7

B59360

RETAINER

WASHER - throttle shaft seal retaining

1шт.

8

B51211

PLATE

- throttle

1шт.

9

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- throttle & choke plate (#6-32 x 1/4" rd. hd.)

4шт.

10

192-105

LOCK WASHER,#6

WASHER - lock, light #6

4шт.

11

B51541

PLUG

- fuel inlet

2шт.

12

A41389

SCREW

NEEDLE - idle adjusting

1шт.

13

B51404

SPRING

- idle needle

1шт.

14

B51306

JET

- idle

1шт.

15

A40938

VALVE

& SEAT ASSY. - fuel (Matched)

1шт.

16

B51618

WASHER

- fuel valve seat

1шт.

17

B51359

FLOAT

- fuel level

1шт.

18

B51433

AXLE

- float

1шт.

19

B51471

GASKET

- bowl

1шт.

20

A25170

VENTURI

1шт.

21

B51338

TUBE

JET - well vent

1шт.

22

B51287

JET - main

1шт.

23

B51619

WASHER

- main jet

1шт.

24

B51365

PLATE

- choke

1шт.

25

B51180

BOWL

- fuel, Includes: Ref. 26 - 29

1шт.

26

B51442

FILTER

DISC - drain

1шт.

27

B51533

WASHER

- packing, choke shaft

1шт.

28

B51439

RETAINER

- packing

1шт.

29

B51509

PLUG

- choke shaft hole

1шт.

30

A42350

BRACKET ASSY. - choke, Includes: Ref. 31 - 33

1шт.

31

B51403

CLIP

- choke rod

1шт.

32

B51580

SCREW

- clip

1шт.

33

129-76

SQUARE NUT,#8 - 36

- clip screw

1шт.

34

B51458

SCREW,#8 - 32 x 0.37"

- bracket

2шт.

35

A43458

SHAFT ASSY. - choke

1шт.

36

B51579

SCREW - swivel, choke rod

1шт.

37

B51412

SPRING

- return, choke lever

1шт.

38

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

39

B51323

JET

- discharge

1шт.

40

B51610

WASHER

- discharge jet

1шт.

41

B51541

PLUG

- bowl drain

1шт.

42

A137011

SOLENOID

ASSY. - (Replaces A39569), Includes: Ref. 43

1шт.

43

B51707

GASKET

- solenoid mounting

1шт.

47

B51459

GASKET

-, Serial Range: carburetor-manifold

1шт.

48

CASA40940

KIT

- carburetor repair (Inc. ref. 4, 5, 7, 12, 15, 16, 18, 19, 23, 27 thru 29, 40 & 41)

1шт.

49

B51496

GASKET

KIT - gasket (Incl. ref. 16, 19, 23, & 40)

1шт.
