Запчасти Case 580B (078) - FUEL TANK, (188) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

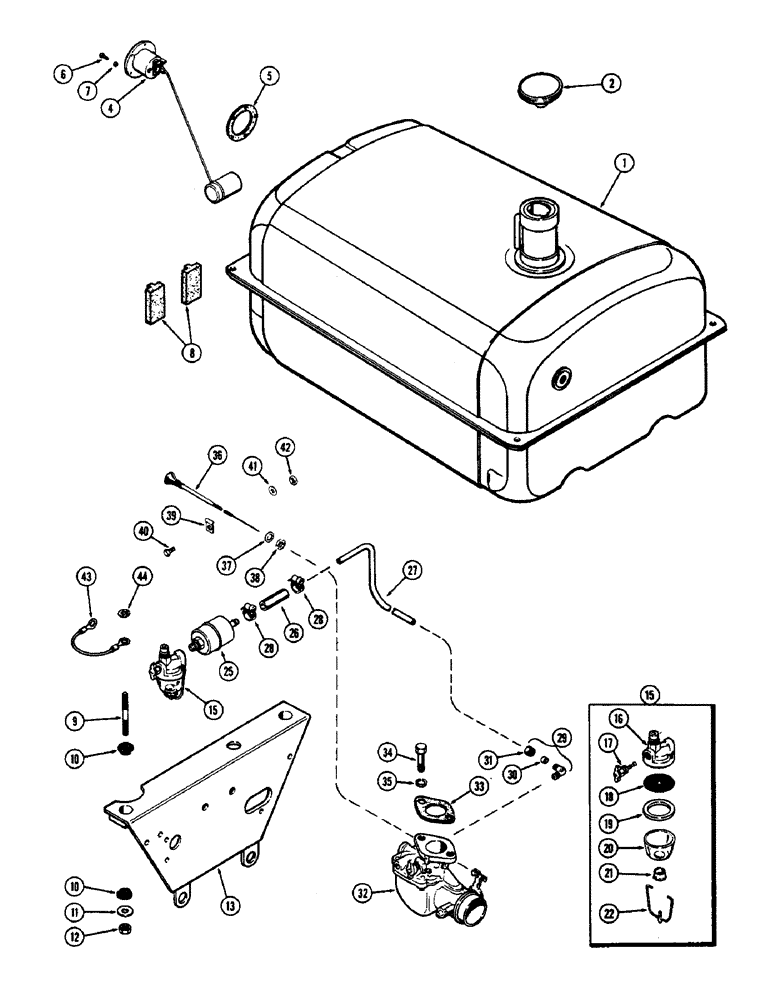

Схема запчастей Case 580B - (078) - FUEL TANK, (188) SPARK IGNITION ENGINE (03) - FUEL SYSTEM
18
17
10
35
12
34
8
29
28
6
37
36
20
41
26
30
32
39
16
13
31
2
40
15
43
25
10
27
11
42
38
28
9
33
15
19
21
5
1
4
22
7
44

Артикул

Название

Примечание

Количество

1

A51552

TANK

- fuel (Replaced A39769)

1шт.

2

A51390

CAP

- fuel tank filler (Replaced A39377)

1шт.

4

A23480

SENDER UNIT

UNIT - sending, fuel tank

1шт.

5

A11822

GASKET

- fuel tank sending unit

1шт.

6

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- machine (#10 x 3/8" N.F. rd. hd.)

5шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

8

A37315

PAD

- fuel tank support, rear

2шт.

9

A37310

STUD

- mounting, fuel tank

4шт.

10

A37311

BUSHING

- fuel tank support

8шт.

11

F62051

WASHER

- fuel mounting stud

4шт.

12

131-352

LOCK NUT,3/8"-16, GA

NUT - (3/8" N.C. hex.) (Gripco)

4шт.

13

A39378

SUPPORT

- front, fuel tank

1шт.

15

A30049

STRAINER ELEMENT

STRAINER ASSY. - fuel, Includes: Ref. 16 - 22

1шт.

16

A11214

HEAD

1шт.

17

A11205

VALVE

- shut-off

1шт.

18

A11211

FILTER SCREEN

SCREEN

1шт.

19

A11208

GASKET

- bowl

1шт.

20

A11209

BOWL

1шт.

21

A11210

ADJUSTER

NUT

1шт.

22

A11212

BAIL

ASSY.

1шт.

25

D53499

FILTER

- fuel

1шт.

26

A39811

HOSE - fuel filter to fuel line

1шт.

27

A51305

TUBE

- fuel tank to filter (Replaced A39810)

1шт.

28

214-103

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

2шт.

29

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSY. - 90 degrees (5/16 tube x 1/8" P.T.), Includes: Ref. 30 and 31

1шт.

30

222-653

SLEEVE,5/16" Tube, Comp

- (For 5/16" tube)

1шт.

31

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - (for 5/16" tube)

1шт.

32

A39568

CARBURETOR

ASSY. - (Zenith) (See Figure 80)

1шт.

33

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

34

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

A38458

CONTROL

- choke

1шт.

37

193-689

WASHER - Shakeproof (3/8" int.)

1шт.

38

86585245

SPECIAL NUT,JAM, 5/8" - 18

- (3/8" N.F. hex., jam)

1шт.

39

A26673

CLIP

- choke cable

1шт.

40

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

42

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

43

A39882

BEARING

WIRE - ground, fuel tank

1шт.

44

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

Выбрано товаров: 40
