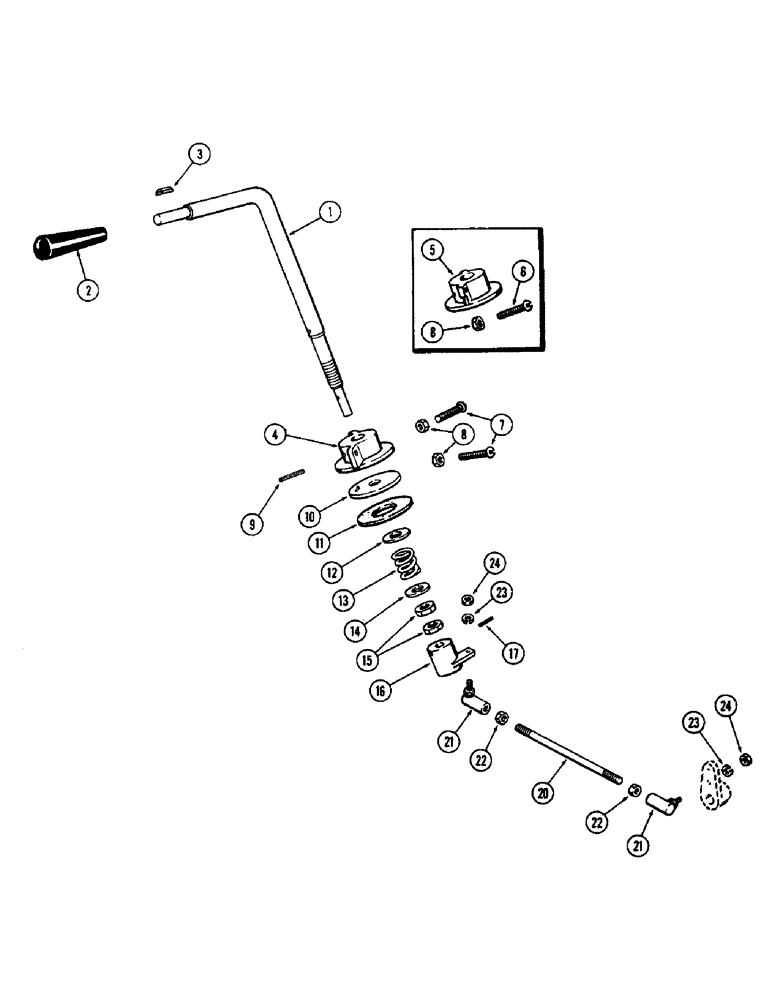

Запчасти Case 580B (074) - UPPER THROTTLE LINKAGE, (188) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A39391

LEVER

- hand, throttle

1шт.

2

A37247

KNOB

- handle, hand throttle

1шт.

3

A51528

OIL SEAL

KING - tolerance tab

1шт.

4

A51511

COLLAR - stop, friction plate (Replaces A38173)

1шт.

5

A38173

STOP

COLLAR - stop, friction plate (Order 1-A51511 & 2-75-424)

1шт.

6

75-432

SCREW

- 1/4 x 2" N.C. rd. hd. mach.

2шт.

7

75-424

SCREW

- 1/4 x 1-1/2" N.C. rd. hd. mach.

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

138-118

LOCK PIN,7/32" x 1 1/2", Slotted

PIN, 7/32" x 1 1/2", Slotted

1шт.

10

A57029

DISC

- throttle plate

1шт.

11

A11969

GASKET

DISC - friction

1шт.

12

A32838

WASHER

- friction disc

1шт.

13

A34113

SPRING

- tension, hand lever

1шт.

14

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 13 ga.

1шт.

15

25-148

JAM NUT,Jam, 1/2"-13, G5

- (1/2" NC hex, jam) (Spring to shaft)

2шт.

16

G1338

LEVER

- throttle shaft

1шт.

17

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , Lever to shaft 5/32" x 1", Slotted

1шт.

20

A35642

ROD

- lever to cross shaft

1шт.

21

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball (1/4")

2шт.

22

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" N.F. hex, jam

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

25-114

NUT,1/4"-28, G5

- (1/4" N.F. hex.)

2шт.
