Запчасти Case 580B (047C) - FUEL INJECTION NOZZLE, (188) DIESEL ENGINE, 1ST USED ENG. SN 2726393, PRIOR ENG SN 2726393 (03) - FUEL SYSTEM

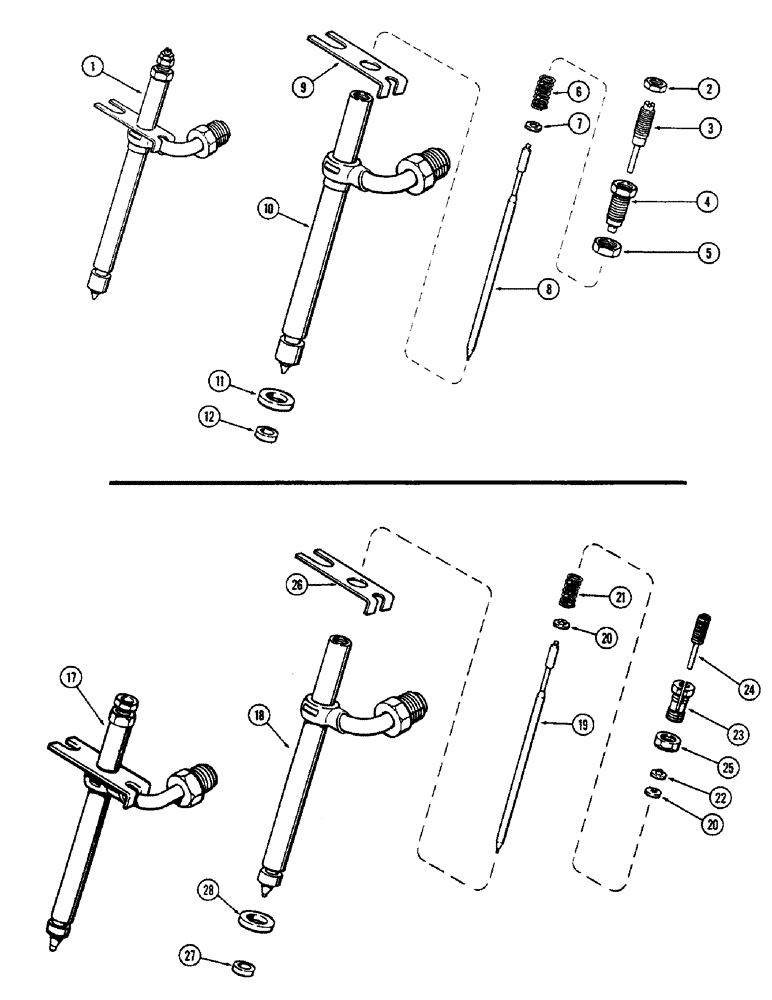

Схема запчастей Case 580B - (047C) - FUEL INJECTION NOZZLE, (188) DIESEL ENGINE, 1ST USED ENG. SN 2726393, PRIOR ENG SN 2726393 (03) - FUEL SYSTEM
21
1
24
6
28
4
23
3
19
22
10
18
7
5
20
8
27
25
17
2
12
20
9
26
11

Артикул

Название

Примечание

Количество

1

A51234

NOZZLE CAP

NOZZLE ASSY. - fuel injection (See Note) (Supplier's #19993 stamped on body), Includes: Ref. 2 - 12

4шт.

A140829R

REMAN-INJECT NOZZLE

580B CASE CONSTRUCTION KING WHEEL TRACTOR W/ HYDROSTATIC TRANSMISSION (1ST USED ENG. SN 2726393) PRIOR ENG SN 2726393, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A43602

NUT

LOCKNUT - lift screw lock

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

5

A42424

LOCK NUT

LOCKNUT - pressure adj. screw

1шт.

6

A43733

SPRING

- pressure (9/16" free length w/red stain)

1шт.

7

A44369

SEAT

- spring

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A51234)

1шт.

9

A43506

PLATE ASSY.

PLATE - nozzle locating

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A51234)

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

17

A37836

NOZZLE

ASSY. - fuel injection (See Note) (Supplier's #18054 stamped on body), Includes: Ref. 18 - 28

4шт.

A140829R

REMAN-INJECT NOZZLE

580B CASE CONSTRUCTION KING WHEEL TRACTOR W/ HYDROSTATIC TRANSMISSION (1ST USED ENG. SN 2726393) PRIOR ENG SN 2726393, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A37836)

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A37836)

1шт.

20

A41401

SEAT

- pressure spring

2шт.

21

A41444

VALVE SPRING

SPRING - pressure (17/32" free length w/green color)

1шт.

22

A41407

WASHER

- ball type

1шт.

23

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

24

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

25

A42424

LOCK NUT

- lock

1шт.

26

A41405

PLATE

- locating, nozzle

1шт.

27

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

28

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

Выбрано товаров: 28
