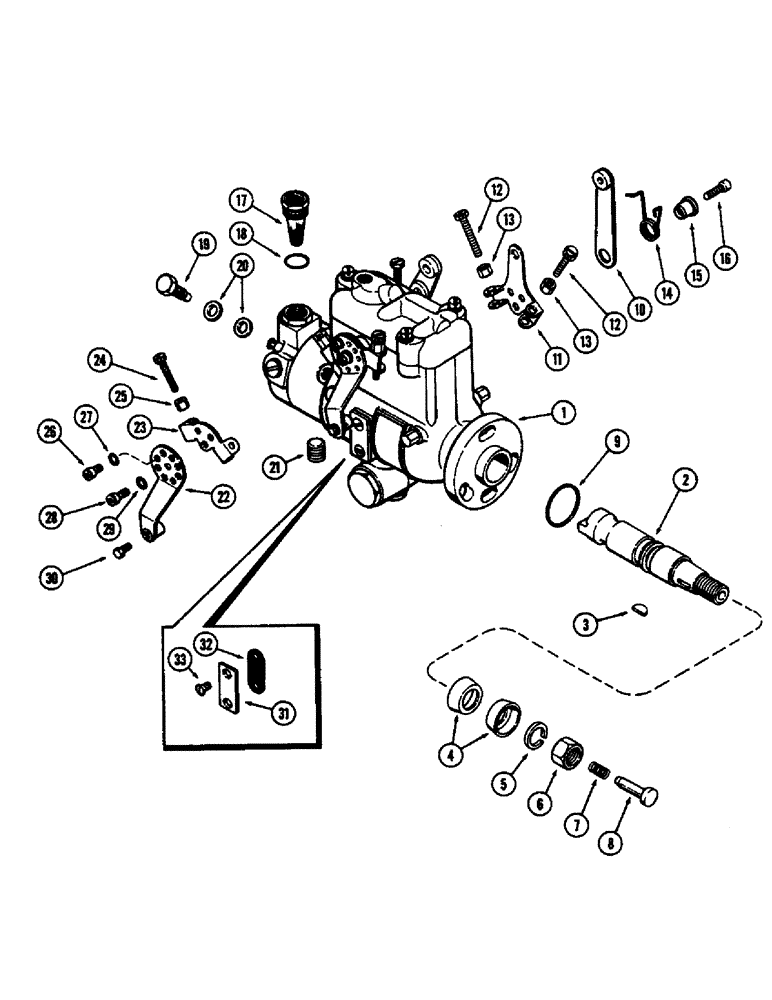

Запчасти Case 580B (047A) - FUEL INJECTION PUMP, (188) DIESEL ENGINE, USED PRIOR TO ENG. SN 2726393 (03) - FUEL SYSTEM

1

A39600

PUMP ASSY. - fuel injection (2100 R.P.M.) (Stanadyne No. DBGFCC431-43AJ), Includes: Ref. 2 - 34

1шт.

2

G47113

SHAFT

- drive

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- drive shaft

2шт.

5

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

6

25-119

NUT,9/16"-18, G5

- 9/16" N.F. hex.

1шт.

7

G48502

SPRING

- thrust

1шт.

8

A44653

PLUNGER

- thrust spring (Replaced G47128)

1шт.

9

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

10

A41431

ARM

- throttle

1шт.

11

NSS

NOT SOLD SEPARAT

LEVER - idle adjust

1шт.

12

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- idle adjusting

2шт.

13

51200274

NUT

- idle screw

2шт.

14

G48505

SPRING

- throttle arm

1шт.

15

G49621

RETAINER

- spring

1шт.

16

G49079

SET SCREW

SCREW - throttle arm

1шт.

17

CAS73671

FILTER, ELEMENT

FILTER - fuel inlet

1шт.

18

51200280

SEAL

- filter

1шт.

19

73613

SCREW

- connector, injection tube

4шт.

20

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

22

G45337

ARM

- fuel shut-off

1шт.

23

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

24

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- shut-off adjusting

1шт.

25

51200274

NUT

- shut-off screw

1шт.

26

73646

SCREW

- shut-off arm to stop arm

1шт.

27

73645

SEALING RING COLLAR

- lock, stop arm screw

1шт.

28

73670

SCREW

- stop, Serial Range: arm-pump

1шт.

29

73630

LOCK WASHER

WASHER - arm mounting, screw

1шт.

30

463-2086

SCREW,Slotted Hex Hd, #8-32 x 3/8"

- clamp, shut-off cable

1шт.

31

G46330

COVER

- timing window

2шт.

32

NLS

NO LONGER SERVICED

- cover

2шт.

33

51200263

SCREW

- cover

4шт.

34

G47128

PLUNGER

- thrust spring (Order A44653)

1шт.
