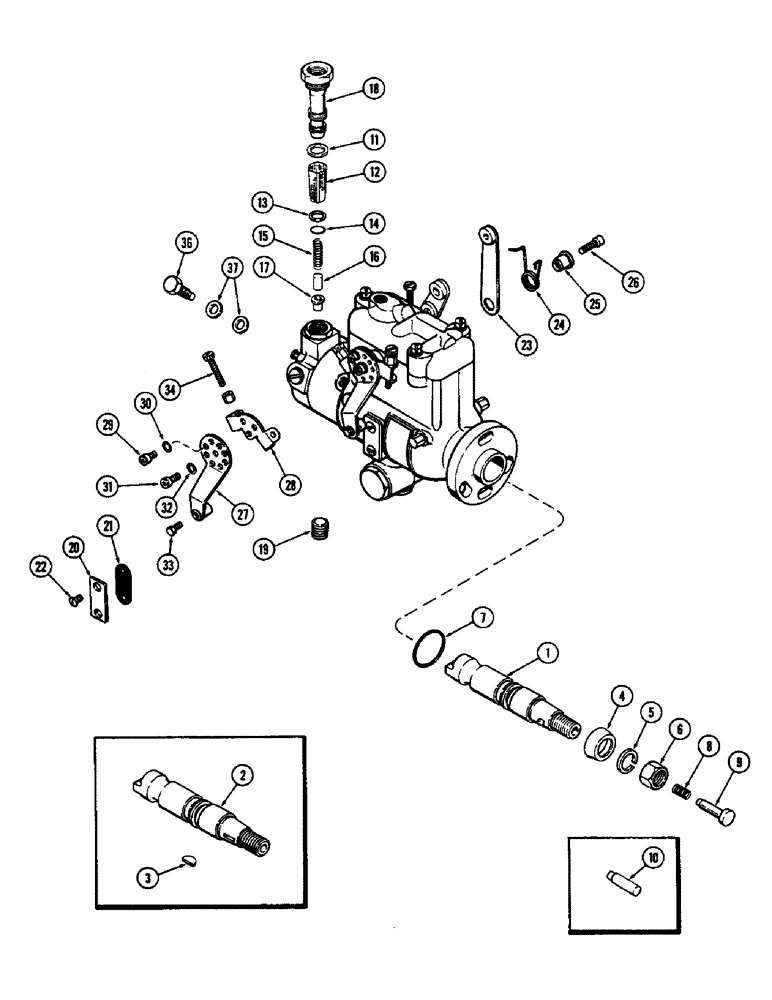

Запчасти Case 580B (046) - FUEL INJECTION PUMP, (188) DIESEL ENGINE, 1ST USED ENG. SN 2726393 (03) - FUEL SYSTEM

A51425

PUMP

ASSY. - fuel injection (2100 R.P.M.) (Stanadyne No. DBGFCC431-46AJ), Includes: Ref. 1 - 37

1шт.

1

A44710

SHAFT

- drive (Incl. pin)

1шт.

2

G47113

SHAFT

- drive (Order A44710)

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

(Use only w/G47113) #6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- drive shaft

1шт.

5

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

6

25-119

NUT,9/16"-18, G5

- (9/16" N.F. hex., jam)

1шт.

7

74224

SEAL - pilot tube

1шт.

8

G48502

SPRING

- thrust, pump drive shaft (1-3/16" free length)

1шт.

9

A44653

PLUNGER

- thrust spring (Replaced G47128)

1шт.

10

G47128

PLUNGER

- thrust spring (Order A44653)

1шт.

11

73666

AIR CLEANER

- end plate sleeve

1шт.

12

A43870

FILTER, FUEL

FILTER - element

1шт.

13

A43871

SEAL

- element (3/8 x 1/2 x 1/16")

1шт.

14

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

15

A43867

SPRING

- regulating (21/32" free length) (One end red & one end green)

1шт.

16

A73621

PISTON

- regulating (Replaced A43866)

1шт.

17

A43868

SEAL

- regulating piston (Rubber)

1шт.

18

A43869

SLEEVE

- end plate filter pilot

1шт.

19

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

20

G46330

COVER

- timing window

1шт.

21

73453

GASKET

- timing window cover

1шт.

22

NLS

NO LONGER SERVICED

- timing window cover

2шт.

23

G45338

ARM

- throttle

1шт.

24

G48505

SPRING

- throttle arm

1шт.

25

G49621

RETAINER

- throttle arm spring

1шт.

26

G49079

SET SCREW

SCREW - throttle arm

1шт.

27

G45337

ARM

- shut-off

1шт.

28

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

29

73646

SCREW

- positioning, shut-off arm

1шт.

30

493-21017

LOCK WASHER,Int Tooth, #8

- lock, positioning screw

1шт.

31

73670

SCREW

- retaining, shut-off arm

1шт.

32

73630

LOCK WASHER

WASHER - shut-off arm retaining screw

1шт.

33

73667

IGNITION SWITCH

- pivot

1шт.

34

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle (#10-32 x 1-3/4" sltd. hd.)

1шт.

36

73613

SCREW

- fuel line connector

4шт.

37

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw (3/8 x 1/2 x 1/16")

8шт.
