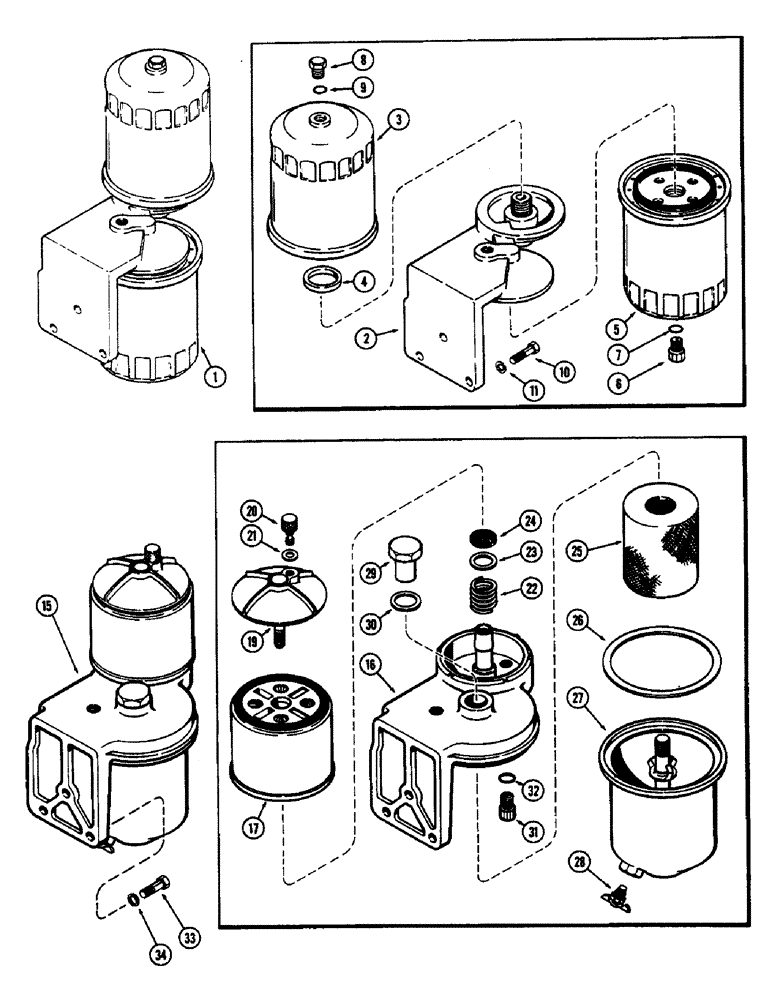

Запчасти Case 580B (044) - FUEL FILTERS, (188) DIESEL ENGINE, SPIN-ON TYPE, 1ST USED ENG SN 2718490 CAN TYPE PRIOR SN 2718490 (03) - FUEL SYSTEM

1

A51739

FILTER

ASSY. - fuel (Replaced A39865), Includes: Ref. 2 - 9

1шт.

2

A51738

CYLINDER HEAD

HEAD - fuel filter (Replaced A39866)

1шт.

3

A39867

FUEL FILTER

- fuel (Secondary), Includes: Ref. 4

1шт.

4

A42315

GASKET

- second stage fuel filter

1шт.

5

A39868

FUEL FILTER

- fuel (Primary)

1шт.

6

G49080

PLUG

- filter drain

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, repl. A27891 & A28090

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

10

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

11

92-5

LOCK WASHER,5/16"

3шт.

15

A35735

FILTER

ASSY. - fuel, Includes: Ref. 16 - 32

1шт.

16

A35664

HEAD

- mounting

1шт.

17

A51346

FILTER

- element, final (Replaced A39109 & A39937)

1шт.

19

A35672

CAP

- final filter, Includes: Ref. 20 and 21

1шт.

20

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder

1шт.

21

NLS

NO LONGER SERVICED

GASKET - bleeder valve

1шт.

22

A35669

SPRING

- final filter

1шт.

23

A35670

WASHER

- final filter

1шт.

24

A35671

GASKET

- rubber, final filter

1шт.

25

A35863

FILTER, ELEMENT

ELEMENT - primary filter, Includes: Ref. 26

1шт.

26

A28056

GASKET

- filter body

1шт.

27

A37099

FUEL FILTER

BODY - primary filter

1шт.

28

217-102

PLUG, DRAIN

DRAIN VALVE

1шт.

29

A21131

NUT

- primary filter body

1шт.

30

A28055

GASKET

-, Serial Range: nut-head

1шт.

31

G49080

PLUG

- drain

1шт.

32

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - 3/8 x 9/16 x 3/32"

1шт.

33

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

34

92-5

LOCK WASHER,5/16"

3шт.
