(042) - FUEL INJECTION PUMP AND DRIVE, (188) DIESEL ENGINE

Запчасти Case 580B (042) - FUEL INJECTION PUMP AND DRIVE, (188) DIESEL ENGINE (03) - FUEL SYSTEM

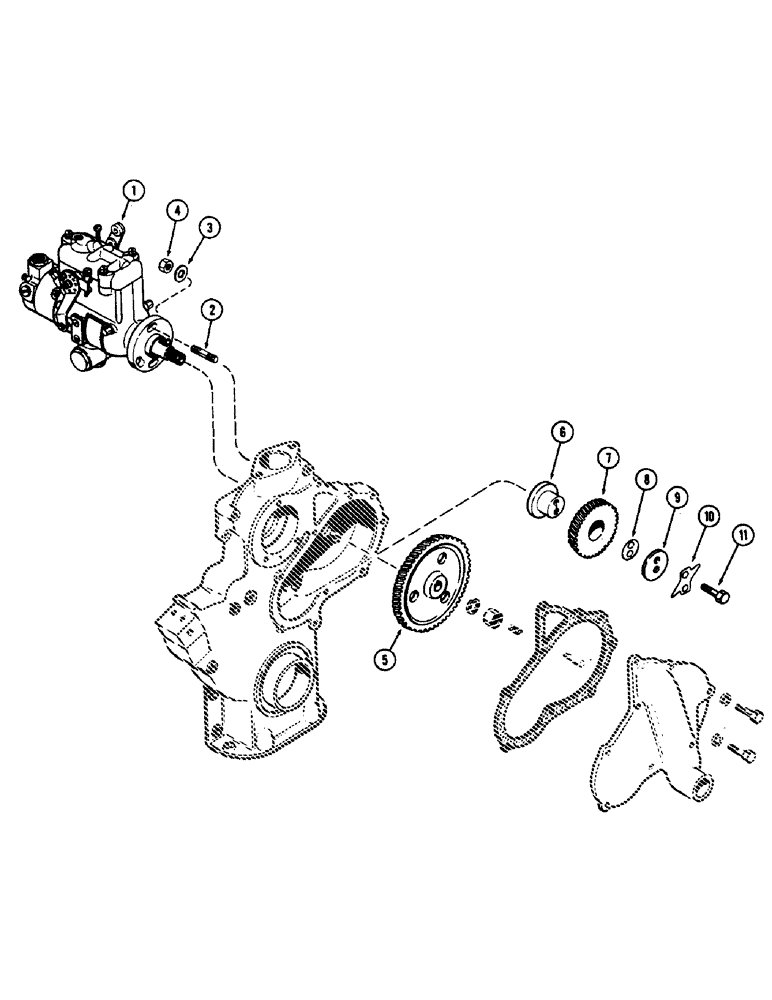

Схема запчастей Case 580B - (042) - FUEL INJECTION PUMP AND DRIVE, (188) DIESEL ENGINE (03) - FUEL SYSTEM
3
10
11
9
2
8
4
7
1
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A51425

PUMP

- fuel injection (1st Used eng. ser. No. 2726393) (See Figure 46)

1шт.

1

A39600

PUMP - fuel injection (Used Prior to Eng. Ser. No. 2726393) (See Figure 47A)

1шт.

2

G11204

STUD

- 3/8" N.C. x 1-7/16"

3шт.

3

A30043

WASHER

- pump mounting stud

3шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

5

G2076

GEAR

- drive, injection pump

1шт.

6

G11726

HUB

- idler gear, pump drive

1шт.

7

G11852

GEAR

- idler (Includes bushing)

1шт.

8

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

8

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

8

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

8

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

9

G11732

PLATE

- thrust, idler gear

1шт.

10

G11746

PLATE

- lock, idler gear

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
