Запчасти Case 580B (040) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE (03) - FUEL SYSTEM

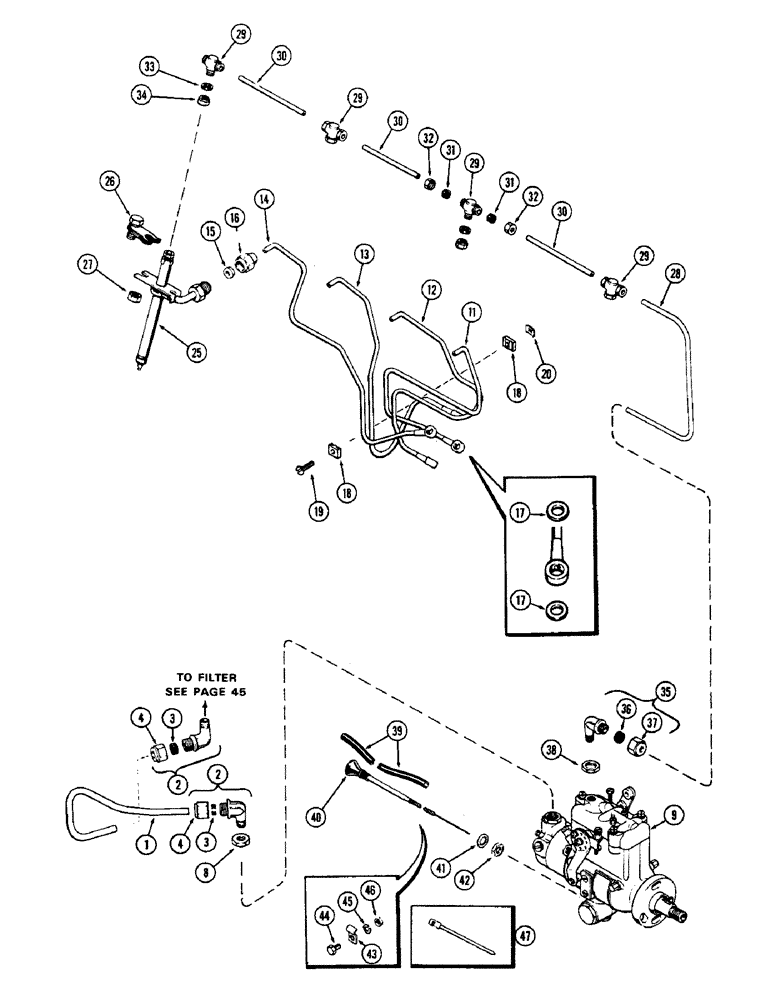

Схема запчастей Case 580B - (040) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE (03) - FUEL SYSTEM
36
39
29
37
3
30
34
14
13
32
30
45
44
8
35
4
17
20
18
42
40
31
28
16
15
33
19
12
18
25
27
29
43
32
46
41
11
30
1
29
4
29
26
31
47
38
2
2
3
9
17

Артикул

Название

Примечание

Количество

1

A51784

TUBE

LINE - fuel, filter to pump (Includes two cap plugs)

1шт.

2

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" P.T., Includes: Ref. 3 and 4

2шт.

3

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

4

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

8

A38161

LOCK NUT

-, Serial Range: elbow-pump

1шт.

9

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figures 46 & 47A)

1шт.

11

A41391

TUBE

ASSY. - pump to #1 injector, Includes: Ref. 15 - 17

1шт.

12

A41392

TUBE

ASSY. - pump to #2 injector, Includes: Ref. 15 - 17

1шт.

13

A41393

TUBE

ASSY. - pump to #3 injector, Includes: Ref. 15 - 17

1шт.

14

A41394

TUBE

ASSY. - pump to #4 injector, Includes: Ref. 15 - 17

1шт.

Not illustrated properly the part pictured is A35061 see 310G crawler Fig. 40 for illustration of all tubes if customer requires tube which looks like picture.

1шт.

15

A37850

PIPE FITTING

SLEEVE - tube

1шт.

16

A37851

NUT

- tube

1шт.

17

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - screw connector

2шт.

18

A58709

BRACKET

CLAMP - injection tubes

4шт.

19

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

BOLT - #10-24 x 1" rd. hd.

2шт.

20

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10-24 Tinnerman

2шт.

25

REF

INSTRUCTION

NOZZLE ASSY. - fuel injection (See Figure 47C)

4шт.

26

A37837

CLAMP

ASSY. - injection nozzle

4шт.

27

A37839

SPACER

- nozzle clamp

4шт.

28

A51658

TUBE

- leak-off, pump to tee (Replaced A38158)

1шт.

29

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off

4шт.

30

A38644

TUBE

- leak-off

3шт.

31

222-102

SLEEVE,1/4" Tube

8шт.

32

2220112

NUT - for 1/4" tube

8шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- nozzle cap, rubber

4шт.

34

A58961

NUT

- nozzle

4шт.

35

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - pump to leak-off, Includes: Ref. 36 and 37

1шт.

36

222-102

SLEEVE,1/4" Tube

1шт.

37

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

38

A38160

LOCK NUT

-, Serial Range: elbow-pump

1шт.

39

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Fuel shut-off 0.25" ID x 15.00", SAE SC716 CS

2шт.

40

A38454

CONTROL LEVER

CONTROL - fuel shut-off

1шт.

41

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

42

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" N.F. hex., jam

1шт.

43

A26673

CLIP

- cable retaining

1шт.

44

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

45

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

46

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

47

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - fuel shut-off cable to steering tube (Replaced items 43, 44, 45 & 46)

1шт.

Выбрано товаров: 40
