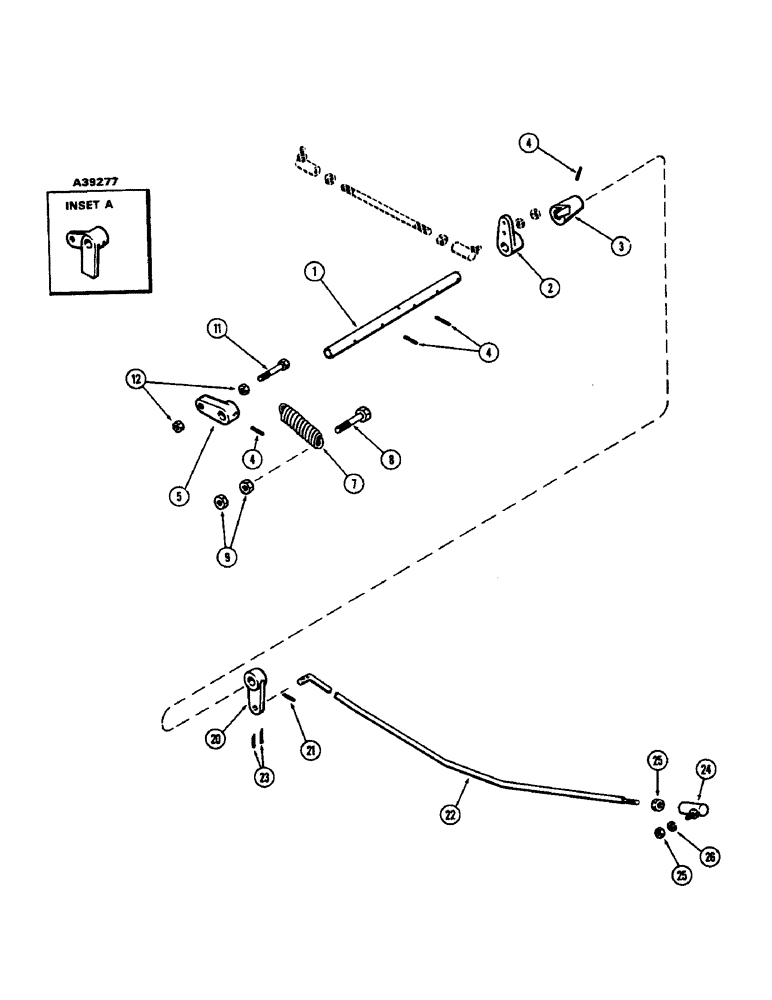

Запчасти Case 580B (036) - LOWER THROTTLE LINKAGE, (188) DIESEL ENGINE (03) - FUEL SYSTEM

1

A37264

SHAFT

- cross, throttle control

1шт.

1

A185091

SHAFT

- cross, throttle control

1шт.

2

A35638

LEVER

- cross shaft

1шт.

3

A35639

LEVER

- override

1шт.

4

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

4шт.

5

A51115

LEVER

- throttle stop (Replaced A39277, See Inset A)

1шт.

7

B18277

SPRING

- throttle return

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

2шт.

11

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

1шт.

12

25-146

JAM NUT,Jam, 3/8"-16, G5

- 1/4" N.C. hex., jam

2шт.

20

A37270

LEVER

- throttle rod

1шт.

21

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

22

A51327

ROD

- cross shaft to fuel pump (Replaced A39278)

1шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

24

A10329

BALL JOINT,1/4" - 28 x 1"

- rod connecting

1шт.

25

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
