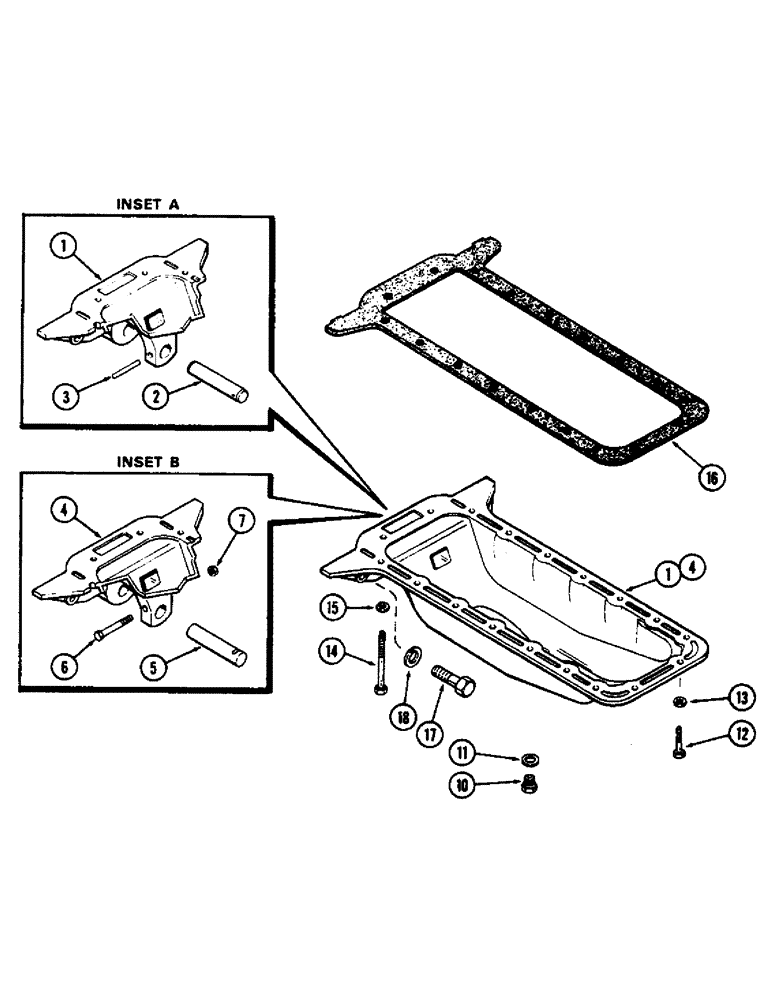

Запчасти Case 580B (069A) - OIL PAN, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

A38425

PAN

- oil (Used with A51536 radius rod rear pivot pin & 135-361 groove pin) (See inset A) (Order 1-A51539 oil pan, 1-A51537 pivot pin, 1-26-544 & bolt & 1-131-351 nut)

1шт.

2

A51356

PIN

- radius rod rear pivot

1шт.

3

135-361

GROOVED PIN,1/4" x 2", Type F

Pin, Grooved, 1/4" x 2", Type F

1шт.

4

A51539

PAN

- oil (Used with A51537 pivot pin, 26-544 bolt & 131-351 nut) (See inset B)

1шт.

5

A51537

PIN

- radius rod rear pivot

1шт.

6

62-544

BOLT,Hex Skt, 5/16" - 24 x 2 3/4"

- (5/16 x 2-3/4" N.C. hex.)

1шт.

7

131-351

LOCK NUT,5/16"-18, GA

NUT - lock (5/16" N.C. hex.)

1шт.

10

A14280

PLUG

- oil pan drain

1шт.

11

A58608

GASKET

- oil pan drain plug

1шт.

12

113-137

X

BOLT - (5/16 x 1-3/4" N.C. hex.)

14шт.

12

113-126

BOLT

- (5/16 x 1" N.C. hex.)

2шт.

13

193-83

LOCK WASHER,Int Tooth, 5/16"

WASHER - lock (5/16" int. teeth Shakeproof)

16шт.

14

113-135

BOLT

- (5/16 x 4" N.C. hex.)

2шт.

15

195-1019

WASHER

- (3/4" flat brass)

2шт.

16

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43064)

1шт.

17

113-663

BOLT (SPREADER)

BOLT - (5/8 x 2-1/4" N.C. hex.)

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
